Connect the Hydraulic Hoses
Hydraulic Hoses provide Hydraulic Fluid to the Hydraulic Cylinders, where it is used to raise the
Platforms.
The Short Hydraulic Hose, and the two Hydraulic Fittings that go on either end of it,
come installed from the factory.
Note: The drawings in this section show the Power Unit Stand on the Left side of the Lift. If you
installed it on the Right side of the Lift, modify the instructions to fit your configuration. See
Select the Power Unit Stand Location for more information.

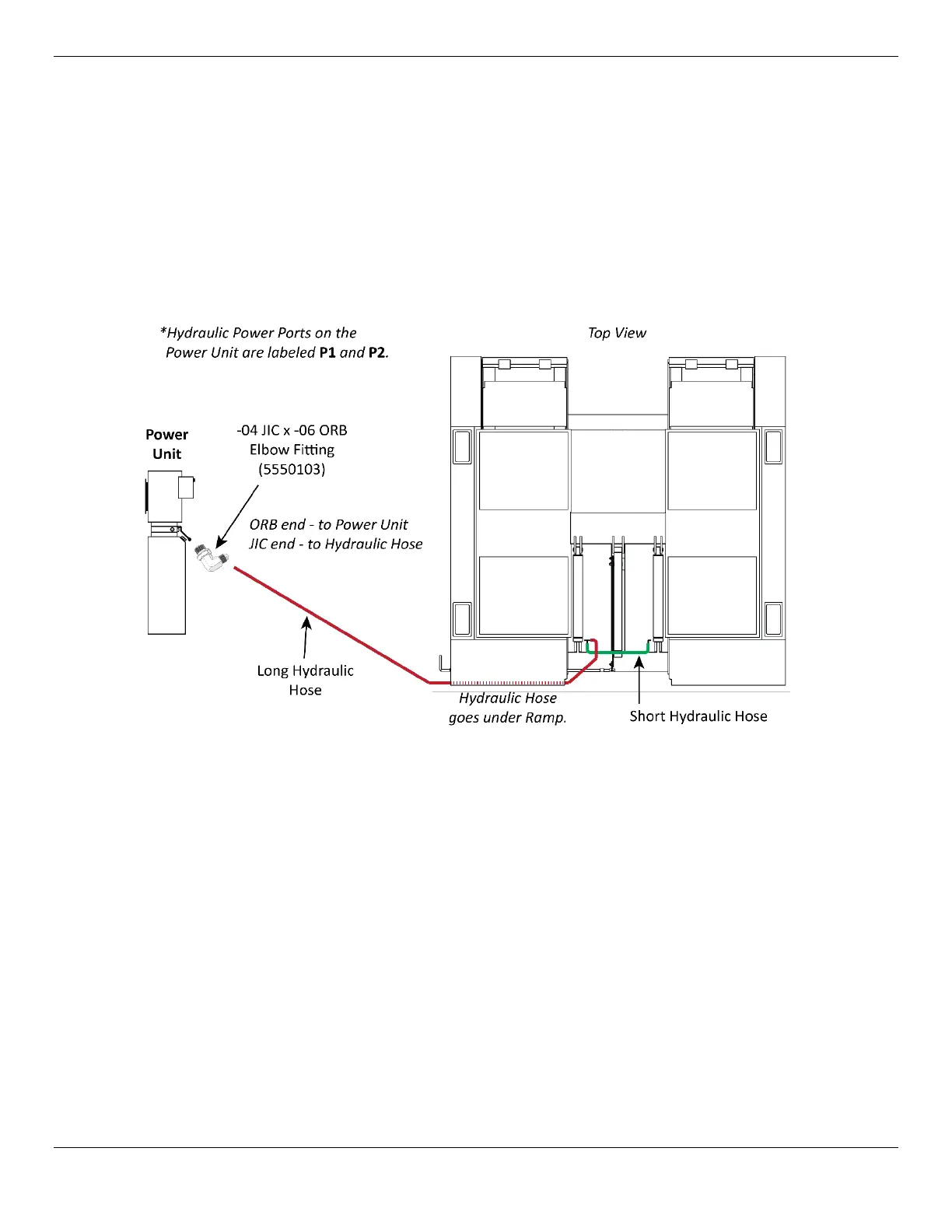

The following drawing show how to route the Hydraulic Hoses to the Hydraulic Cylinders.
Power Unit shown on the left of the Lift (looking at the Short Ramp end). Drawing not necessarily to
scale. Some components not shown, other components exaggerated for clarity.
To connect the Hydraulic Hoses:
1. Locate the Long Hydraulic Hose and the Elbow Hydraulic Fitting (5550103).
2.
Starting at the Power Unit
, remove the Shipping Plug from one of the two Hydraulic Power
Ports on the Power Unit. It does not matter which one you use; they are labeled P1 and P2.
The Hydraulic Power Ports are shown in the drawing in Preparing the Power Unit.
3. Attach the Elbow Hydraulic Fitting (5550103) to the Hydraulic Power Port you want to use.
The ORB end goes to the Power Unit, the JIC end to the Long Hydraulic Hose.
4.
Switching to the Long Hydraulic Hose
, attach the straight end of the Long Hydraulic Hose
to the Elbow Hydraulic Fitting on the Power Unit; finger tighten the connection.
5. Route the Long Hydraulic Hose under the Short Ramp, as shown in the drawing above.
