STEP 5
(Installing The Out Rigger Tubes)

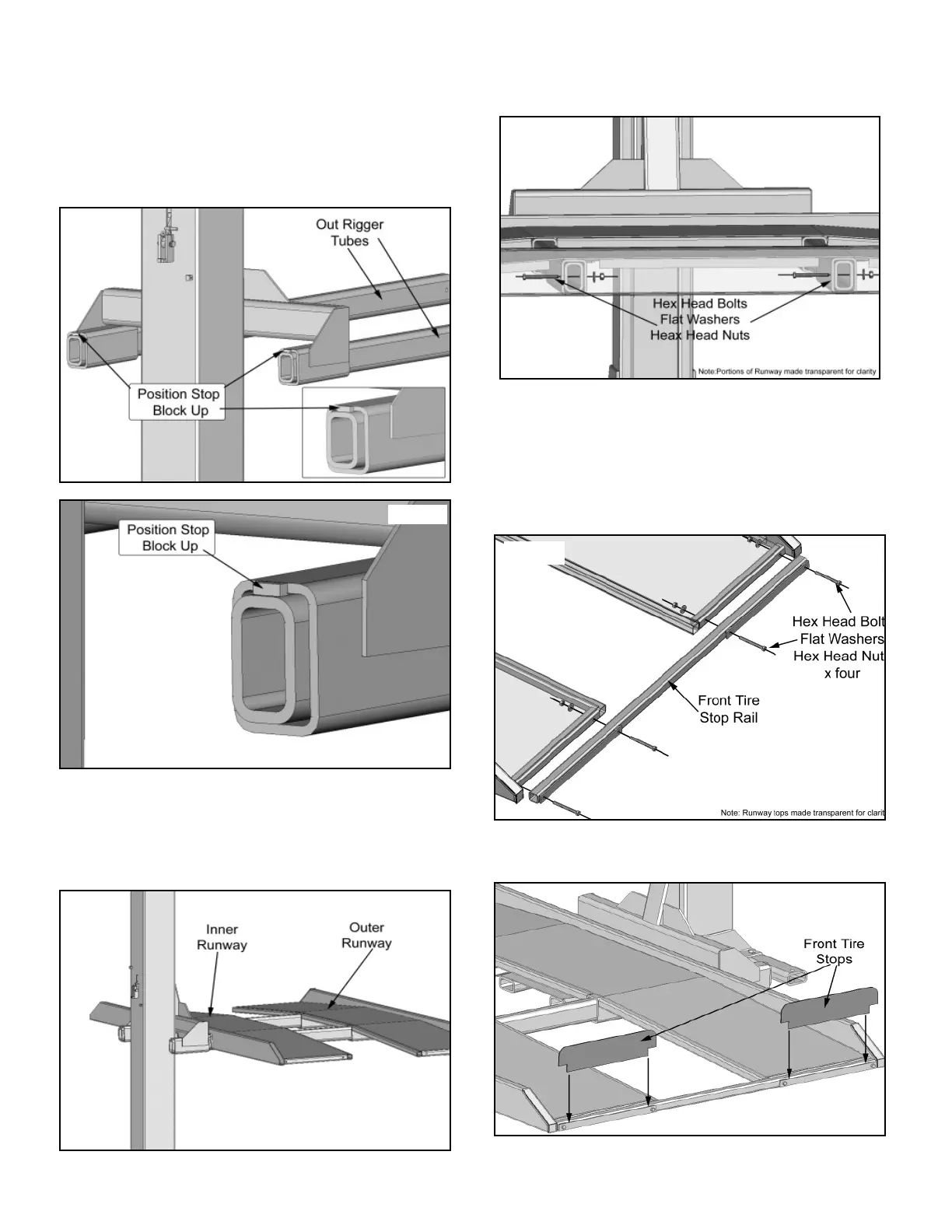

1. Install the two Out Rigger Tubes by inserting the ends
though the back side of the receiver tube. ENSURE the
Stop Block welded to the end of the Out Rigger Tubes are
positioned UP. (See Fig. 5.1 - 5.2)
STEP 6
( Installing The Inner and Outer Runways )
1. Install the Inner & Outer Runways over the ends of the
Out Rigger Tubes. (See Fig. 6.1)
2. Secure Outer Runway to the Out Rigger Tubes using
the 12mm x 1.75 x 130mm hex bolts, nuts and washers.
(See Fig. 6.2)
STEP 7
(Installing The Front Tire Stop Rail
and Rear Approach Ramp Rail)
1. Bolt on the Front Tire Stop Rail with the spacers facing
towards the lift. (See Fig. 7.1)
2. Install the Front Tire Stops as shown. They simply drop
into place for easy removal. (See Fig. 7.2)
11
Fig. 6.1
Fig. 5.2
Fig. 5.1
Fig. 6.2
Fig. 7.1
Fig. 7.2
