30
DIMENSIONS ARE IN MM
☺
8
12
7
13
14
4
9
10
5
17
2
1
3
15
16
11
6
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5245003
03/18/2009
AC
00272
B
B-001
UPDATED BOM REVISIONS, CHANGED NAME
FROM "PL-6000SP" TO "PL-6000"
ADDED DIMENSION LAYOUT SHEET
05/28/2009
07/17/2009
TM
AC
00280
00289
C
UPDATED BOM REVISIONS
08/28/2009
AC
00295
NEXT ASSEMBLY
5260302
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5215012
PL-6000 POST ASSEMBLY
1
C
2 5766001
PL-6000/6000X LEG
2
D
3 5766125
PL-6 REAR LEG
1
C
4 5215011
PL-6000 SERIES LIFT HEAD ASSEMBLY
1
C
5 5600475
PL-6000 SERIES OUTRIGGER TUBE WELDMENT
2
B
6 5600270
PL-6000 SERIES INNER RAMP WELDMENT
1
A
7 5600459
PL-6000 SERIES OUTER RAMP WELDMENT
1
A
8 5766035
PL-6000 SERIES DRIVE UP RAMP / STOP TUBE
1
A
9 700119
CYLINDER ASSEMBLY Ø3.0 x 37
1
C
10 5210034
CHAIN ROLLER ASSEMBLY
1
B
11 5510501
PL-6000 LIFT HEAD CHAIN
1
C
12 5600894
PL-6000 DRIVE UP RAMP WELDMENT
1
B
13 5600896
PL-6000 SERIES CENTER CLOSEOUT
1
B
14 5600895
PL-6000 SERIES FRONT AND REAR CLOSEOUT
2
B
15 5700061
PL-6 GROUND PLATE
1
A
16 5600086
PL-6 SERIES POWER UNIT STAND
1
B
17 5700115
COVER PLATE
1
B
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
AC

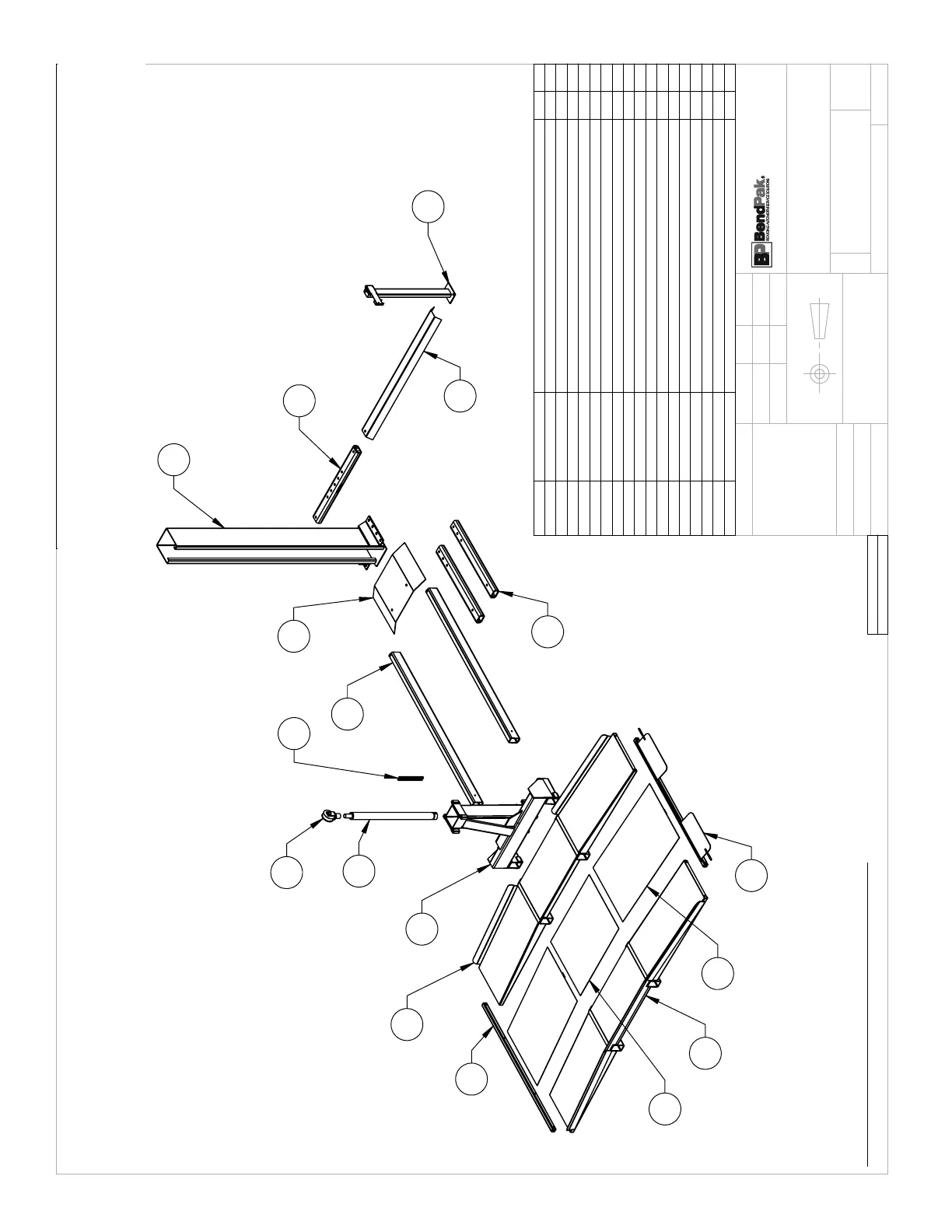

5245035
PL-6000 LIFT
SUPERSTRUCTURE
---
---
03/17/2009
DO NOT SCALE DRAWING
1:50
SCALE:
THIRD ANGLE PROJECTION
TM
09/29/2009
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
