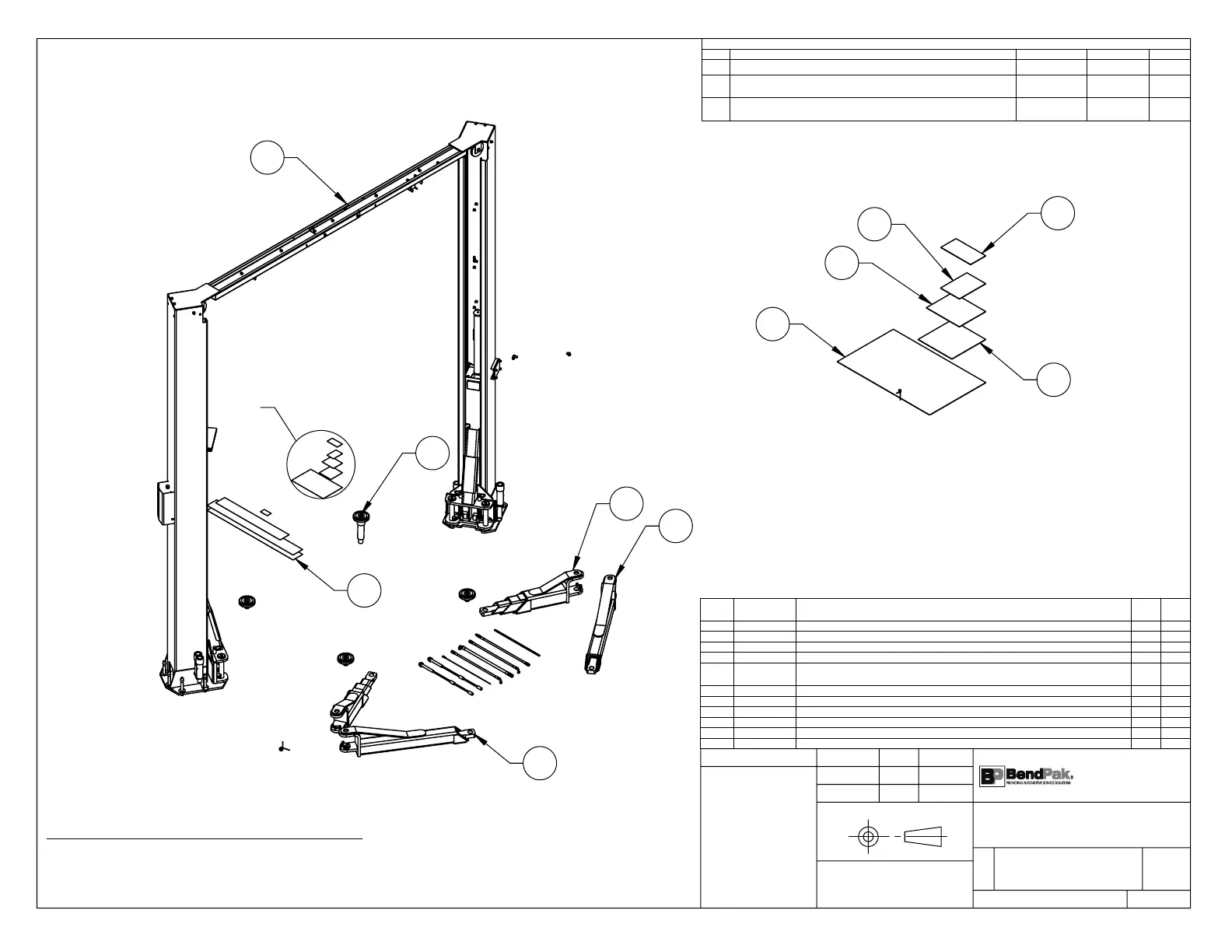

BendPak XPR-10A Service Manual

DIMENSIONS ARE IN MM
☺
A
5
1
3
4
2
7
DETAIL A
SCALE 1 : 12
10
11
8
9
6
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5245044 XPR-7A/10A LIFT SUPERSTRUCTURE 1 C
2 5250003 XPR-10A PARTS BOX 1 B
3 5210369 XPR-7A/10A LOW PROFILE LONG ARM ASSEMBLY, R.H. 1 C
4 5210171 XPR-7A/10A LOW PROFILE LONG ARM ASSEMBLY, L.H. 1 J
5 5210170
XPR-7A/10A LOW PROFILE TRIPLE TELESCOPING ARM
ASSEMBLY
2 K
6 5905109 WARNING ALI/WL 101 1 -
7 5905131 2 POST DECAL KIT, LESS ALI 1 B
8 5905403 MAX CAP DANGER 10K 1 -
9 5905465 MANUFACTURER LABEL 1 -
10 5905940 PRODUCT DATA LABEL 1 -
11 5930630 XPR-10A SERIAL TAG 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5260455 10/08/2014 TM 00663
B
REPLACED 5250056 WITH 5250003, UPDATED
BOM REVISIONS
11/24/2014 TM 00673
C
ADDED 5905109, 5905131, 5905403, 5905465,
5905940, 5930630, UPDATED BOM REVISIONS
05/15/2015 TM 00689
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260088
XPR-10A PRODUCTION
LIFT VER E
10/08/2014
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
ALL LABELS TO BE APPLIED TO POSTS AFTER PAINTING. 2.
SEE ATTACHED LABEL PLACEMENT SHEET.
5930630 TO BE ADDED BY REQUEST ONLY 3.
