203
1 2
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
REV
1 5570129
Ø6.4 ID HYDRAULIC HOSE
137mm*
--
2 5550325
FTG NPL Ø1/4 CRIMP x -04 JIC
2
--
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5570176
10/07/2014
TM
00663
B
REPLACED 5570110 WITH 5570129 TO REFLECT
INVENTORY
11/21/2014
TM
00673
NEXT ASSEMBLY
5240806
5250003
5250004
5250006
5250027
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5570065

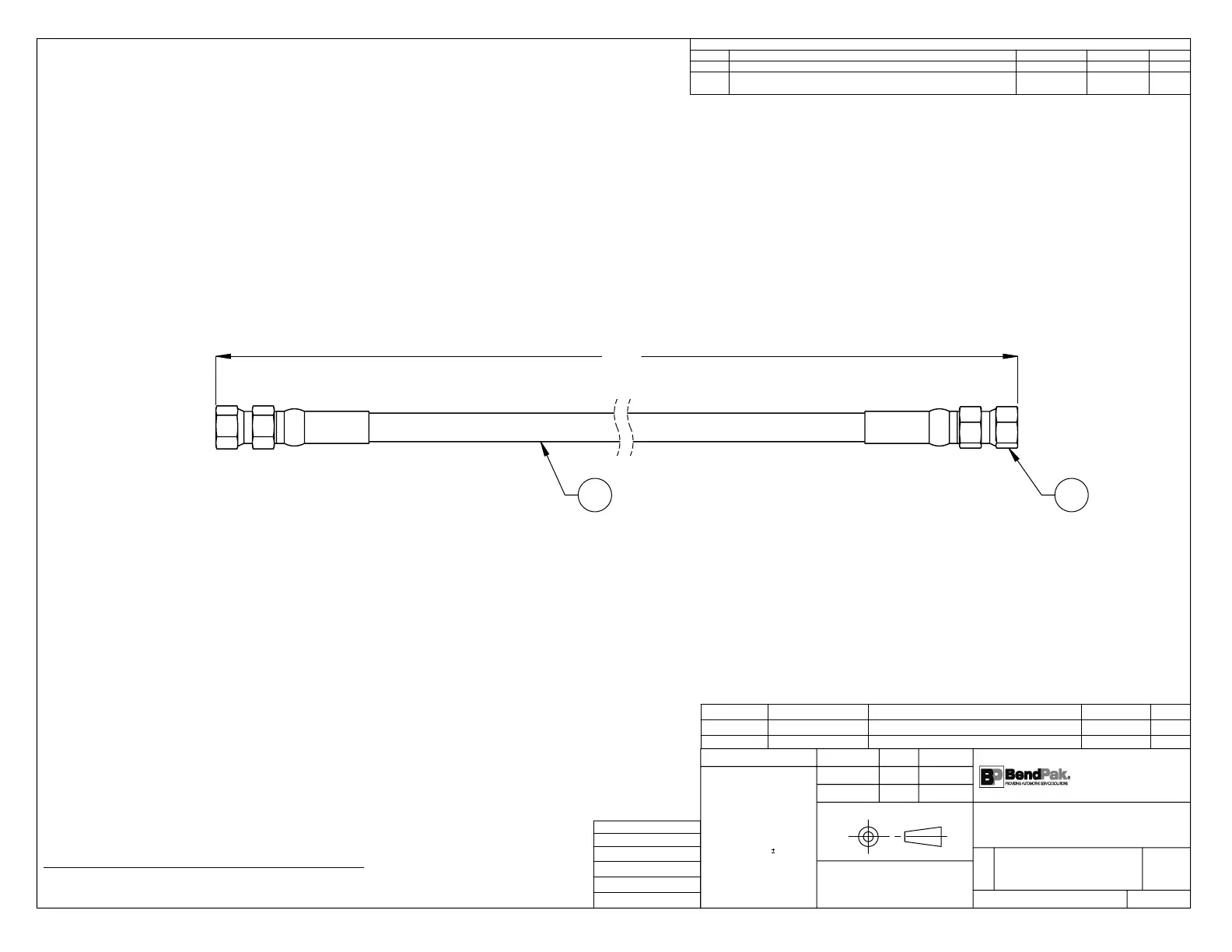

XPR-7A/10A HYDRAULIC
HOSE EXTENSION ASSY Ø6.35
x 203mm DS
10/07/2014
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
VB
12/22/2014
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
ANGULAR: MACH
2
°
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
(*)ITEM 1 QTY FOR REFERENCE ONLY
2.
