20
STEP 13
(Installing Power Unit Hose Assembly
and Powerside Safety Cover)
1. With Powerside Safety Cover loosely positioned route
Power Unit Hydraulic Hose through clips in Powerside
Safety Cover. (See Fig. 13.1)
2. Install the 90* Fitting w/ O-ring into the Power Port
of the Power Unit. Use Teflon Tape on the Pipe Fittings
ONLY. Connect Power Unit Hose Assembly to the 90*
w/O-ring Fitting on Power Unit. (See Fig. 13.2)
3. Connect other end of Power Unit Hydraulic Hose
Assembly to the Bulkhead Fitting. (See Fig. 13.3)
4. After safeties have been adjusted and checked for
proper operation, install and Tighten Powerside Safety
Cover and Offside Safety Cover mounting bolts.
(See Fig. 13.4 and 13.5)
20

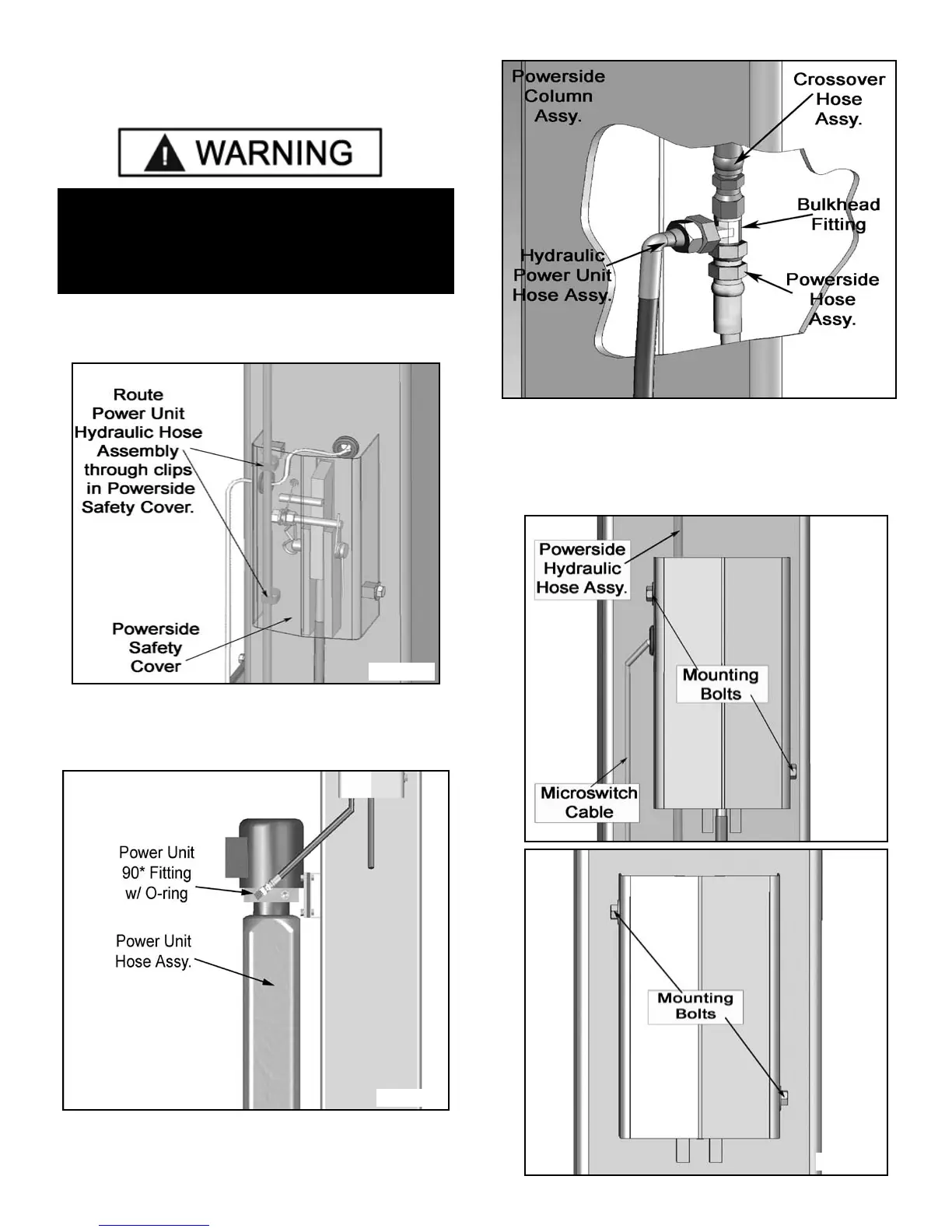

Fig. 13.2
Fig. 13.4
Fig. 13.5
Fig. 13.3
Fig. 13.1
WARNING!
Power Unit Hydraulic Hose Assembly must be
routed through the Clips in Powerside Safety Cover.
Failure to do so can result in personal injury
or damage to the lift.
