31

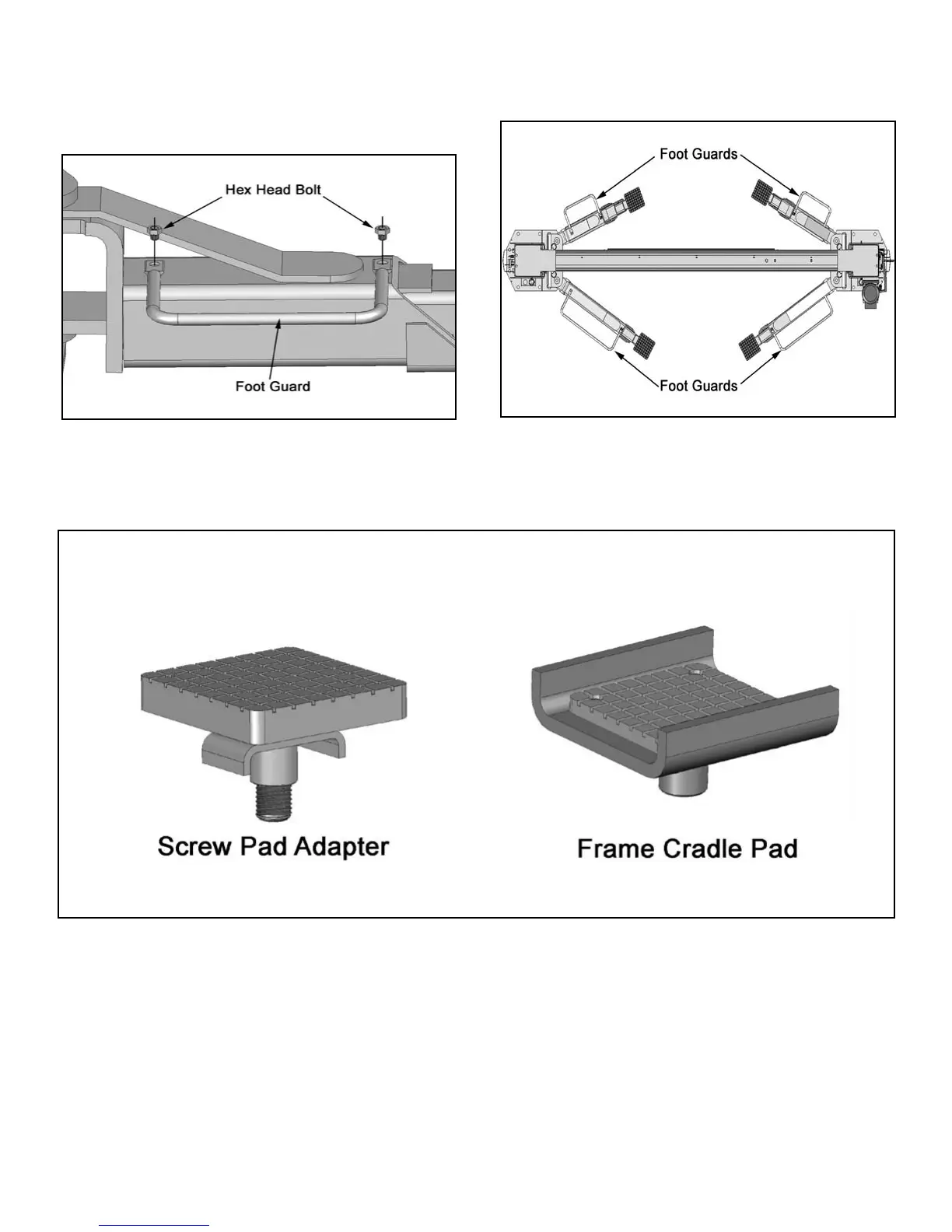

1.
Install the Foot Guards to the outside of the 4 Lift
Arm
Assemblies. T
ighten the Hex Head Bolts. (See Fig 1-2)
OPTIONAL
FOOT GUARD INST
ALLA
TION
OPTIONAL
CRADLE
AND SCREW P
AD
ADAPTERS
Optional Equipment available through your
Authorized BendPak Dealer
.
30
32
Table of Contents
Warranty / Serial Number Information
2
Definitions of Hazard Levels
3
Owner's Responsibility
3
Before You Begin
3
Table of Contents
4
Installer/Operator Agreement/ Protective Equipment
5
Introduction
6
Safety / Warning Instructions
6
Tools Required
7
Step 1 / Selecting Site
7
Step 2 / Floor Requirements
7
Concrete Specifications
7
Assembly View / Description of Parts
8
Step 3 / Column Preparation
9
Step 4 / Site Layout
11
Floor Plan / Specifications /Power Unit Location
12
Step 5 / Installing Powerside Column
13
Step 6 / Installing Offside Column
13
Step 7 / Mounting the Top Trough Assembly
14
Step 8 / Mounting the Hydraulic Power Unit
15
Step 9 / Installing the Safeties and Safety Cable
16
Step 10 / Installing Hydraulic Lines
17
Step 11 / Routing the Equalizer Cables
18
Step 12 / Installing Overhead Microswitch
19
Step 13 / Installing Power Unit Hose Assembly and Powerside Safety Cover
20
Step 14 / Installing the Lift Arms
21
Carriage Stop Bolt Installation Warning
24
Step 15 / Hydraulic Power Unit Hook-Up
25
Step 16 / Lift Start up Final Adjustments
28
Post Installation Checklist
29
Step 17 / Lubrication
29
Step 18 Bleeding
29
Optional Equipment Installation
30
Step 19 / Operation/ Maintenance
32
Troubleshooting Guide
44
Maintenance Records
48
Installation Form
49
Part Number Lists
50
