DIMENSIONS ARE IN MM
☺
1
17
10
12
3
7
5
6
8
19
15
2
13
18
11
9
16
14
20
21
4
22
23
24
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
02/16/2010
TM
00293
B
ADDED 5700400, ADDED 5746167,
REPLACED 5540281 WITH 5540129, UPDATED
BOM REVISION
04/15/2010
TM
00346
NEXT ASSEMBLY
5260138
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5174518
XPR-10/12C/15C/18C PARTS BAG
1
B
2 5505116
MX-10, XPR-9/10 LIFT HEAD PIN WELDMENT
4
A
3 5595012
HD-7P/7PR/XP/XPR-10ACX CABLE ASSEMBLY Ø10 x
9290mm
1
C
4 5595918
HD-9STX/XP/XPR-10ACX CABLE ASSEMBLY Ø10 x 9404mm
1
B
5 5570832
XP/XPR/MX HYDRAULIC HOSE ASSY Ø6.35 x 2299mm SB
1
B
6 5570017
XP/XPR HYDRAULIC HOSE ASSY Ø10 x 1219mm SB
1
A
7 5595047
XP/XPR-10ACX/CX, XPR-7TRF Ø2.4 x 7747 SAFETY CABLE
1
A
8 5570042
XPR-7/10ACX/10CX HYDRAULIC HOSE ASSY Ø6.35 x 8370
SB
1
B
9 5210007
XP/XPR POWER SIDE SAFEY ASSEMBLY
1
A
10 5210010
XP/XPR OFF SIDE SAFETY WELDMENT
1
A
11 5715003
POWER UNIT VIBRATION DAMPENER
1
B
12 5215250
MD-6XP, ALL XP/XPR SLIP ON LIFT PAD ASSEMBLY
4
B
13 5730663
XPR-7TRF, XP/XPR-9/10 POST ASSEMBLY LIFT HEAD FOOT
GUARD R.H.
2
A
14 5730664
XPR-7TRF, XP/XPR-9/10 POST ASSEMBLY LIFT HEAD FOOT
GUARD L.H.
2
A
15 5736171
MX, XPR-9/10 BOLT ON ARM RESTRAINT GEAR
4
B
16 5600163
XPR-7/10/12C/15/18C POWER SIDE SAFETY COVER
1
A
17 5210009
ALL XP, XPR-7/9FD/10/12/12FD/15/18C OFF SIDE SAFETY
COVER
1
A
18 5746390
XP/XPR/RJ/MX/MD-6XP SHORT LIFT PAD EXTENSION
(113mm LG.)
4
A
19 5746395
MX/XP/XPR LONG LIFT PAD EXTENSION (182mm LG.)
4
A
20 5545342
WASHER M18 FLAT
2
-
21 5535358
NUT M18 x 2.5 NL
2
-
22 5540129
E RING Ø38mm OD
4
A
23 5746167
DOUBLE THREADED ROD M10 x 1.5 x 270
2
A
24 5700400
MX/XP/XPR MICROSWITCH COVER PLATE
1
A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5250230

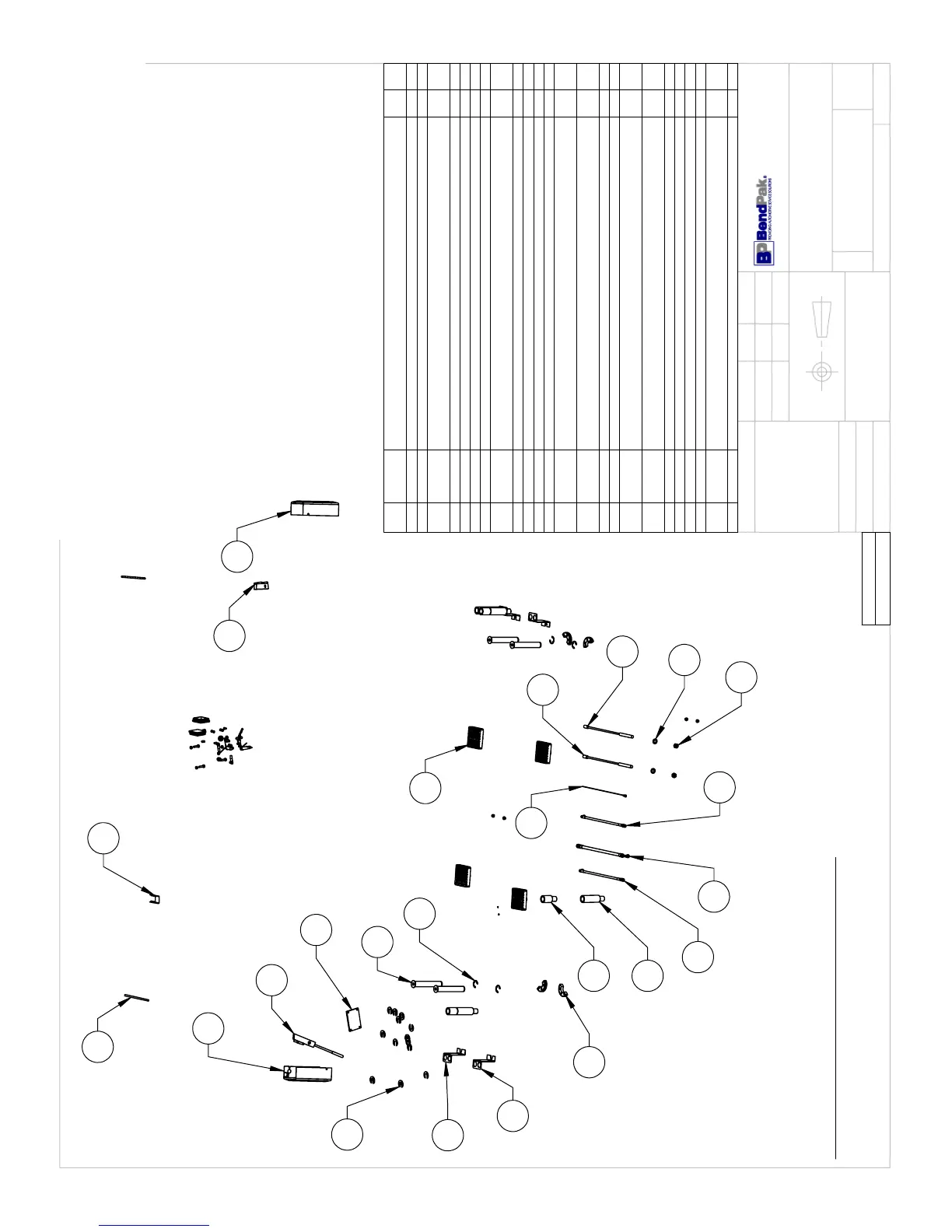

XPR-10ACX PARTS BOX
---
---
02/16/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
AC
04/30/2010
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT
