DIMENSIONS ARE IN MM
☺
1
16
9
11
3
6
4
5
7
18
14
2
12
17
10
8
15
13
19
20
21
22
23
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
02/16/2010
TM
B
ADDED 5700400, ADDED 5746167,
REPLACED 5540281 WITH 5540129, UPDATED
BOM REVISION
04/15/2010
TM
NEXT ASSEMBLY
NO
DESCRIPTION
QTY
REV
1
XPR-10/12C/15C/18C PARTS BAG
1
B
2
MX-10, XPR-9/10 LIFT HEAD PIN WELDMENT
4
A
3
XP/XPR-7/10CX CABLE ASSY Ø10 x 9347mm ST
2
A
4
XP/XPR/MX HYDRAULIC HOSE ASSY Ø6.35 x 2299mm SB
1
B
5
XP/XPR HYDRAULIC HOSE ASSY Ø10 x 1219mm SB
1
A
6
XP/XPR-10ACX/CX, XPR-7TRF Ø2.4 x 7747 SAFETY CABLE
1
A
7
XPR-7/10ACX/10CX HYDRAULIC HOSE ASSY Ø6.35 x 8370
SB
1
B
8
XP/XPR POWER SIDE SAFEY ASSEMBLY
1
A
9
XP/XPR OFF SIDE SAFETY WELDMENT
1
A
10
POWER UNIT VIBRATION DAMPENER
1
B
11
MD-6XP, ALL XP/XPR SLIP ON LIFT PAD ASSEMBLY
4
B
12
XPR-7TRF, XP/XPR-9/10 POST ASSEMBLY LIFT HEAD FOOT
GUARD R.H.
2
A
13
XPR-7TRF, XP/XPR-9/10 POST ASSEMBLY LIFT HEAD FOOT
GUARD L.H.
2
A
14
MX, XPR-9/10 BOLT ON ARM RESTRAINT GEAR
4
B
15
XPR-7/10/12C/15/18C POWER SIDE SAFETY COVER
1
A
16
ALL XP, XPR-7/9FD/10/12/12FD/15/18C OFF SIDE SAFETY
1
A
17
XP/XPR/RJ/MX/MD-6XP SHORT LIFT PAD EXTENSION
(113mm LG.)
4
A
18
MX/XP/XPR LONG LIFT PAD EXTENSION (182mm LG.)
4
A
19
WASHER M18 FLAT
2
-
20
NUT M18 x 2.5 NL
2
-
21
E RING Ø38mm OD
4
A
22
DOUBLE THREADED ROD M10 x 1.5 x 270
2
A
23
MX/XP/XPR MICROSWITCH COVER PLATE
1
A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
NAME
DATE
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM

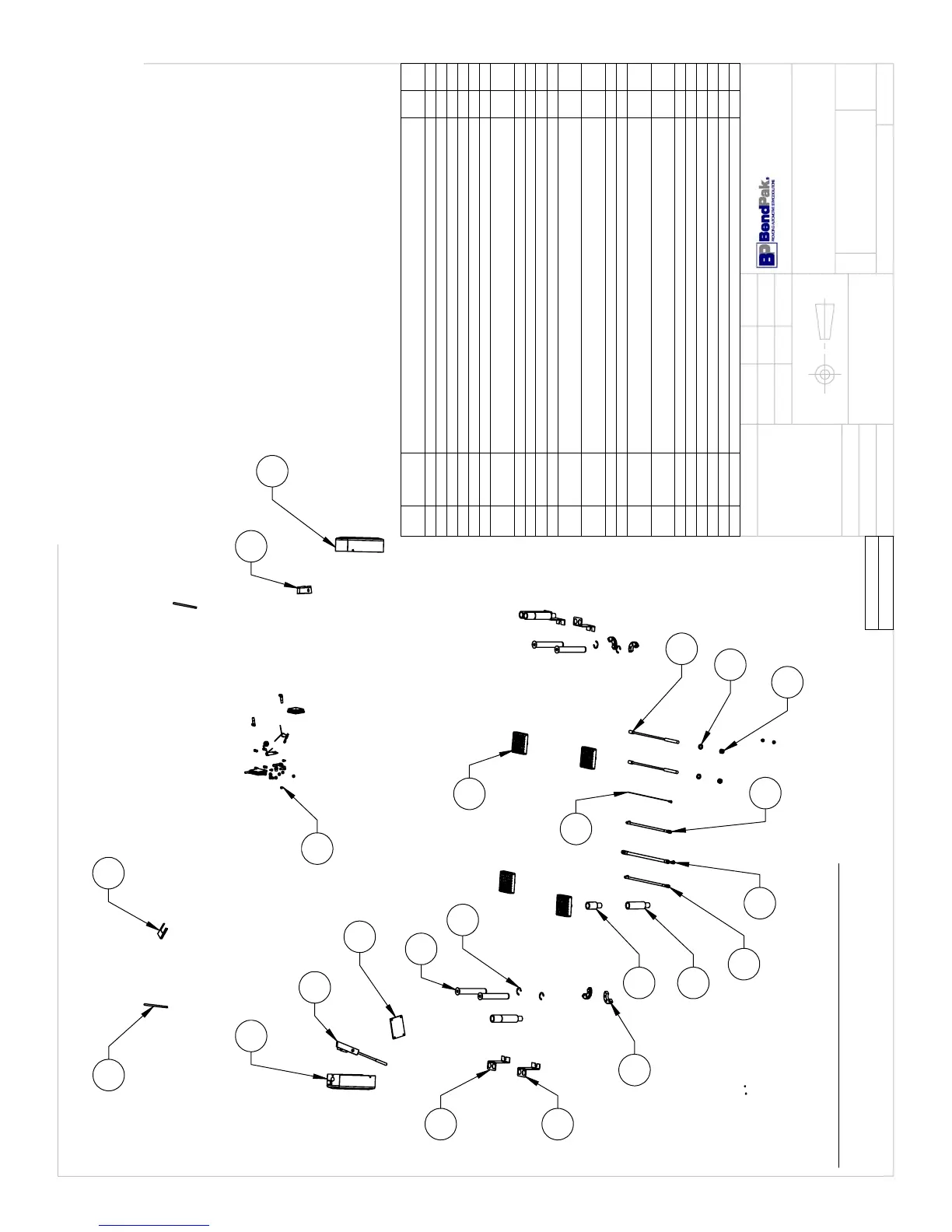

XPR-10CX PARTS BOX
---
---
02/16/2010
DO NOT SCALE DRAWING
1:30
THIRD ANGLE PROJECTION
AC
04/30/2010
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
THREAD 5535358 ONTO CABLES WITH 5545342 FOR SHIPMENT
3.
