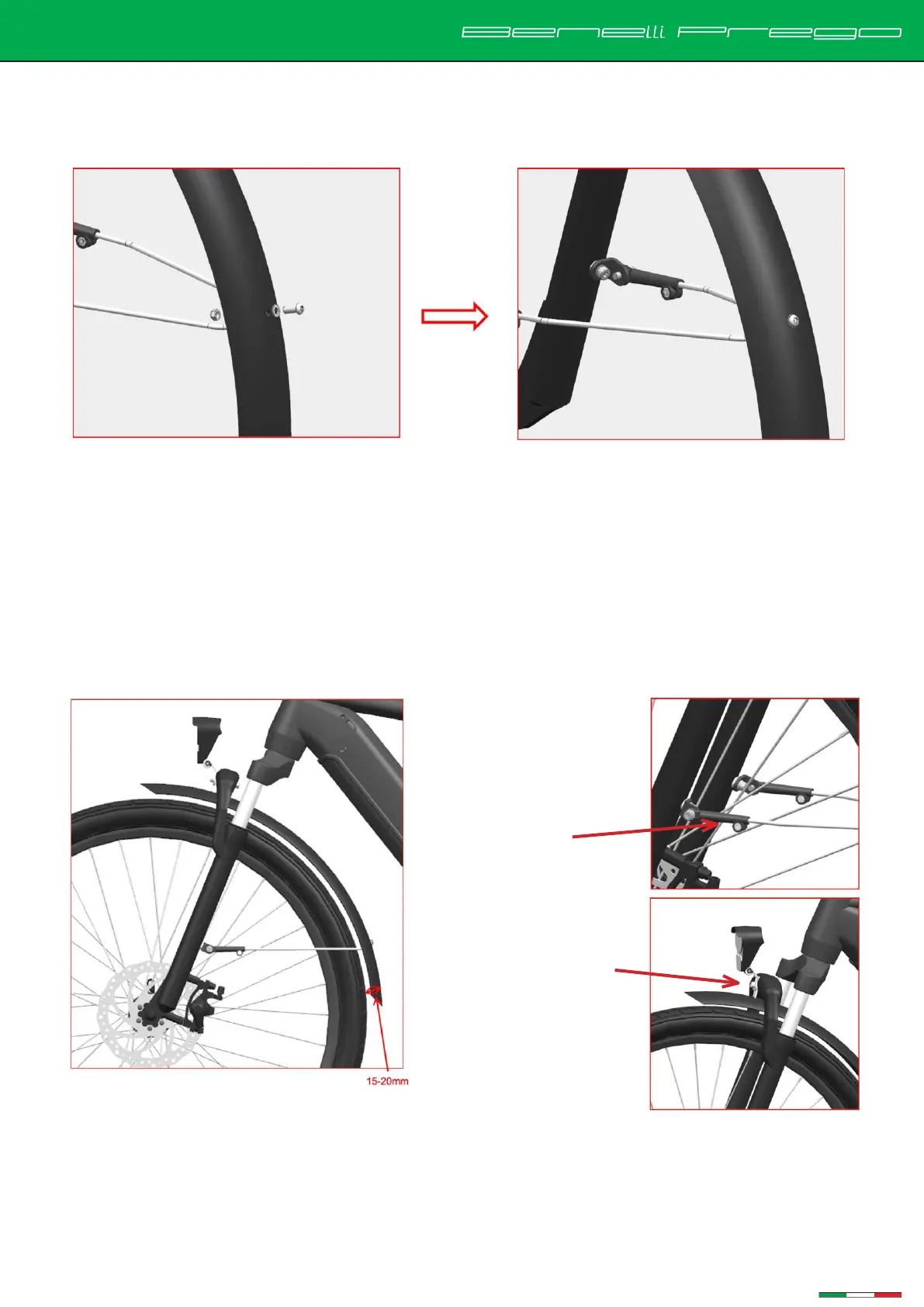

3. To connect to the fender strut, the bolts is passed through the flat
washer, the tail hole of the front fender, hole of the front fender strut
and then fastened with the nut (4 — 6 N.m).
4. Install the front wheel and adjust the clearance between the front
fender and the front tyre to 15-20mm.
Lock the front
fender support
adjuster, tighten the
screws to
(4-6N.m)
and suspension fork
brace tighten the
bolt to
(6-10N.m).
