Benelli TNT150 User Manual

WARNING
!
Turn on the direction signal lamps in time when
changing the driveway or turning a direction
and turn off the lamps.
Under normal conditions, this switch shall be on
"Operate" ( ) position. Use this switch under
emergency situation, for example accident or
key switch problems.
NOTICE
9 - 10
Turn the switch to " " position, the high beam of
headlamp turn on and the indicator lamp on the
meter would also turn on; turn the switch to " "
position, the low beam of headlamp turn on.
Direction indicator lamp switch
Turn the switch to " " position, the left direction
signal lamp flashes; turn the switch to " " position,
the right direction signal lamp flashes. And the indi-
cator lamps would turn on accordingly.
Dimmer switch
Press down on the button, to activate the horn.
Horn button
When the switch is on " " position and the power
is on, the engine runs.
When the switch is on " " position and the power
is off.
Engine stop switch
When passing other vehicles, press this button so
the high beams of the headlamp would flash to
alarm the vehicles in front of you.
Passing switch

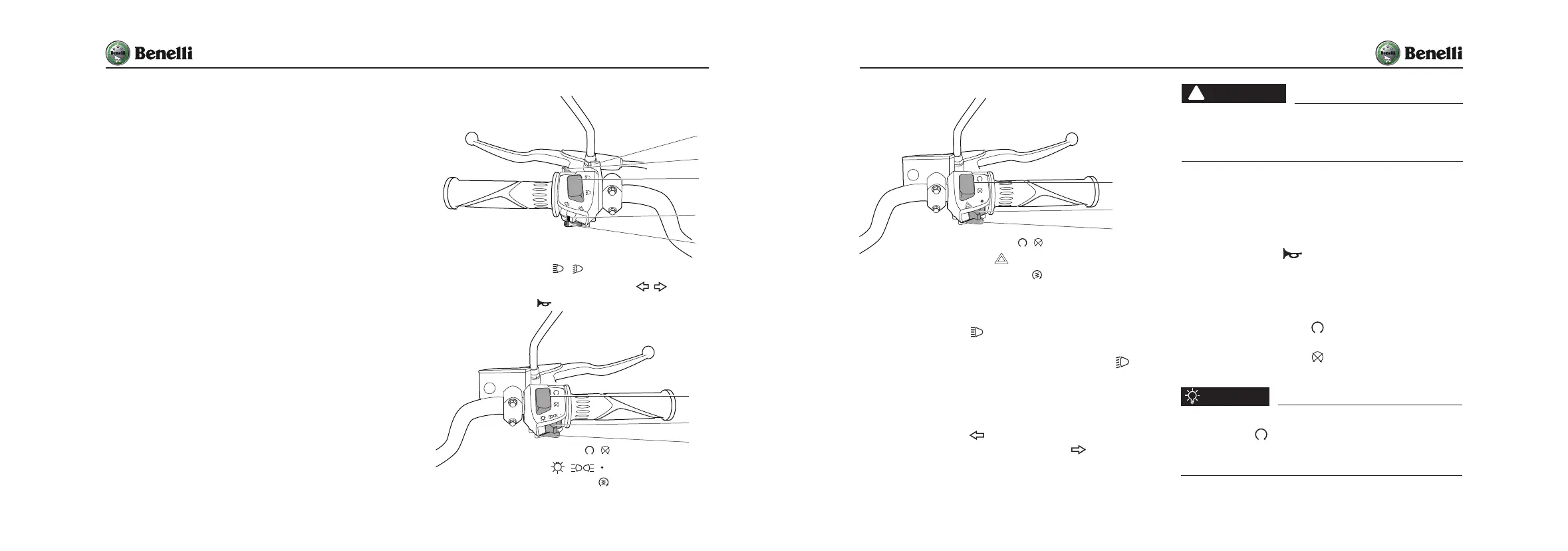

HANDLEBAR
2. Light switch “ / / ”
1. Engine stop switch“ / ”
3. Electric starter button “ ”
1
2
3
LEFT HANDLE
RIGHT HANDLE
11. CLOCK 12. FUEL LEVEL INDICATOR：
It shows the time. It indicates the fuel level in the fuel tank.
13. ODOMETER/ TRIP METER
Odometer records the total mileage driven, and Trip meter can be reset,
which records the mileages driven in a specic period.
14. FI INDICATOR
It ashes when EFI system trouble happens and it shows up when
performinig self-diagnosis.
15. GEAR INDICATOR LAMP
Numbers on the meter indicate the gear positions of the vehicle
including 1, 2, 3, 4, 5, and 6.
8. SPEEDOMETER
Speedometer shows the running speed, hours/kilometers.
9. FUEL LEVEL INDICATOR
It indicates the fuel level in the fuel tank.
10. ODOMETER/ TRIP METER
Odometer records the total mileage driven, and Trip
meter can be reset, which records the mileages driven in
a specic period.
11. GEAR INDICATOR LAMP
Numbers on the meter indicate the gear positions of the
vehicle including 0,1, 2, 3, 4, 5.
6. FUNCTION BUTTON B
7. TACHOMETER
Tachometer indicates the revolution per minute of engine.
12. FUEL LEVEL WARNING LAMP
It indicates the fuel is less than 15% of total capacity in the
fuel tank.
2. Hazard Switch“ ”
1. Engine stop switch“ / ”
3. Electric starter button “ ”
1
2
3
ALWAYS HEADLIGHTS ON
(IF EQUIPPED)
NON-ALWAYS HEADLIGHTS ON
3. Dimmer switch “ / ”
2. Passing switch
1. Choke switch
4. Direction indicator lamp switch “ / ”
5. Horn switch “ ”
2
1
3
4
5
Short press the button to switch between trip and odom-
eter functions on the meter.
Long press the button to reset the "Trip" mileage.

Benelli TNT150 Specifications

Tire Information

front tire pressure	190 kPa (1.9 kgf/cm^2)
rear tire pressure	210 kPa (2.1 kgf/cm^2)
front tire size	100/80-17
rear tire size	130/70-17

Engine Specifications

compression ratio	9.2:1
engine type	Single-cylinder, Four-stroke, Two-valve
bore x stroke	Ø57.3×58 mm
displacement	150 ml
maximum power	9.6 kW/8000 r/min
maximum torque	12.8 N.m/6500 r/min

Fuel System

fuel tank capacity	13.5 L
fuel type	Regular unleaded gasoline only

Brakes

front brake type	Disk Brake
rear brake type	Disk Brake

Weight and Dimensions

length	2050 mm
width	810 mm
height	1065 mm
wheelbase	1360 mm
dry weight	135 kg
