Benetech GM130 User Manual

-04-
Ultrasonic Thickness Gauge
Diagram Of The Unit
1). Main Body:
①
②
③
④
⑤
⑥
⑦
LED
VEL
DEL
CAL
CLR
MODE
STORE
INCH
-03-
Specification
①. Measuring range: 1.00 to 300.0mm(steel)
②. Accuracy:±(1%H+0.1mm)
H denotes the measured thickness
③. Working frequency: 5MHz
④. Resolution:0.01mm(1.00 to 99.99mm)
0.1mm(100 to 300mm)
⑤. Minimum limit for tube measuring（steel）:
15*2.0mm( 6mm transducer)
20*3.0mm( 10mm transducer)
⑥. Sound velocity range:1000 to 9999m/s
Thickness≤25mm, accuracy of velocity:±1.25mm/Hx100%
Thickness≥25mm, accuracy of velocity: ±5%
⑦. Operating environment :
Operation temperature: 0 to 40℃
Relative Humidity: <90%
Do not apply in violent vibration / erosive material
Avoid impact and humidity
⑧. Power supply:1.5V AAA * 3 PCS
⑨. Weight:223g
⑩. Size: 72*29*146mm

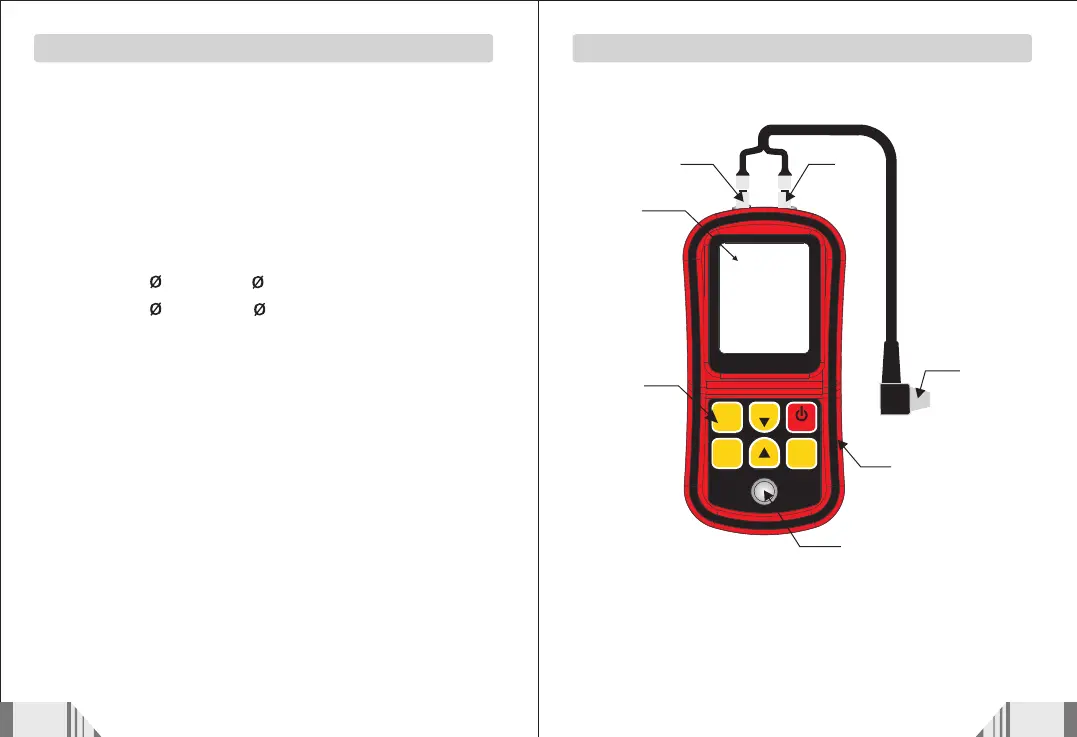

①. LCD display ②. Keypad
③. Sample block ④. Battery compartement (rear case)
⑤. Transducer ⑥+⑦. Trasimit socket / Receive socket
