Benetech GM130 User Manual

-09-
5.0 5.0 5.0
-10-

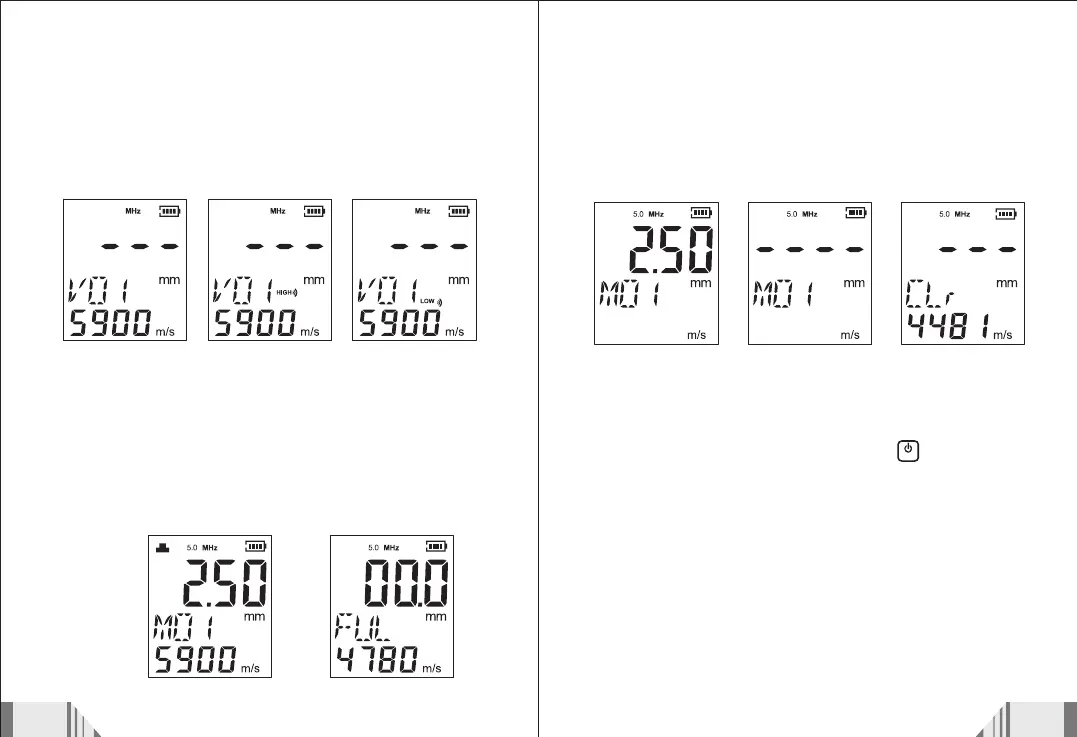

6.Mode switching
Press MODE/STORE”key to switch among normal mode,
high gain mode and low gain mode. The normal mode has
no icon display while high gain and low gain have their
icons. The normal mode is for measuring the steel material
while the low gain mode for aluminum and copper material
and high gain mode acrylic material such as.
“
Low gain modeNormal mode High gain mode
7.Data saving
The thickness displayed while measuring, press CAL/CLR”
key can save the thickness value with the memory unit
flashing once indicating the current thickness is saved.
“FUL” on the LCD indicates the memory is full.
“
Saving the current value Memory is full
8.Data reviewing
Long press on the MODE/STORE” key to enter into reviewing
window, it displays “NON” if there is no datum saved. Use Up
key or Down key to review the data. Short press on the VEL
/DEL” key is to delete the current data. Long press on VEL
/DEL” key until “CLr” appears, that may clear all data saved.
Short press on CAL/CLR” key to leave reviewing window.
“
“
“
“
Clear the data saved
Review the
thicknesses saved
Delete the data
in current unit
9.High/low alarm value setting
Long press on MODE/STORE” key and key at the same
time until “LO” appears at the bottom and a value appears
at the top of the LCD indicating entry to the low alarm value
setting, then press Up key or Down key to adjust the value;
short press on MODE/STORE” key to switch to high alarm
value setting with “HI” appears at the bottom of the LCD,
then press Up key or Down key to adjust the value. After
adjustment, press “CAL/CLR” key to enter into measuring
window. High alarm limit is 305mm and low alarm limit 0.7
mm if the measuring is less than the low limit the buzzer
beeps once while larger than high limit it beeps 3 times.
“
“
LCD
A
1
2
3
4
5
6
A
DOCUMENT NO.: QR-208/A
B C D E
B
C
D E
1
2
3
4
5
6
SCALE
SIZE
DATENAME
APPROVALS
APP. BY
CUSTOMTER
DRAWN BY
CHECKED BY
1:1
A4
更 改 记 录
次号
1.
2.
3. 12页内容修改 19.11.22
VER.A4
SHEET
OF
PART Number:
1 1
GM130 英文有唛新说明书示意图
日期
更 改 内 容
7160130008
QWY
2017-5-13
SHENZHEN JUMAOYUAN SCIENCE AND TECHNOLOGY CO., LTD.
4.修改 配件 探头 单位 2021-07-09
7160130008 GM130 英文有唛新说明书
材料:105G双铜;
成品尺寸:190*130MM;
公差:+-1.0MM;
页数：24P;
工艺:双面单色印刷,加工:骑马钉
VER-A4
