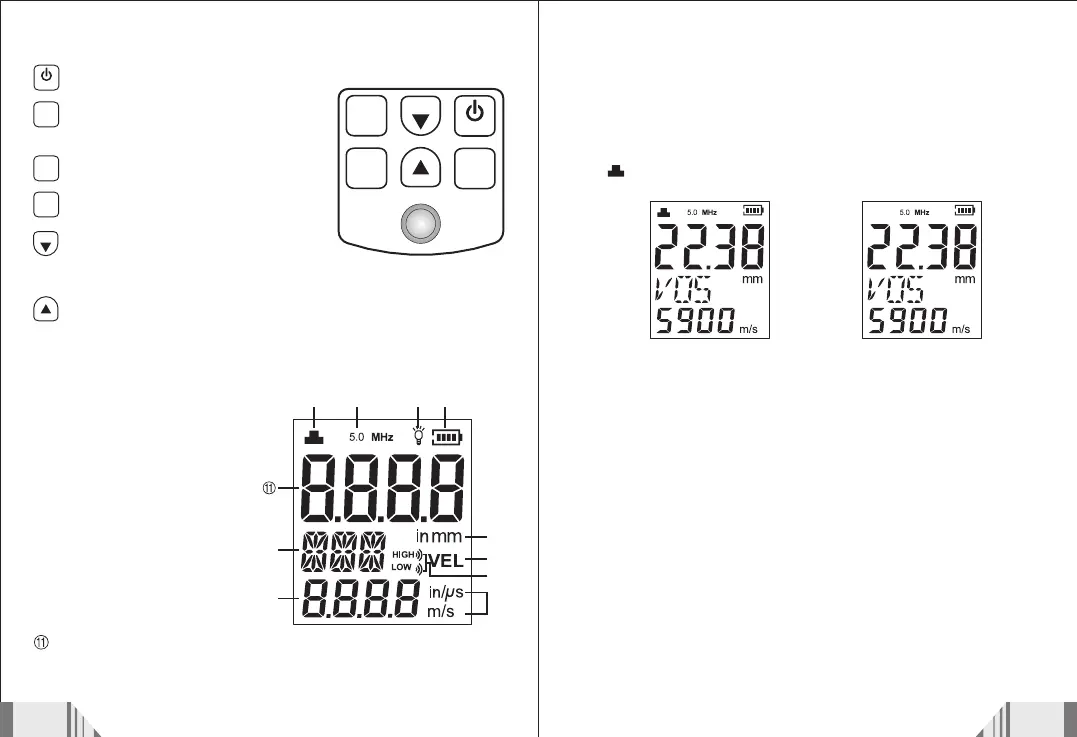

Control Panel
3).LCD display：
-05-
LED
VEL
DEL
CAL
CLR
MODE
STORE
INCH
LED
VEL
DEL
CAL
CLR
MODE
STORE
INCH
①
②
③ ④
⑤
⑥
⑦
⑨
⑧
⑩
2.5
-06-
2. Operation Instruction
Thickness measuring
Paste the coupling agent on the measured place to
couple the sensor with the measured material. The
thickness value appears on LCD with the coupling icon
“ ”(the coupling fails if this icon flashes or disappears)
1.
Well coupled, and in process
of thickness measuring.
Thickness measuring completes,
remove the sensor away.
2). Keyboard
– On/off/backlight key
– Key for mode setup and retrieval
of data saved.
– Key for sound speed adjustment
– Key for confirmation and calibration
– Key for sound speed selection,
adjustment, depth value adjustment
and alarming value adjustment.
-- Key for sound speed selection, adjustment, thickness value
adjustment and alarming value adjustment.
LCD display
①. Coupling indicator
②. Transducer Frequency
③. Back light icon
④. Battery power
⑤. Thickness unit
⑥. Sound velocity indicator
⑦. Measuring mode selection
⑧. Sound velocity unit
⑨. Sound velocity reading
⑩. Velocity stored unit
. Thickness reading
Remarks:
a)Select the corresponding sound speed according
to the measured material and make direct measuring.
Because the actual speed differs with the speed
preset, this measuring method is not for accurate
measurement.
b)For accurate measurement, select a standard
block of the same material with that of the measured
object and measure its sound speed (refer to the part
of Sound Speed Measuring for details).
