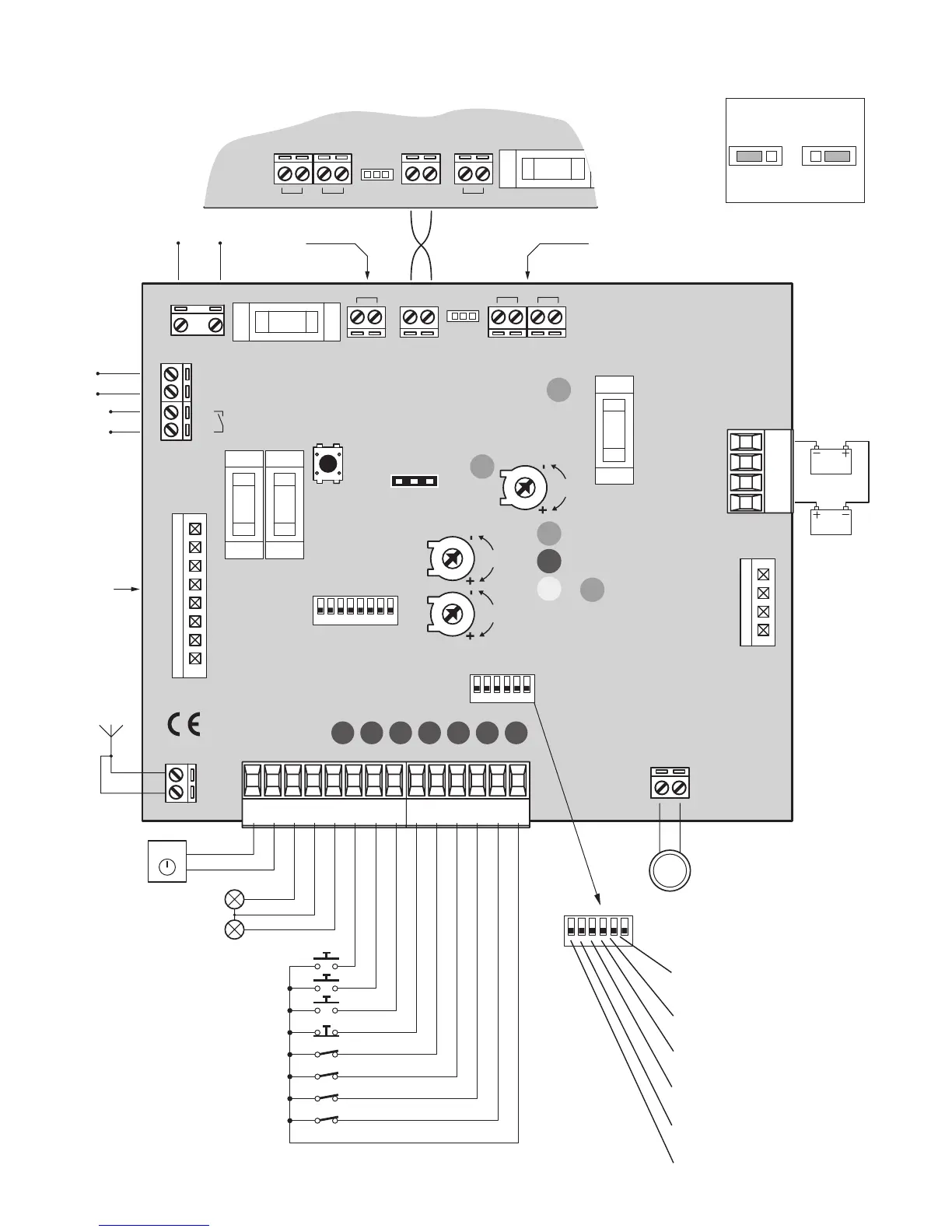

Beninca DA.BA - DA.BA Control Unit Overview; Master;Slave Configuration; Terminal Connections

10
11




ON
Display





      


























ON


             
 






 


 
 
 
 



ON



     










 
 
 
 

 

 


Antenna
Blinker 24V
Barrier Open
Light 24V
230Vac
Transformer
Primary circuit
Transformer
Secondary circuit
Radio
receiver
Close
Open
Step-by-Step
STOP
Close limit stop
Open limit stop
Photocell
Safety edge
On: Electronic edge
Off: Mechanical edge
On: Edge not installed
Off: Edge installed
On: Photocell not installed
Off: Photocell installed
On: Open limit stop not installed
Off: Open limit stop installed
On: Close limit stop not installed
Off: Close limit stop installed
On: STOP not installed
Off: STOP installed
Battery charger
Battery
(connect only
with battery
charger hooked
up)
DA.BA Control unit
