8
111660 Rev C 5-13-14

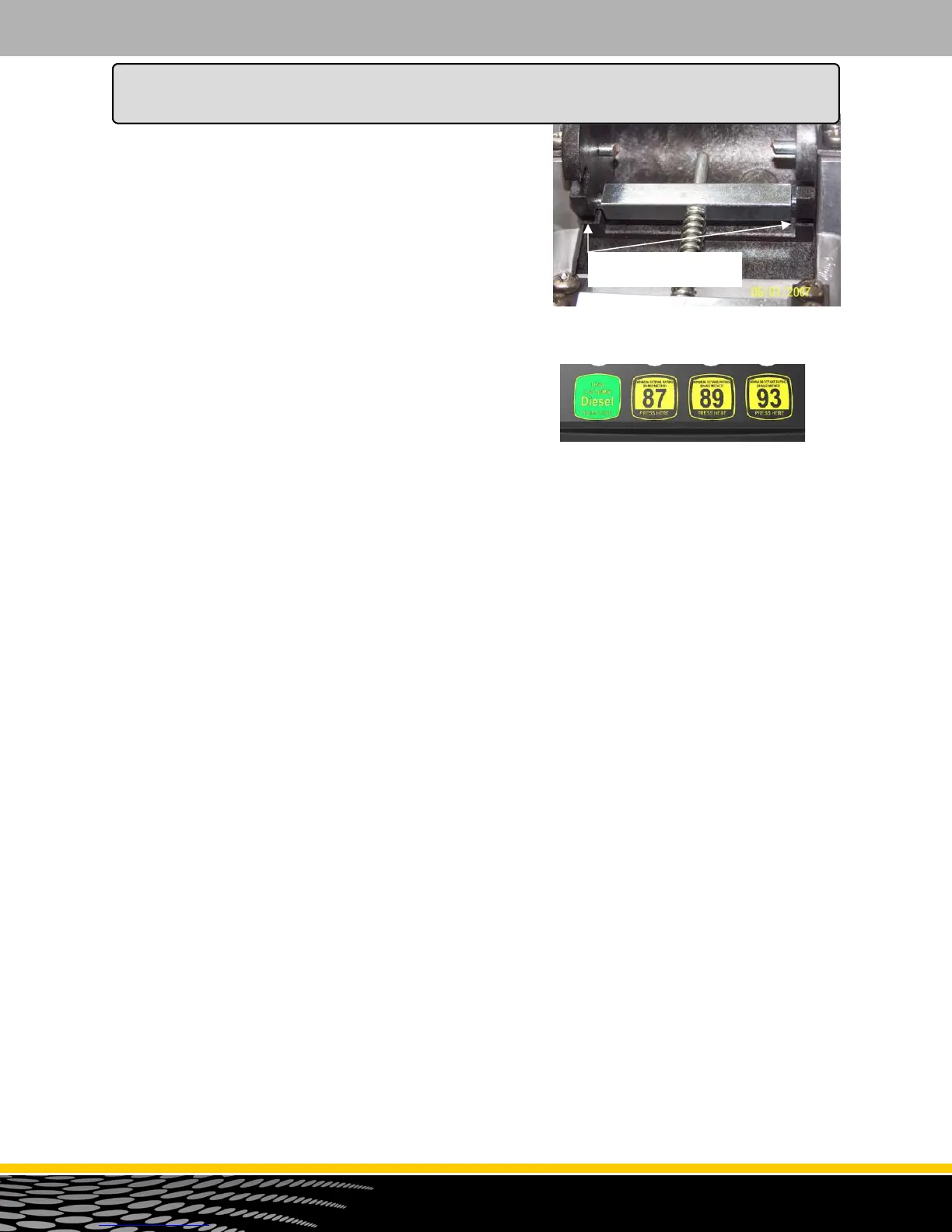

To convert this into an Auto-On operation you will press
down on the cross bard and slide it into the second set of
notches. See figure 12. With this configuration the
spring presses against the lever at an angle that forces it
open as you lift the nozzle.
The Grade Select Buttons. See Figure 13.
The customer must select the grade to be pumped
before the dispenser will operate. The grade select
buttons are located below the PPV (Price Per Volume)
displays.
Figure 13 - Grade Select Buttons
Figure 12
Second set of Notches.
Pump Control Devices (Cont’d)
