Product overview14

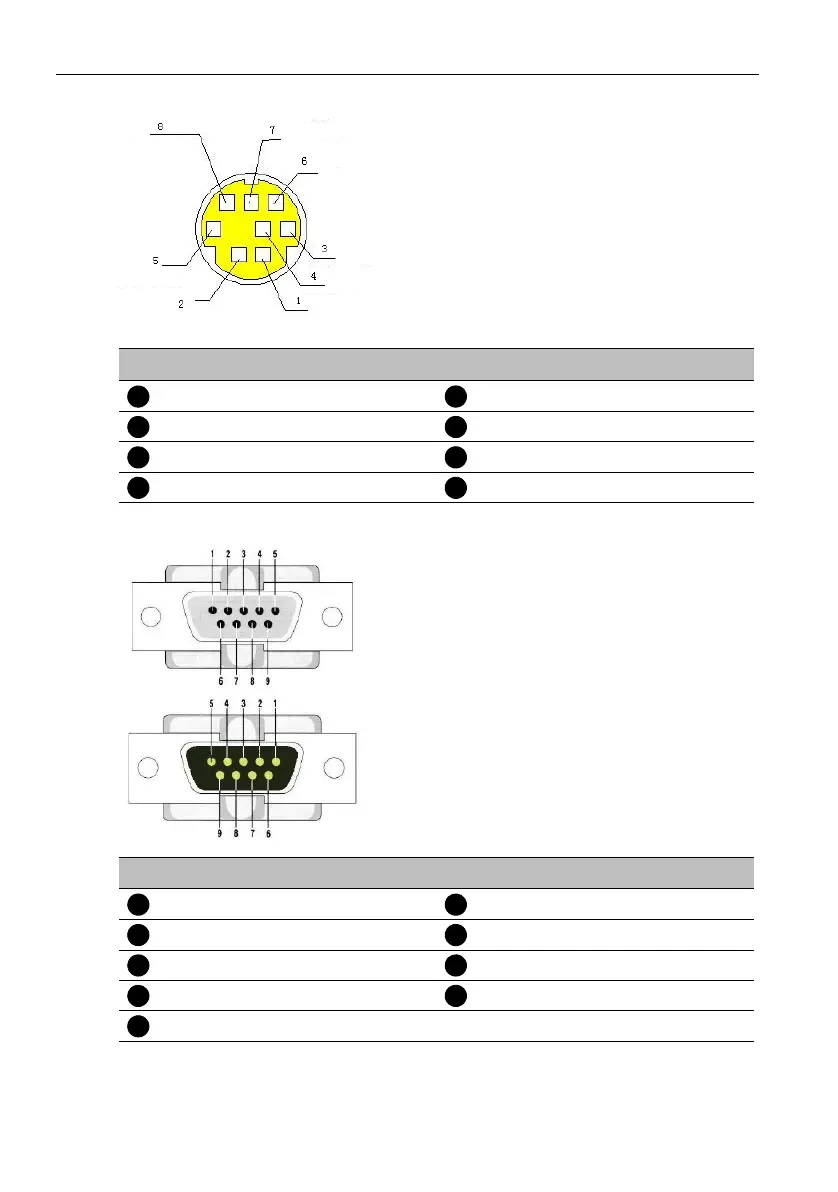

2. Mini-DIN8-pin port
3. RS232(DB9) port
No. Port Definition
DTR Data Terminal Ready RXD Receive Data
DSR Data Set Ready GND Signal ground
TXD Transmit Data IR OUT IR Commander Signal
GND Signal ground NC No Connection
No. Port Definition
DCD Data Carrier Detect DSR Data Set Ready
RXD Receive Data RTS Request to Send
TXD Transmit Data CTS Clear to Send
DTR Data Terminal Ready RI Ring Indicator
GND System Ground
1
5
2
6
3
7
4
8
1
6
2
7
3
8
4
9
5
