BenQ LX710 - Projector Exterior View

8 Introduction

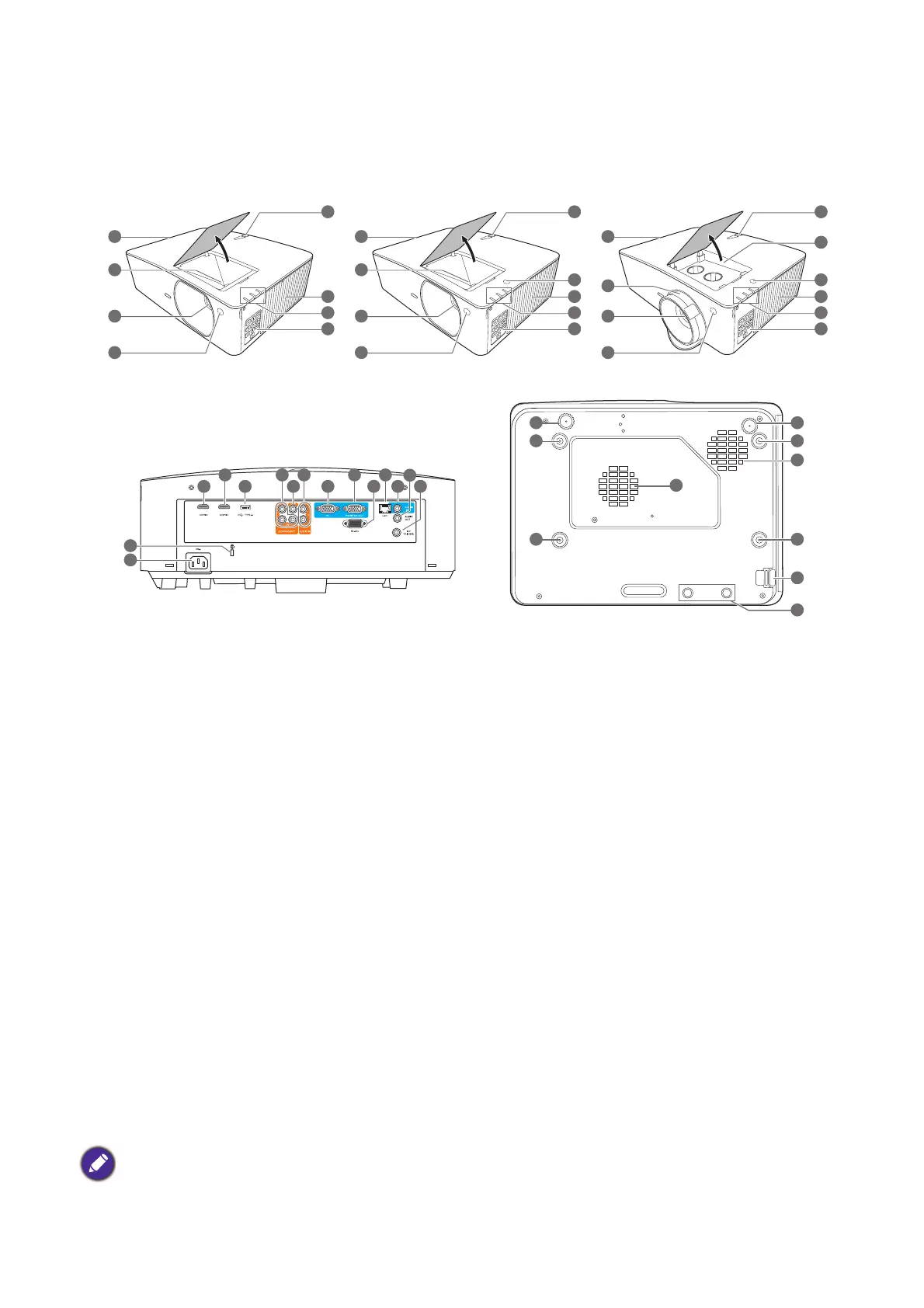

Projector exterior view
1. Vent (air exhaust)
2. Focus and zoom ring
3. Projection lens
4. IR remote sensor
5. Lens shift adjustment knobs (LEFT/RIGHT,
UP/DOWN)
6. Ambient Light Sensor (ALS)
7. Vent (air inlet)
8. POWER indicator light/TEMPerature
warning light/LIGHT indicator light
(See Indicators on page 50.)
9. External control panel
(See Controls and functions on page 9.)
10. HDMI 1 input port
11. HDMI 2 input port
12. USB Type A port (5V/1.5A power for
WDC10/QCast Mirror)
13. Component RCA RGB input jacks
14. Video input jack
15. Audio (L/R) input jacks
16. RGB (PC) signal input jack
17. RGB (PC) signal output jack
18. RS-232 control port
19. RJ-45 LAN input jack
20. Audio input jack
21. Audio output jack
22. 12V trigger
23. Anti-theft lock slot
24. AC power jack
25. Adjuster feet
26. Wall mount holes
27. Security bar
28. InstaShow holes
*Power for WDC20 should come from external power supply.
