Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 8). They are commercially available from electronics stores.
• For detailed connection methods, see pages 19-23.
• For the combination of an active audio in source, see the marks in the illustration.

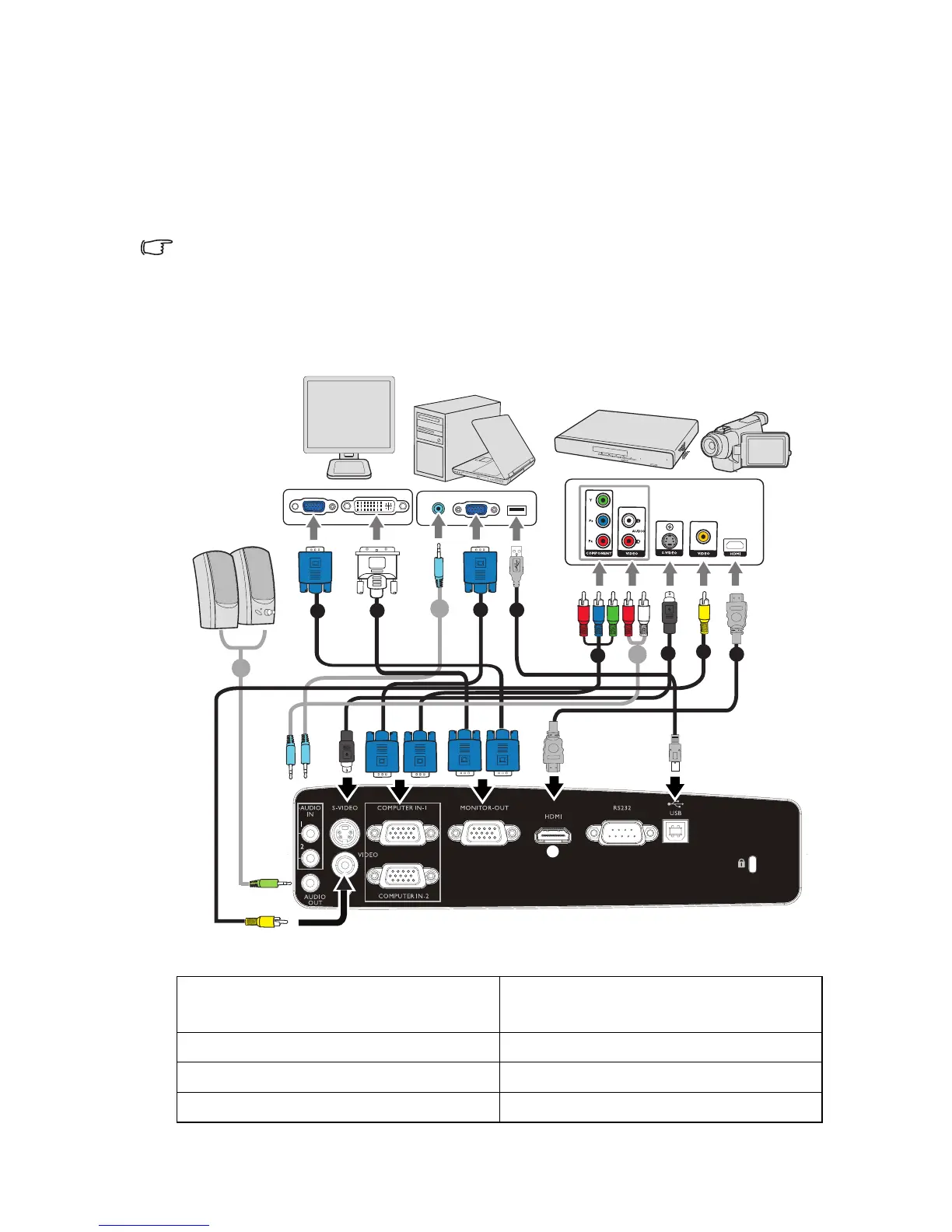

1. Audio Cable 5. Component Video to VGA (DSub)
adapter cable
2. VGA cable 6. S-Video cable
3. VGA to DVI-A cable 7. Video cable
4. USB Cable 8. HDMI cable
3
5
6
8
1
1
2
2
4
