BenQ MX613ST - Page 19

19

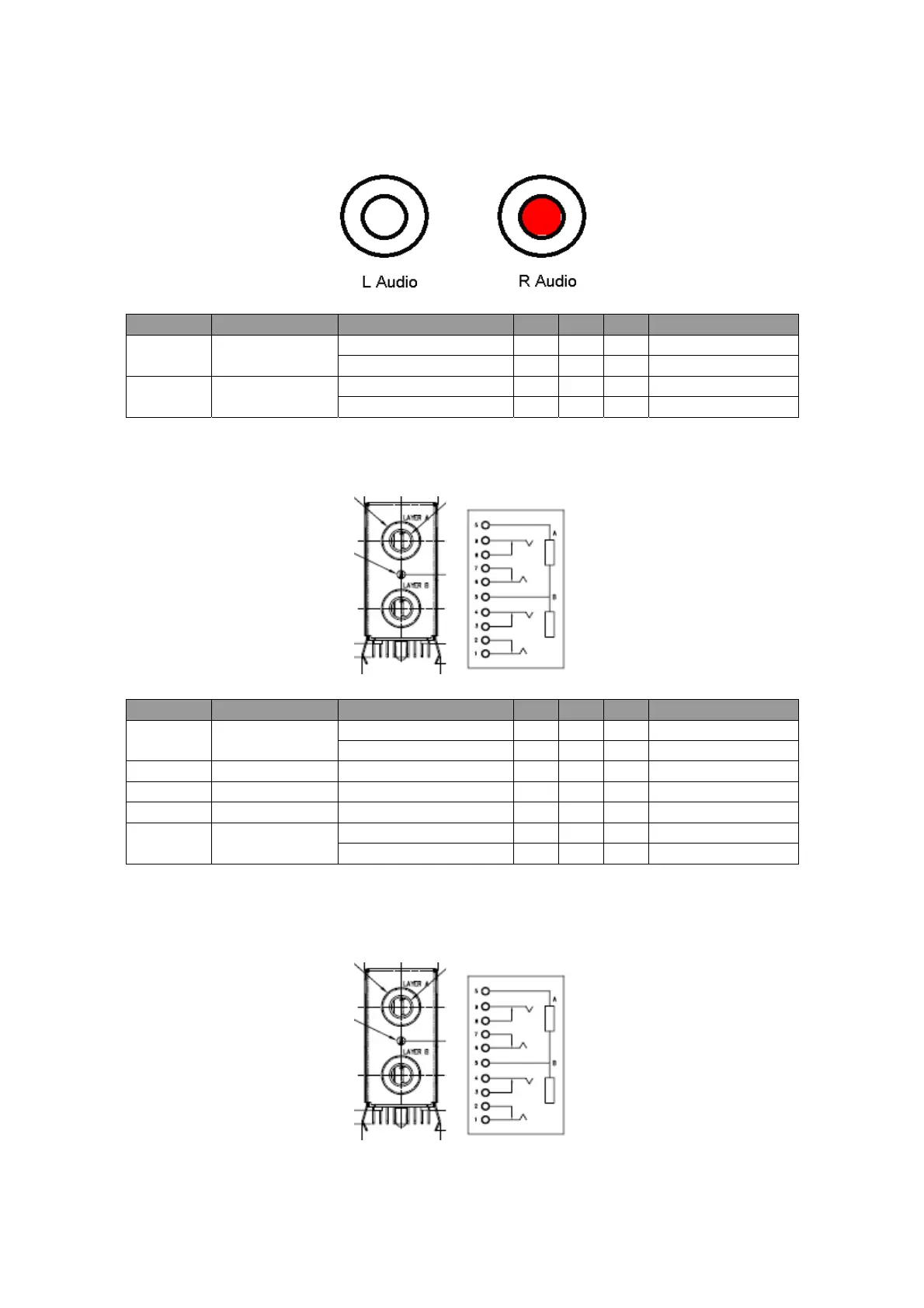

2.1.6 Audio Input (RCAx2)
(1) Pin definition:
(2) Signal Level: N/A
PIN Signal Parameter Min Type Ma
x
1 L Audio
Amplitude 0.5 2
V
RMS
Impedance 10 KΩ
2 R Audio
Amplitude 0.5 2
V
RMS
Impedance 10 KΩ
2.1.7 Audio Input (Mini-Jack 3.5mm)φ
(1) Pin definition
(2) Signal Level:
PIN Signal Parameter Min Type Ma
x
1 Audio In Right
Amplitude 0.5 2
V
RMS
Impedance 10 KΩ
2 NC
3 NC
5 GND
4 Audio In Left
Amplitude 0.5 2
V
RMS
Impedance 10 KΩ
2.1.8 Audio Headphone Output (Phone-Jack 3.5mm)φ
(1) Pin definition
