BenQ MX613ST - Page 70

70
4

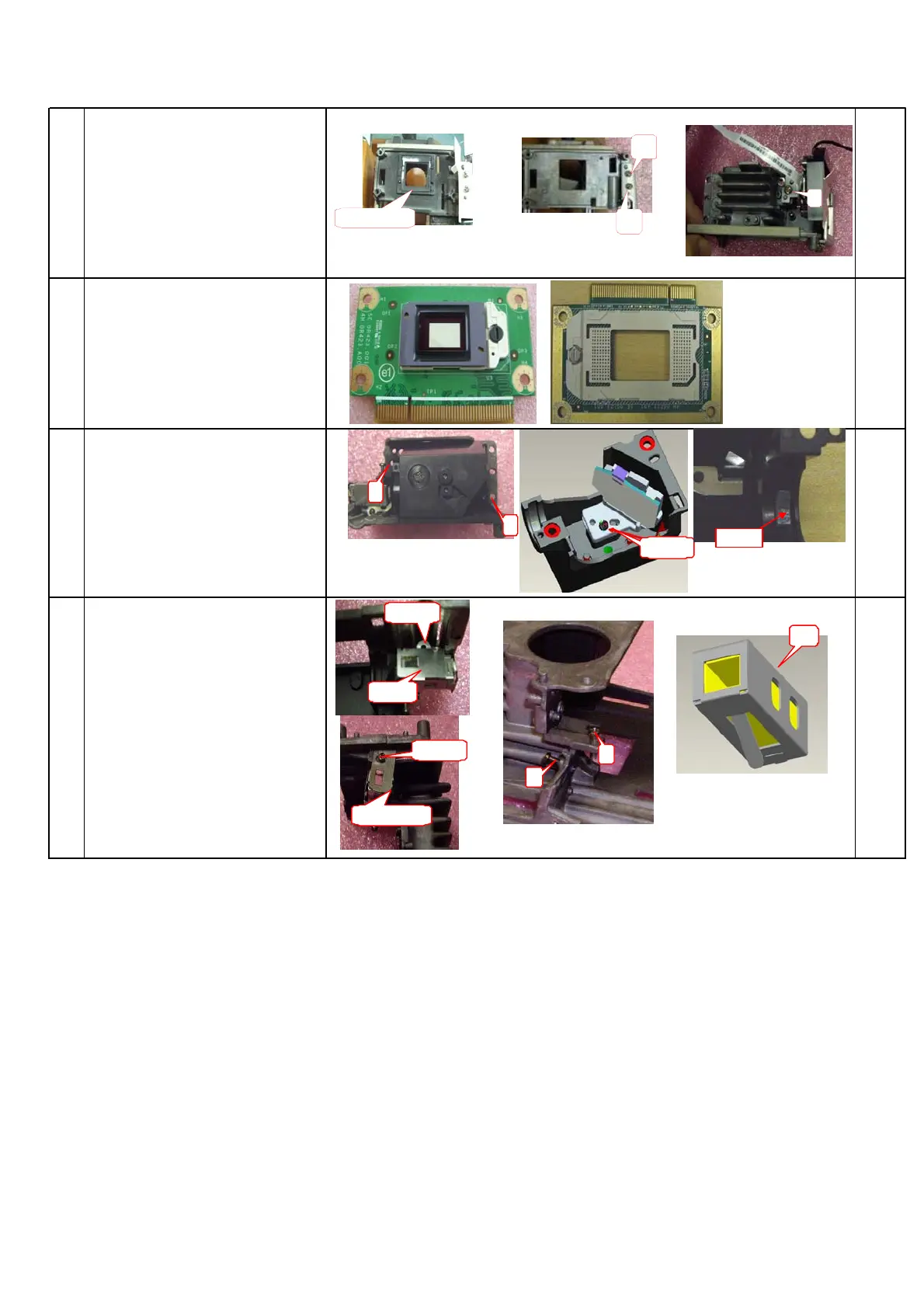

Disassemble the baffle DMD.
Disassemble the screw*3 and take
off the CW module.
screw
driver
5
Rotate to open the switch on
socket, and take off the DMD chip.
6
Disassemble ILL module( screw*2).
Take off screw*1, FM holder, fold
mirror, FM clip*2, clip CM front,
clip CM side and sponge.
screw
driver
7
Disassembly the screw*2.
Take off the chip lp and baffle
DMD
Take off the LP module .
Disassembly the screw*2.
screw
driver
3
1
2
baffle DMD
screw*1
1
2
sponge
screw*1
1
2
L/P
chip lp
baffle DMD
screw*1
