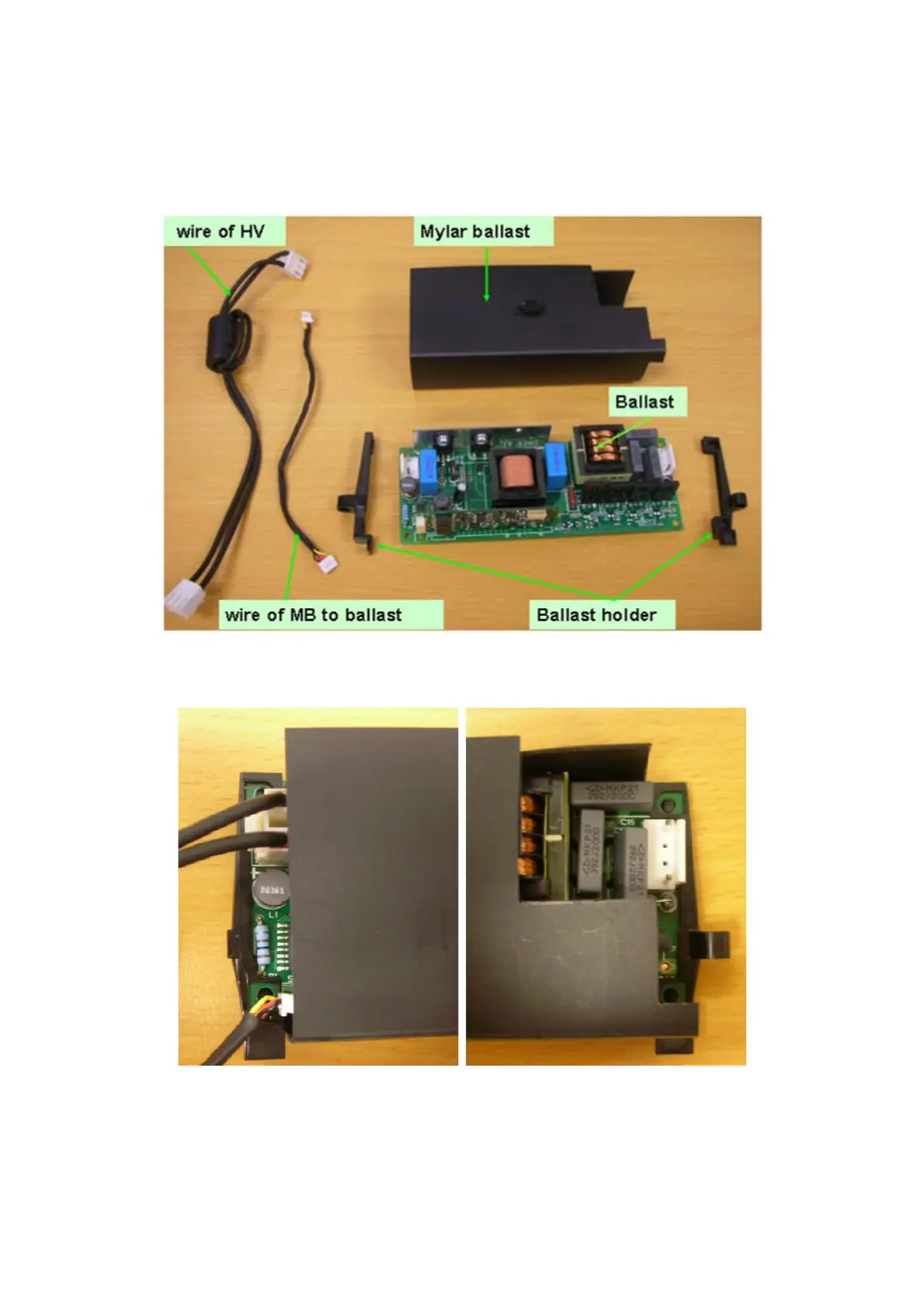

5-2 Assemble ballast board fixed with 2 holder on the lower case by screw. Plug in the wire of
HV and wire of MB to ballast.
Check the wire arrangement must follow figure shows.
Step1. Assemble the holder 2 first, then insert the Mylar ballast, and at last assemble the holder 1 and
2 wires.
