90
Step3. Assemble them by screw. 3.

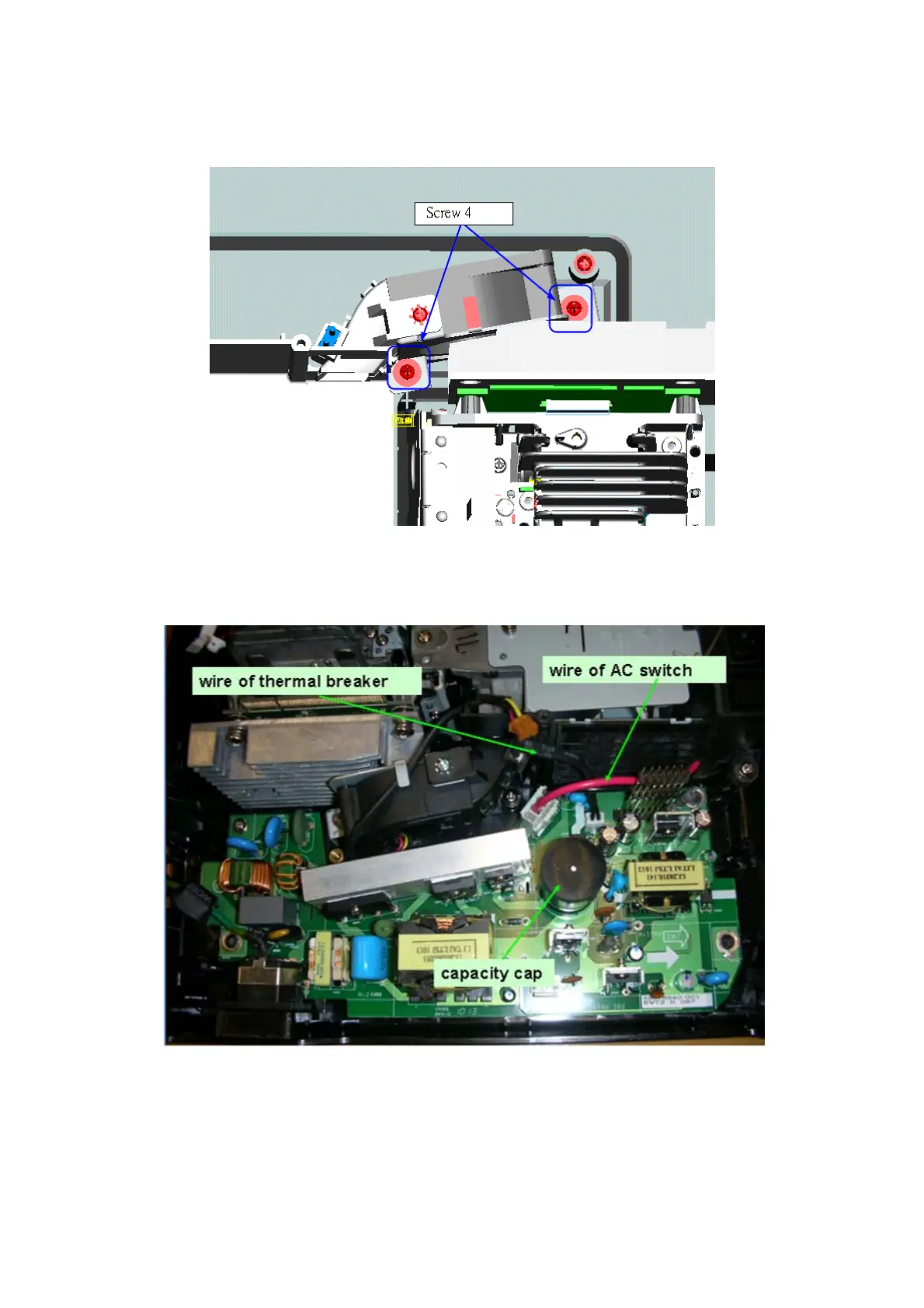

Step4. Assemble blower module on the lower case by screws 4.
5. Internal parts assembly
5-1 Assemble power board on the lower case, and screw.
Step1. Plug the wire of thermal breaker in the connector.
Step2. Plug in the wire of AC switch, and check the wire. Don’t block the screw hole as figure shows.
Step3. Assemble the capacity cap on the big capacity.
