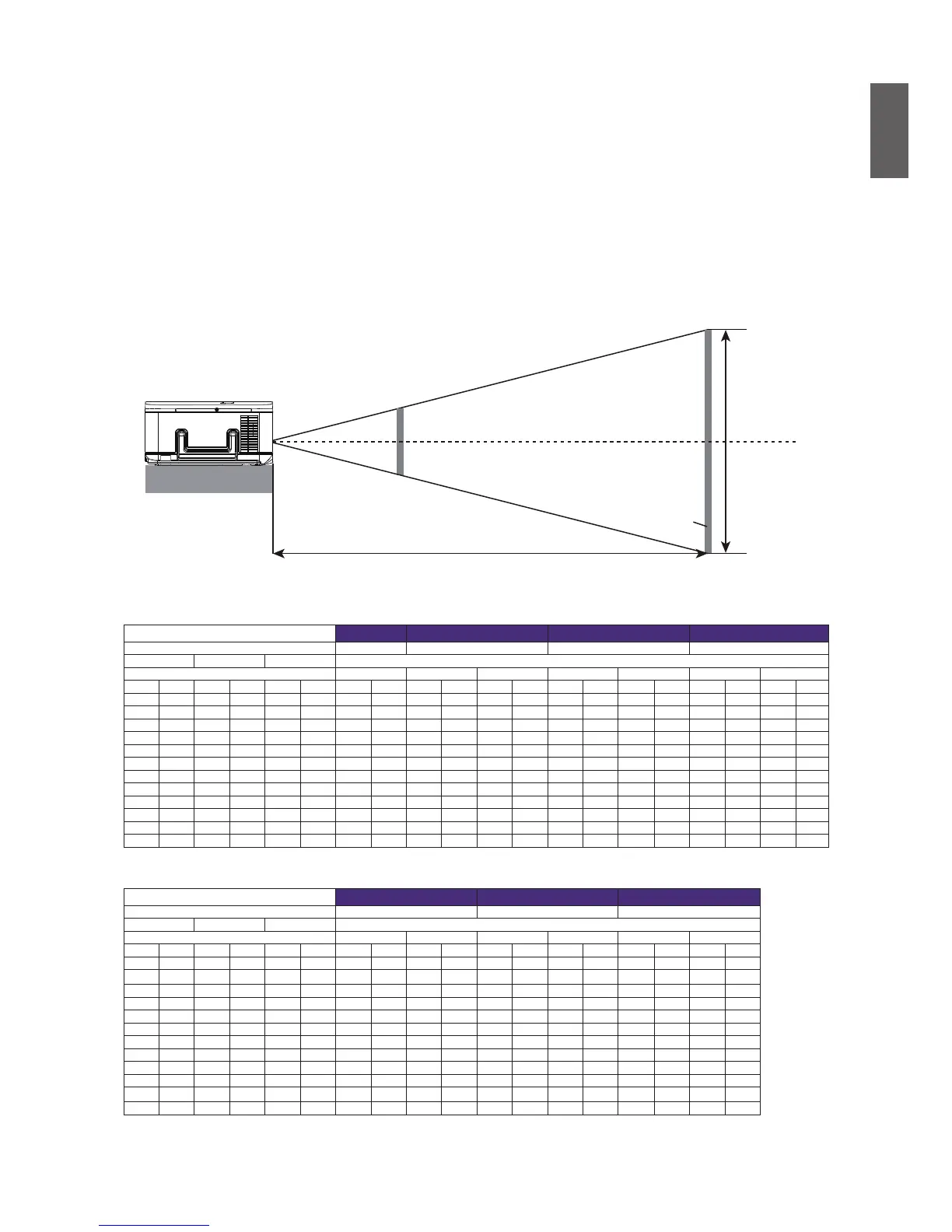

Throw distance and screen size
Example of PW9500 using Standard lens:
The further your projector is from the screen or wall, the larger the image. The minimum size the
image can be is approximately 40 inches (1 m) measured diagonally when the projector is roughly
79.8 inches (2.03 m) from the wall or screen. The largest the image can be is 500 inches (12.7 m)
when the projector is about 1028 inches (26.11 m) from the wall or screen.
Distance (A)
Height (B)
Lens center
Projector bottom
26.11m
6.73m
2.03m
0.54m
SCREEN
PW9500
Screen Size 5J.JAM37.011 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051
Wide Fix Lens Wide Zoom Lens STD Lens Semi long Zoom1
Diagonal Width Height(B) Distance(A)
N/A Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 26.4 0.67 43.6 1.11 63.1 1.60 60.2 1.53 79.8 2.03 77.6 1.97 130.5 3.31
50 1.27 42 1.08 26 0.67 33.5 0.85 55.0 1.40 79.3 2.01 75.9 1.93 100.4 2.55 97.8 2.48 163.9 4.16
60 1.52 51 1.29 32 0.81 40.5 1.03 66.4 1.69 95.5 2.43 91.7 2.33 121.0 3.07 117.9 3.00 197.3 5.01
80 2.03 68 1.72 42 1.08 54.7 1.39 89.3 2.27 128.0 3.25 123.1 3.13 162.3 4.12 158.3 4.02 264.1 6.71
100 2.54 85 2.15 53 1.35 68.8 1.75 112.1 2.85 160.5 4.08 154.5 3.93 203.5 5.17 198.7 5.05 330.9 8.41
120 3.05 102 2.58 64 1.62 82.9 2.11 135.0 3.43 193.0 4.90 186.0 4.72 244.7 6.22 239.0 6.07 397.7 10.10
150 3.81 127 3.23 79 2.02 104.1 2.64 169.2 4.30 241.7 6.14 233.1 5.92 306.5 7.79 299.6 7.61 498.0 12.65
180 4.57 153 3.88 95 2.42 125.3 3.18 203.5 5.17 290.4 7.38 280.3 7.12 368.4 9.36 360.1 9.15 598.2 15.19
200 5.08 170 4.31 106 2.69 139.4 3.54 226.4 5.75 322.9 8.20 311.7 7.92 409.6 10.40 400.5 10.17 665.0 16.89
300 7.62 254 6.46 159 4.04 210.0 5.33 340.6 8.65 485.3 12.33 468.9 11.91 615.7 15.64 602.3 15.30 999.0 25.38
400 10.16 339 8.62 212 5.38 280.6 7.13 454.8 11.55 647.7 16.45 626.1 15.90 821.9 20.88 804.1 20.42 1333.1 33.86
500 12.70 424 10.77 265 6.73 351.2 8.92 569.0 14.45 810.1 20.58 783.3 19.90 1028.0 26.11 1005.9 25.55 1667.1 42.35
Screen Size 5J.JAM37.031 5J.JAM37.041 5J.JAM37.061
Long Zoom 1 Lens Long zoom 2 Lens Ultra Wide zoom Lens
Diagonal Width Height(B) Distance(A)
Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 124.9 3.17 190.3 4.83 183.3 4.65 292.2 7.42 25.8 0.65 32.8 0.83
50 1.27 42 1.08 26 0.67 157.5 4.00 239.2 6.08 232.0 5.89 368.1 9.35 32.7 0.83 41.4 1.05
60 1.52 51 1.29 32 0.81 190.1 4.83 288.1 7.32 280.7 7.13 444.0 11.28 39.6 1.00 50.0 1.27
80 2.03 68 1.72 42 1.08 255.2 6.48 385.9 9.80 378.1 9.60 595.9 15.13 53.3 1.35 67.3 1.71
100 2.54 85 2.15 53 1.35 320.3 8.14 483.7 12.29 475.6 12.08 747.7
18.99 67.1 1.70 84.5 2.15
120 3.05 102 2.58 64 1.62 385.5 9.79 581.5 14.77 573.0 14.55 899.6 22.85 80.9 2.05 101.8 2.59
150 3.81 127 3.23 79 2.02 483.2 12.27 728.2 18.50 719.1 18.27 1127.3 28.63 101.6 2.58 127.6 3.24
180 4.57 153 3.88 95 2.42 580.9 14.75 874.9 22.22 865.3 21.98 1355.1 34.42 122.2 3.10 153.5 3.90
200 5.08 170 4.31 106 2.69 646.0 16.41 972.7 24.71 962.7 24.45 1506.9 38.28 136.0 3.45 170.8 4.34
300 7.62 254 6.46 159 4.04 971.7 24.68 1461.8 37.13 1449.9 36.83 2266.2 57.56 204.9 5.20 257.0 6.53
400 10.16 339 8.62 212 5.38 1297.3 32.95 1950.8 49.55 1937.1 49.20 3025.4 76.85 273.8 6.95 343.2 8.72
500 12.70 424 10.77 265 6.73 1623.0 41.22 2439.8 61.97 2424.2 61.58 3784.7 96.13 342.7 8.70 429.4 10.91
