60 Mounting installation
H-mount
For tools needed, pre-action, and installation steps 1-5 of H-mount, please refer to U-Mount on
page 56. For steps 6-7 of H-mount, please read the following.

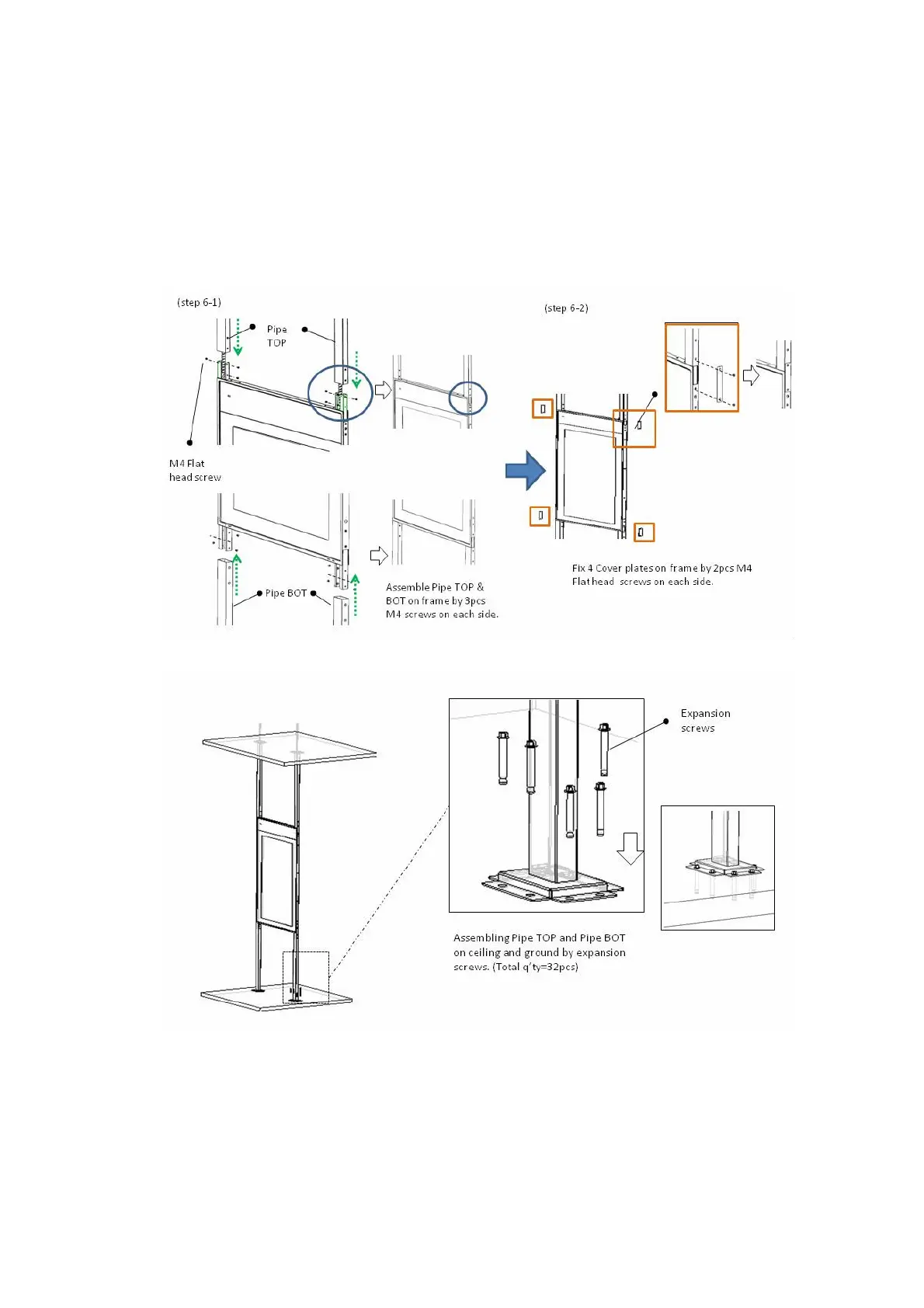

Step 6: Assemble Pipe TOP and Pipe BOT
1. Assemble Pipe TOP and Pipe BOT
2. Fix 4 Cover plates
Step 7: Mounting Pipe TOP and Pipe BOT with ceiling and ground
