Connection18

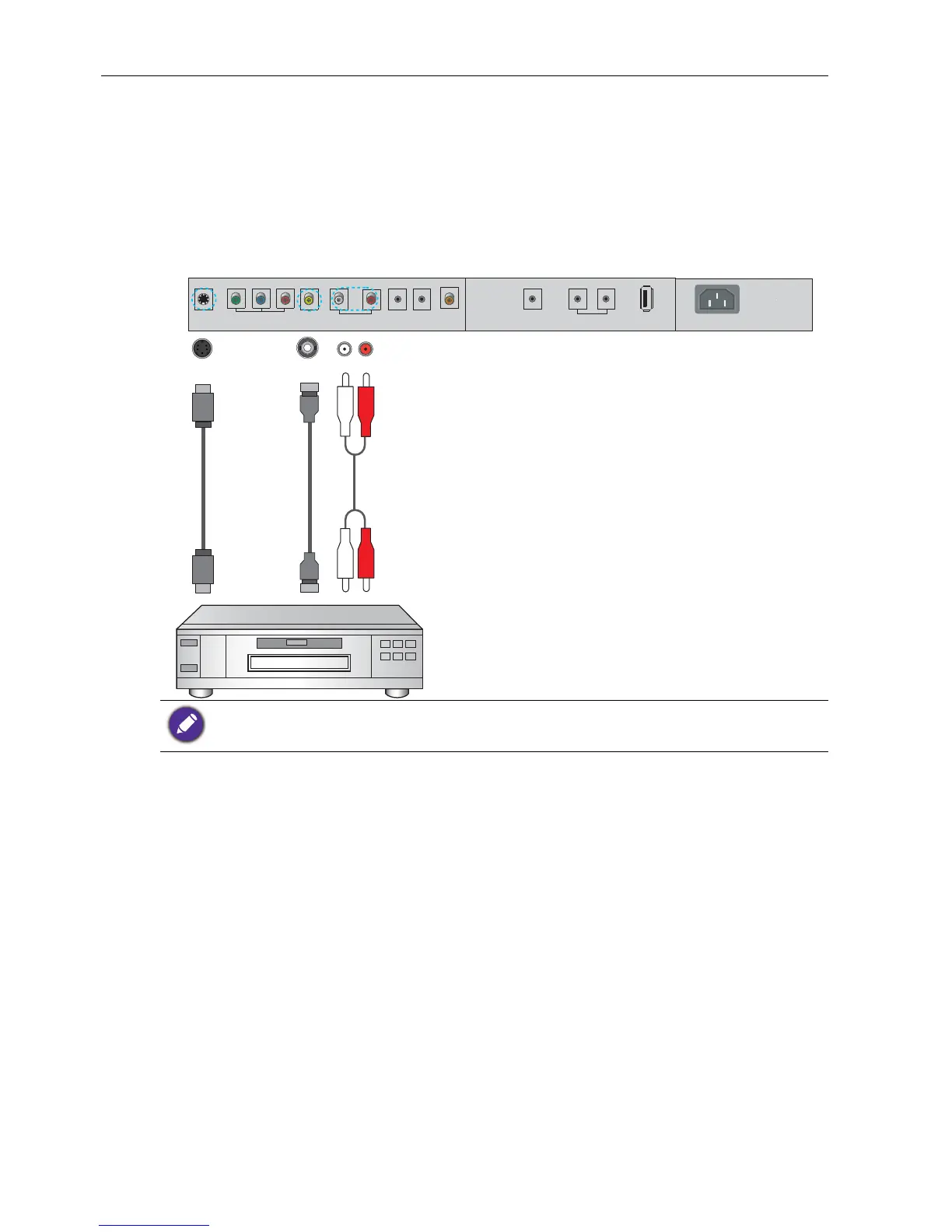

Connecting the AV and S-Video inputs
1. Connect the S-VIDEO or AV 1 jack on the display to the output jack on an A/V
device (such as a VCR) using an appropriate video cable.
2. Connect the VCR’s audio output jacks to the AV 1 jacks on the display using a
suitable audio cable.
3. To view video image from this input, press the INPUT button and press the AV
button on the remote control for the AV signal, or press the INPUT button
repeatedly for the S-Video signal.
The cables are not supplied and should be purchased separately.
Audio
cable
DVD player / VCR
AV
cable
S-Video
cable
To Next Page
