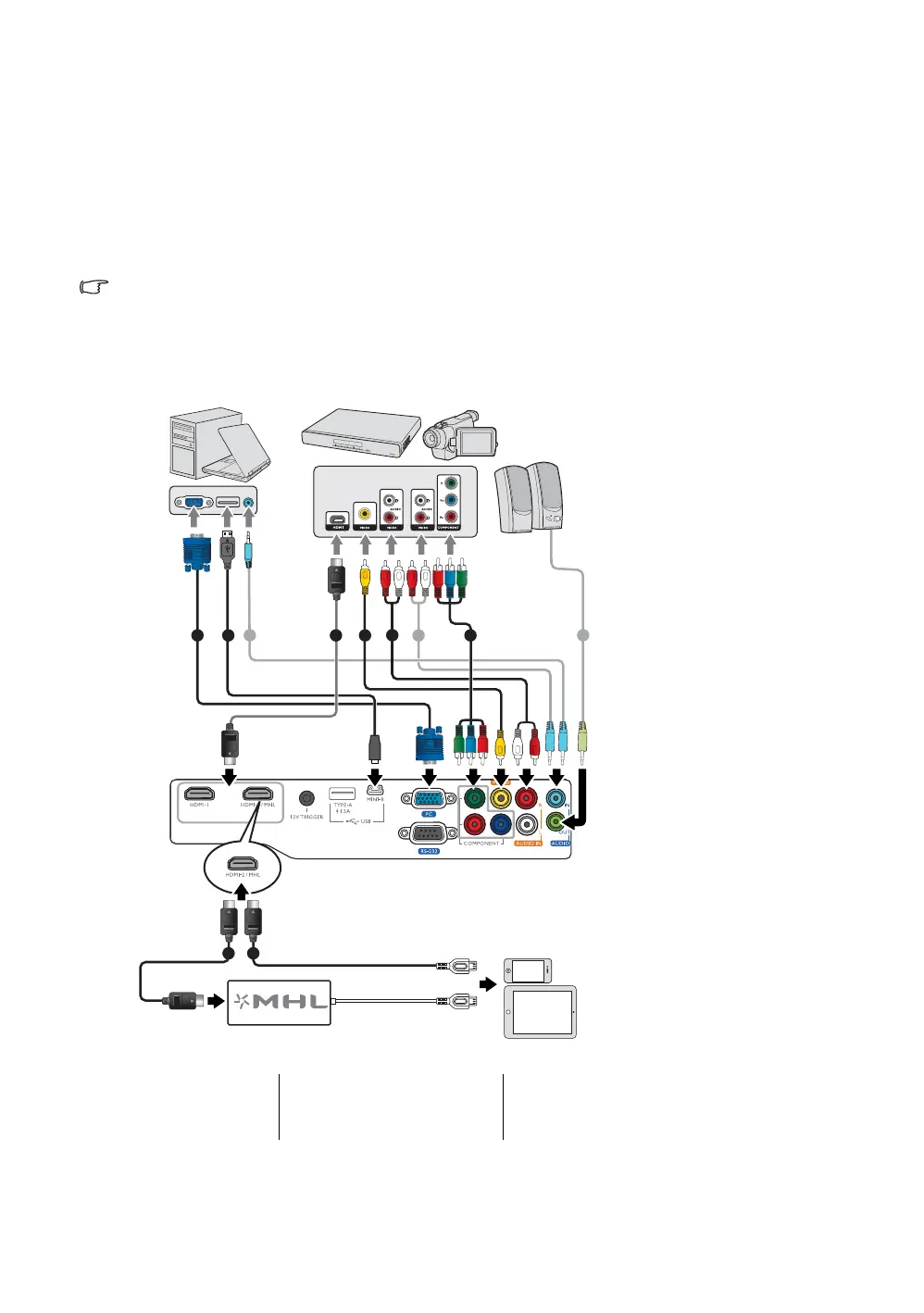

When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Make sure the cables are firmly inserted.
• In the connection illustrations shown below, some cables may not be included with the projector (see
Shipping contents). They are commercially available from electronics stores.
• The illustrations below are for reference only. The rear connecting jacks available on the projector vary
with each projector model.
*For updating the firmware.
7 651 4
2
7 73
3 8
Notebook or desktop computer
(VGA)
A/V device
Smartphone or tablet PC
1. VGA cable
2. USB cable*
3. HDMI cable
4. Video cable
5. Audio L/R cable
6. Component video cable
7. Audio cable
8. HDMI-Micro USB cable
Speakers
