3 - Installation
23
3.5 Power and Control Drawings
3.5.1 MX
2
ATL Synchronous Brushtype (Field Control) Solid State

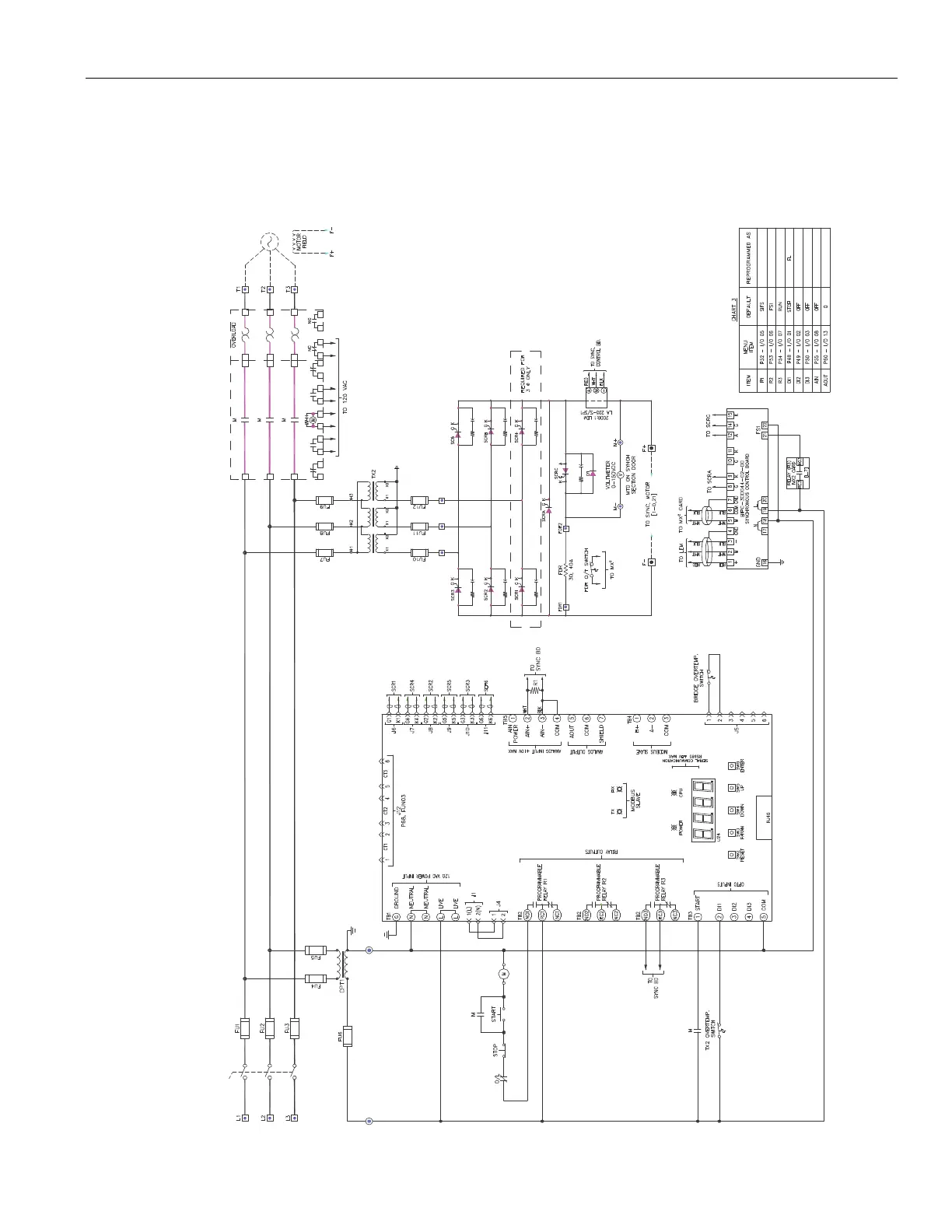

Figure 2: Sample Power Schematic for RB2 Low HP
