Doc No. 20-45-159 Page 50 of 60

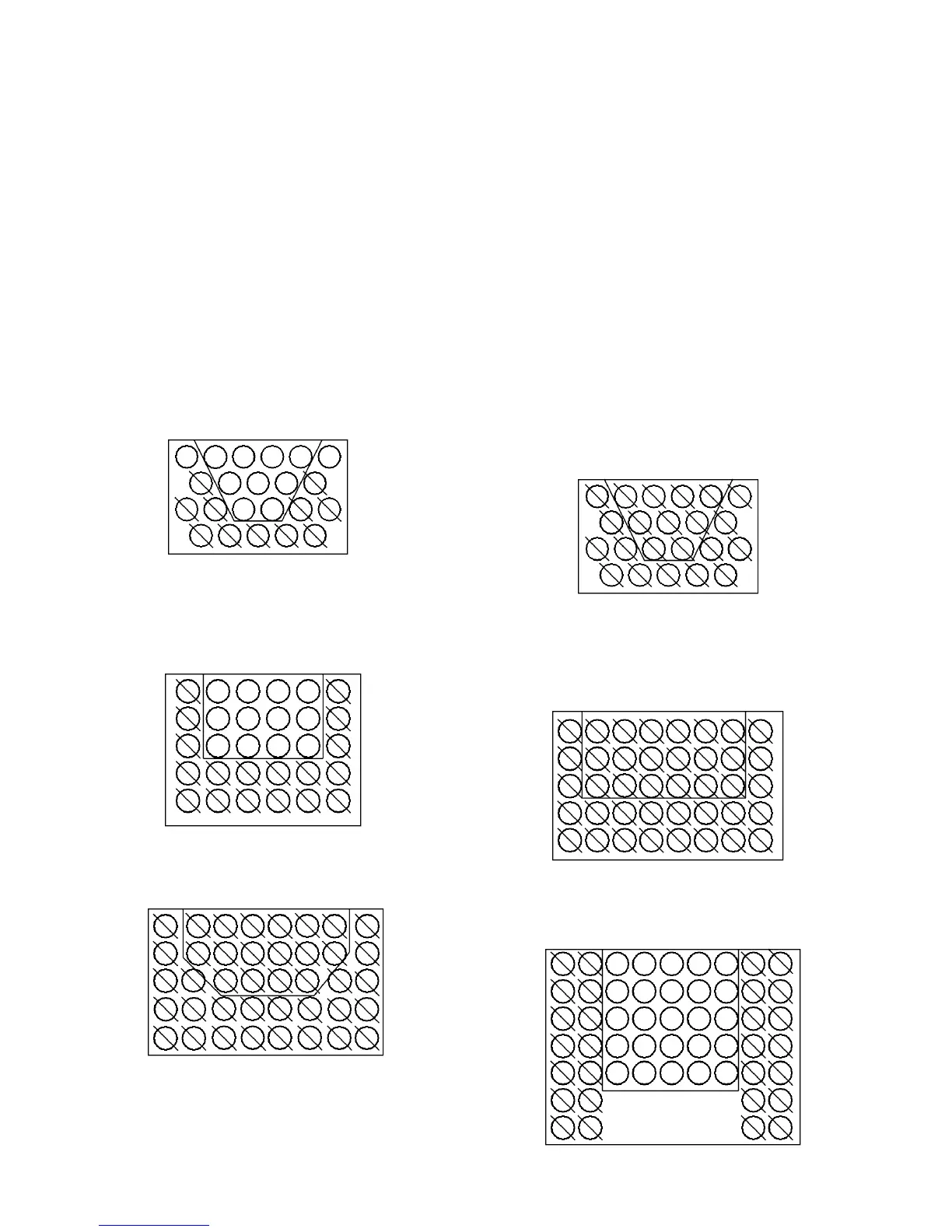

Turbulator Positions in Heat Exchanger
Model 60 Cabinets. 11 o
Turbulator Positions in Heat Exchanger
Model 85 Cabinets. 22 o
Turbulator Positions in Heat Exchanger
Models 120 & 135 Cabinets. 18 o
Turbulator Positions in Heat Exchanger
Models 180 & 205 Cabinets. 40 o
Turbulator Positions in Heat Exchanger
Models 235 & 300 Cabinets. 40 o
Turbulator Positions in Heat Exchanger
Model 375 Cabinets. 28 o
4.2.11 Report
A full and detailed service report should be prepared, it is
advised that the report is not completed until the heater has
been re-commissioned, where upon the completed report
can then be run through with the user.
4.3 Service Re-commissioning
The heater should be re-commissioned as follows, as per
section 3.1 through to section 3.4 inclusive.
This must be regarded as a necessary part of the heater
service. By the service engineer.
