Connectiing Addressable Analogue Devices
The control panel has 2 loops for addressable analogue devices.
WARNING Do not break off the Output module tab.
Each loop supports 99 addressable analogue fire detectors and 99 ana-
logue devices (Input modules, Conventional Zone modules, Output mod-
ules, Manual callpoints and Sounders).
Devices of the same type cannot have the same address, therefore, you
must assign a DIFFERENT address to each detector on the loop, and like-
wise for the modules.
+
Different device types (e.g. Fire detector and module) can have the same
address.

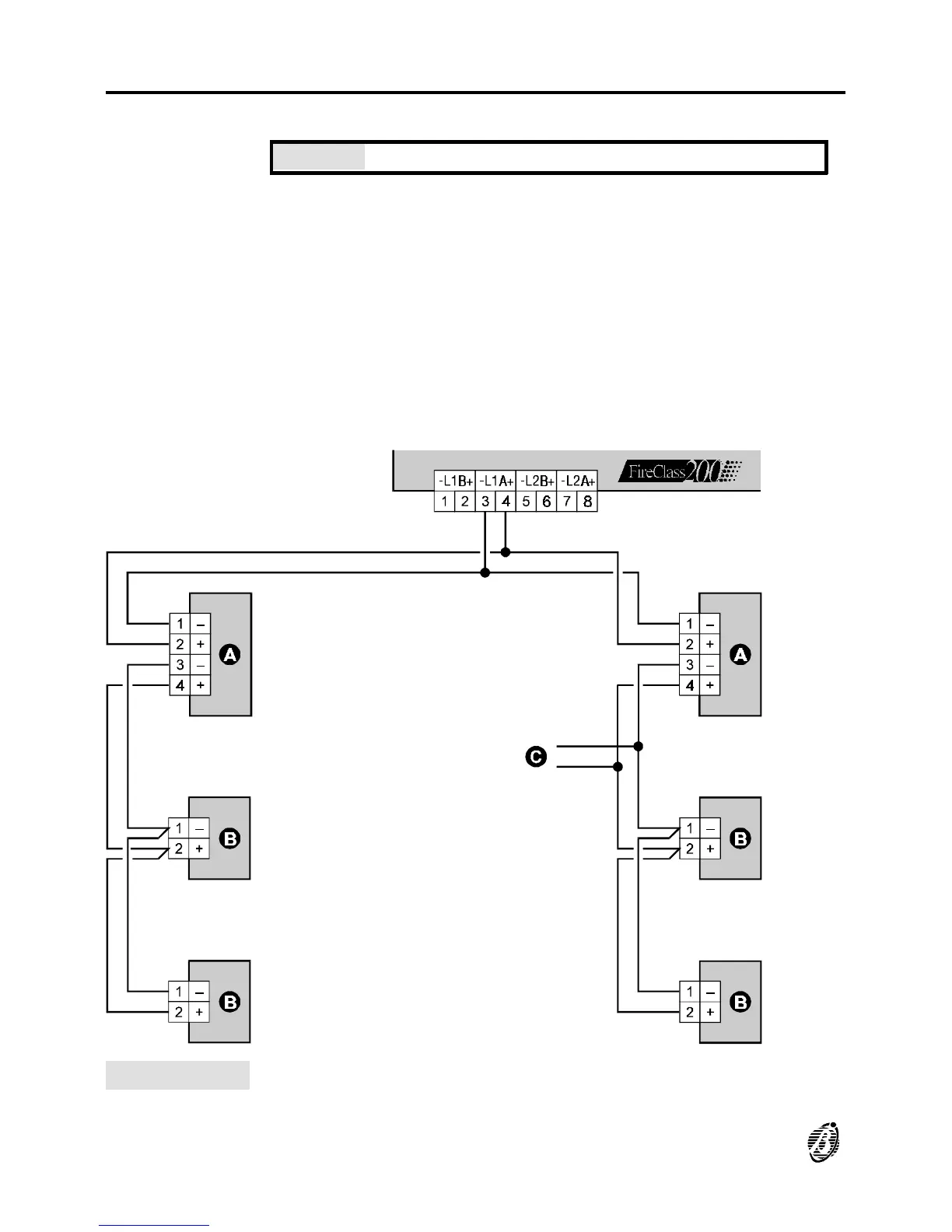

Figure 9 Wiring diagram of a 2 wire connection: a) Insulators; b) Compatible ana-
logue devices (Fire detector, Input modules, Output modules, Conventional
Zone modules, Manual callpoints); c) T connection.
26 Analogue Fire Control Panel FireClass200
