Output Expander (FC200/6OUT)
PART DESCRIPTION
46
Output status:
LED OFF > corresponding Output in standby status
LED ON > corresponding Output active
47
Address assignment jumper:
> Expander of Output no. 1 (Outputs no. 5 through no. 10)
> Expander of Output no. 2 (Outputs no. 11 through no. 16)
Loop Interface
PART DESCRIPTION
48 Loop 2 Status: polling (Red LED)
49 Loop 2 Status: response (Green LED)
50 Loop 1 Status: polling (Red LED)
51 Loop 1 Status: response (Green LED)

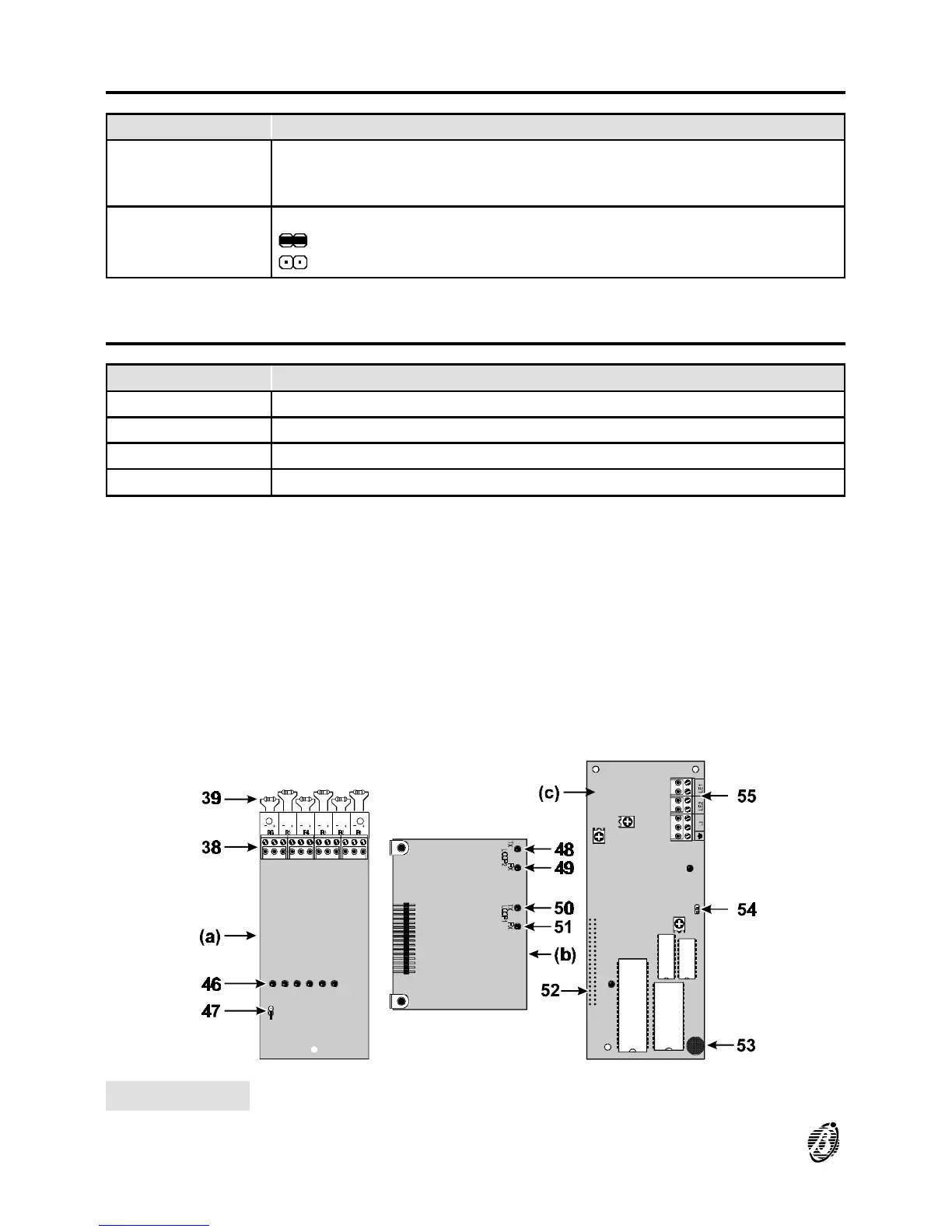

Figure 6 Parts of the FC200/6OUT Output Expander (a) and Loop Interface (b) and
Telecom module (c)
18 Analogue Fire Control Panel FireClass200
