PART DESCRIPTION
32 Connector for Keypad/Display
33 Connectors (2) FC200/6OUT Output expanders
34
Jumper to enable data storage:
> memory disabled (default)
> memory enabled
35 Microprocessor
36 Connector for FC200/COM Telecom module
37 Reserved jumper
38 Extractable terminal boards
39 EOL Resistor (2.700 ohm / red-purple-red-gold)
40 Power-supply connector
41 F 6.3A 250V protection fuse against battery polarity inversion
42 F 3.15A 250V protection fuse for +AUX output
43 F 3.15A 250V protection fuse for the power supply line of the RS458 bus
44 RS232 Serial Port
45 Loop interface connector

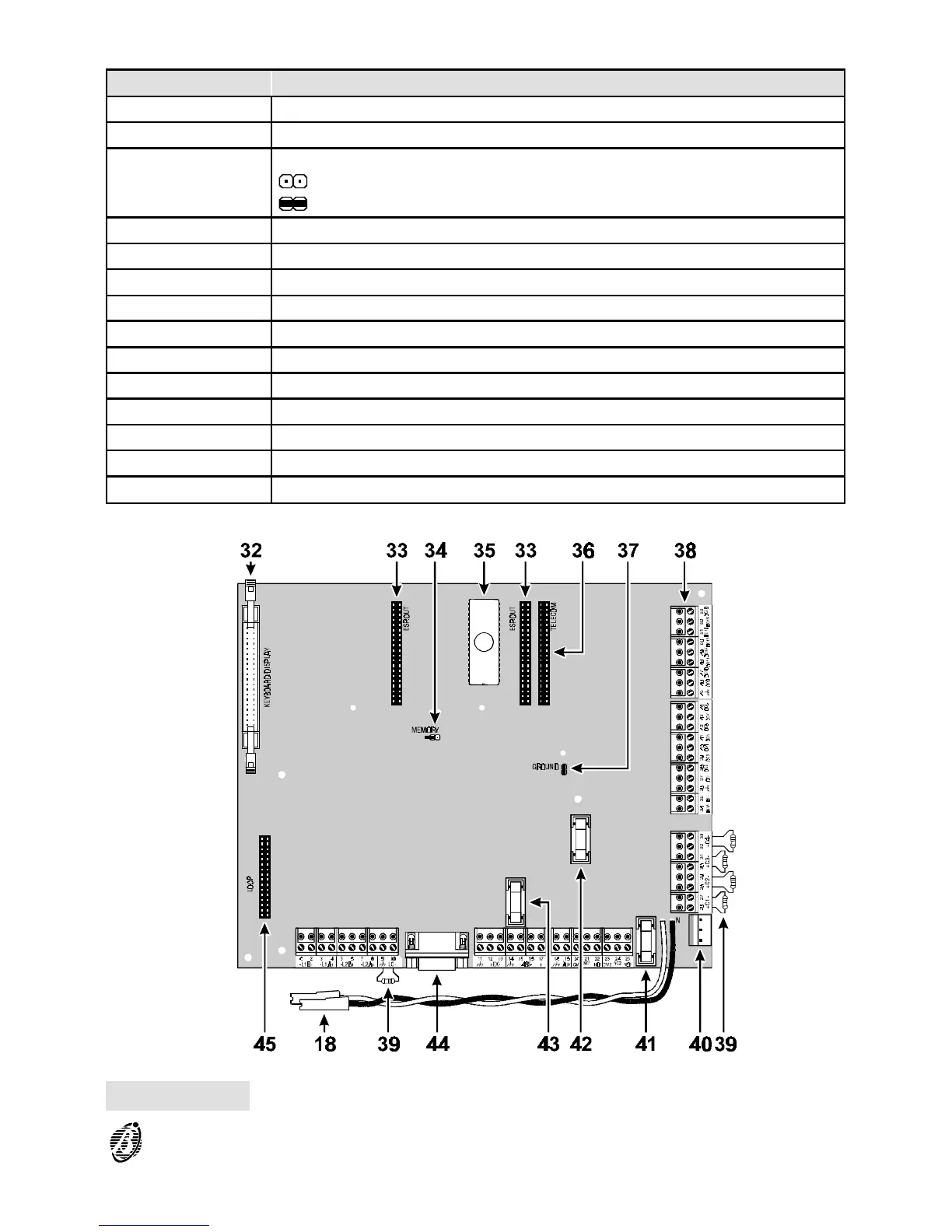

Figure 5 Main board parts
