Bentone B 80-3R - Working Field B 80-3; Setting of Brake Plate and Air Flow

8
Bentone
Burner, Type a b c d
B80-3 3,5-4,0 8,0-10,0 2,0-3,0 10,0-13,0
a
d
b
c

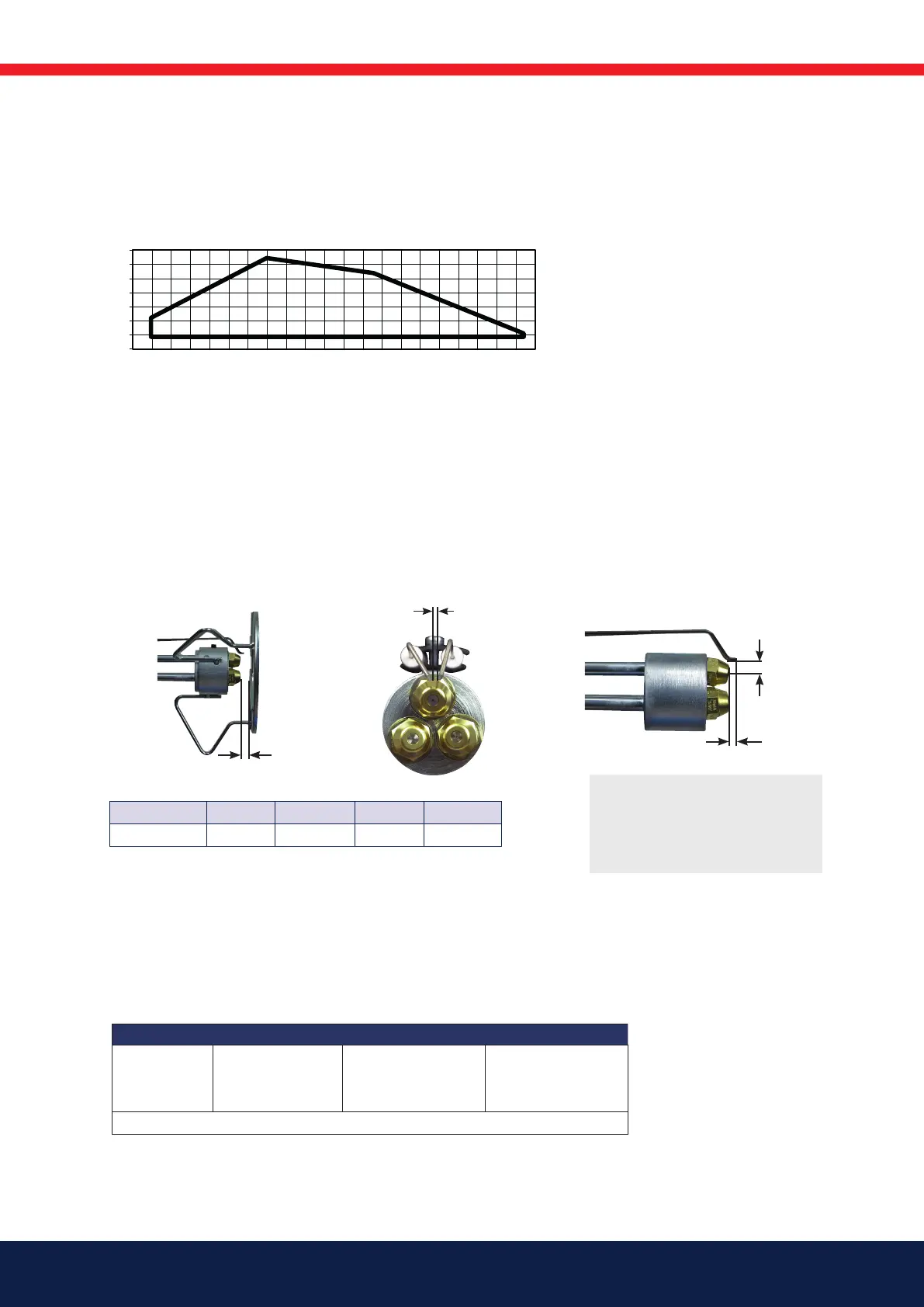

2.2 Working field B 80-3
50-211 kg/h
600-2500 kW
2.3 Setting of brake plate and air flow
2.3.1 Electric Specification
Burner correspond to IP 20
-4
0
4
8
1
2
1
6
2
0
2
4
500 700 900 1100 1300 1500 1700 1900 2100 2300 2500
mbar
kW
Type Motor supply Main supply Sound
B 80-3
230/400V
20,0/11,5A
1N230V 2,5A 50Hz
IP20
89 dBA ± 0,5 dBA
Max operating current, see data plate
!
*NB It is important that
the spark does not strike
against the brake plate or
nozzle
