Bentone BG 550 - Page 9

9 Bentone
General

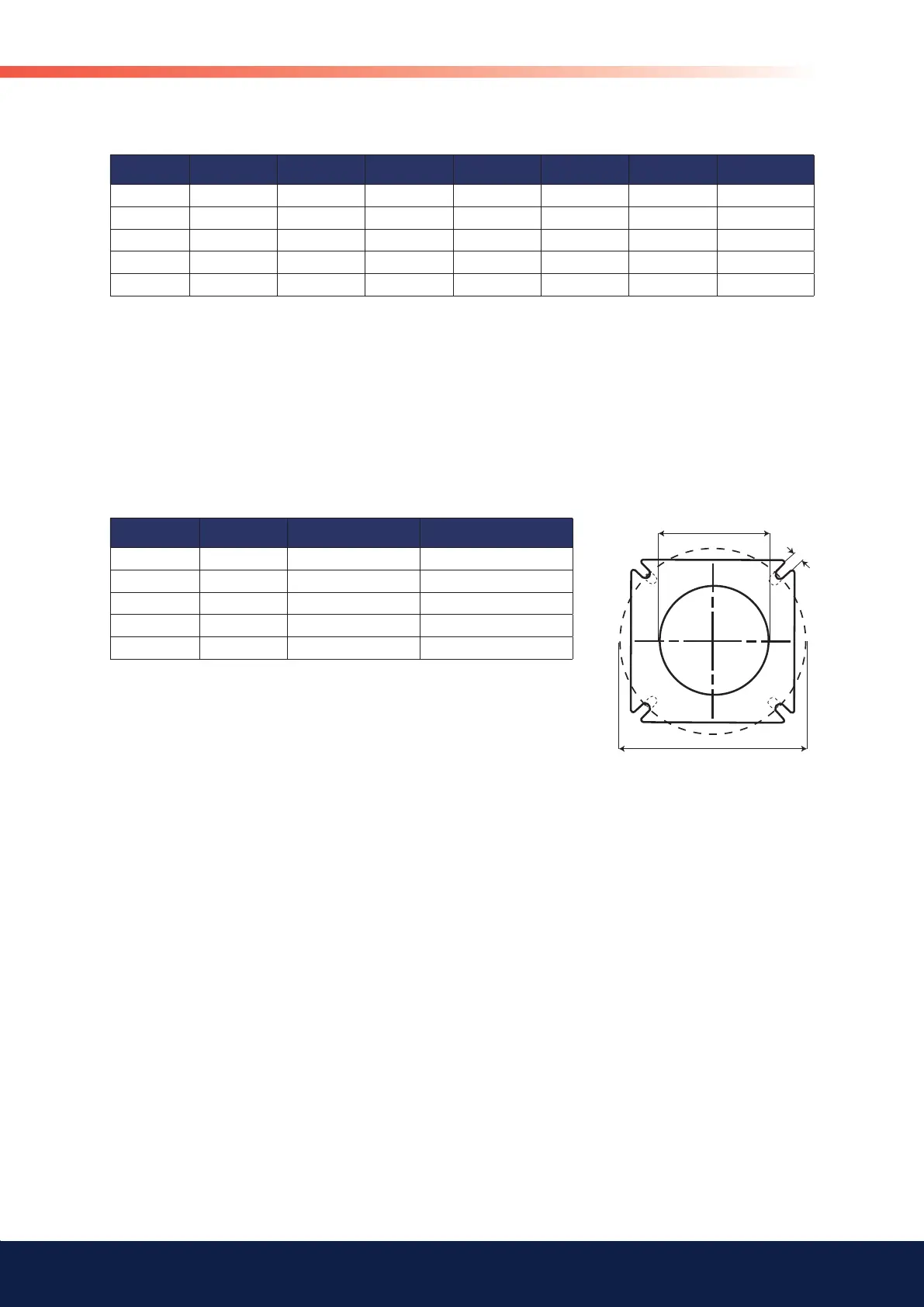

2.2.1 Heat generator connection dimensions
* The above dimensions are max. measurements. Depending on the
components used, the measurements may vary.
** Min. recommended distance to floor.
D E F G H I **J
BG 550
660 320 400 *590 *743 343 200
BG 650
660 320 400 *590 *743 343 200
BG 700
820 410 510 *730 *970 420 200
BG 800
820 410 510 *730 *1022 472 200
BG 950
890 410 510 *730 *1027 472 200
K
L
M
K L M
BG 550
M12 (Ø 210) Ø 255-290 Ø 170
BG 650
M12 (Ø 210) Ø 254-280 Ø 190
BG 700
M14 (Ø 280) Ø320-380 (Ø 210) Ø 230
BG 800
M14 (Ø 280) Ø320-380 (Ø 210) Ø 270
BG 950
M14 (Ø 340) Ø420-490 (Ø 260) Ø 290
