2. Technical data
2.1 Burners are intended for use at:
• Water heating generators
• Steam generators
• Industrial applications
• Hot air generators

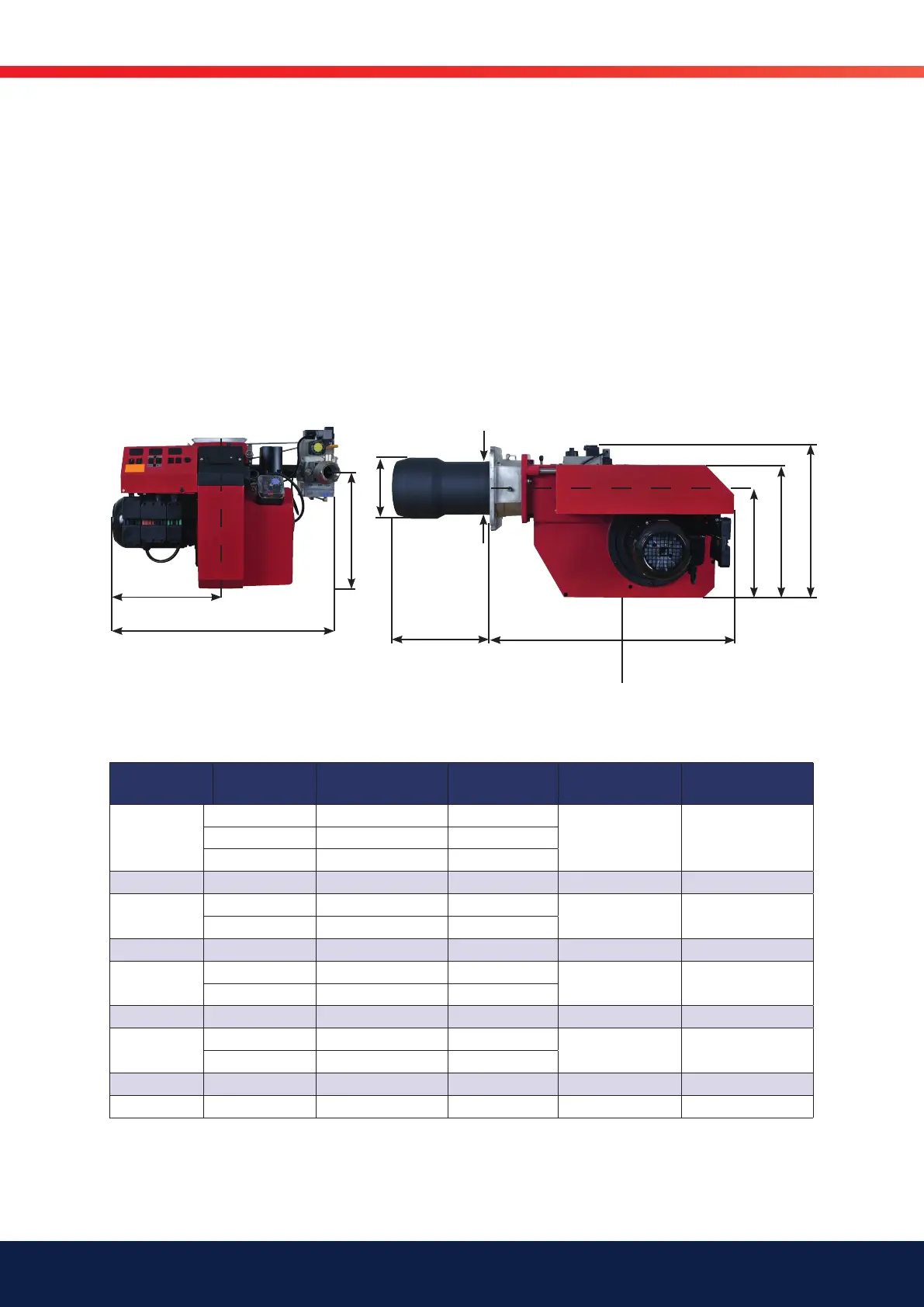

2.2 Dimensions
Type
Length of
burner tube
Flange
measure A
Burner tube
measure B
Burner tube
measure C
BG 550
Standard 1 256 226
162 162Standard 2 356 326
Standard 3 456 426
BG 650
Standard 1 316 286
184 162
Standard 2 416 386
BG 700
Standard 363 328
220 205
Långt utförande 663 628
BG 800
Standard 396 361
261 205
Långt utförande 696 661
BG 950
Standard 1 350 310 280 254
**J
Dimensions stated in mm
