BEP TS1 - Case 3: Correct Gasket and Washers; Case 4: Protrusion Not Touching Frame; Case 5: Measuring to Tank Bottom

INST-TS1-V13
18/11/10
Page 7

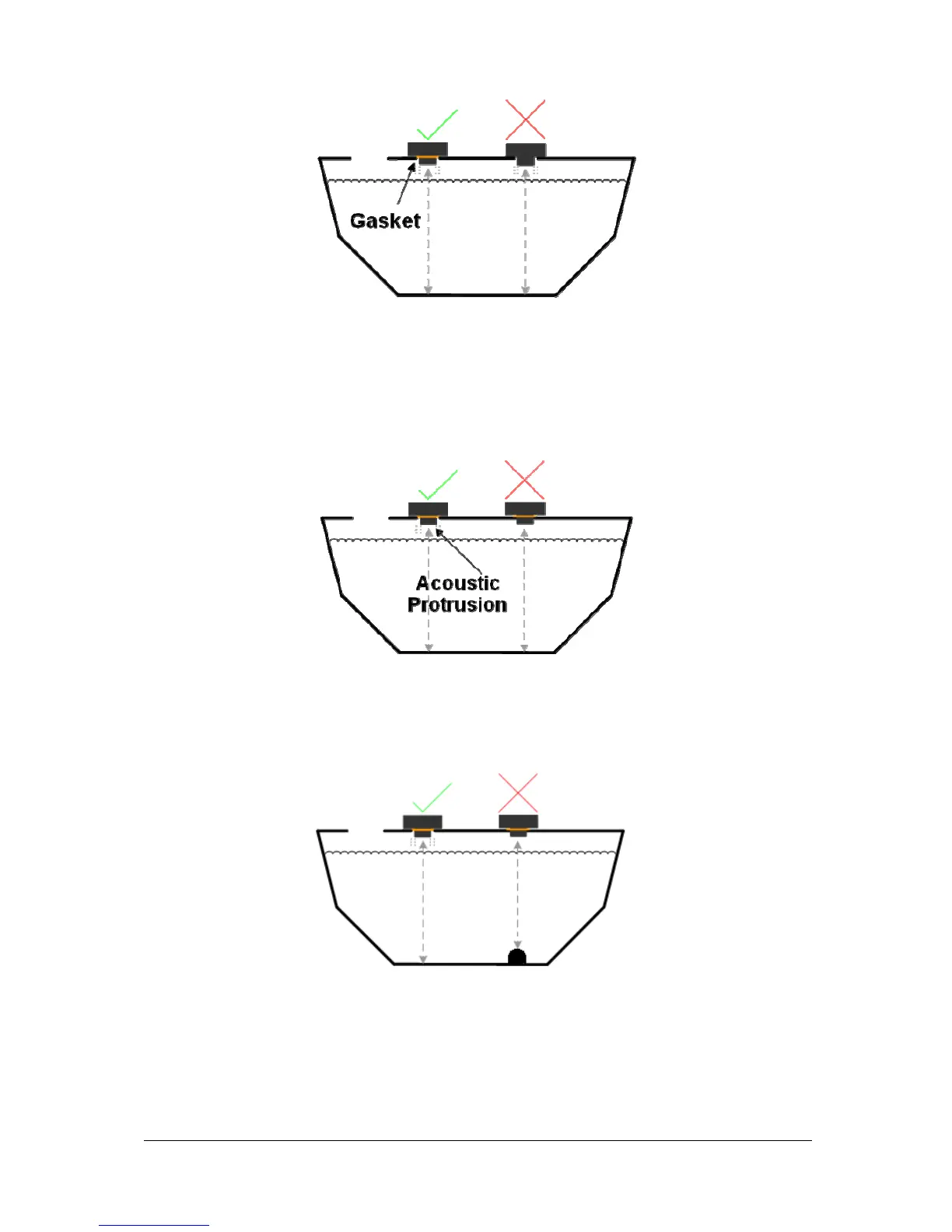

Case 3
Correct BEP Gasket must be used!
Use 5 washers provided, washers must be placed under screw heads to prevent rubber lid
damage.
Case 4
Acoustic protrusion must not touch the tank frame!
Case 5
TS1 must be mounted so it can see the bottom of the tank if the liquid is to be measured to
the bottom.
