INST-TS1-V13
18/11/10
Page 8

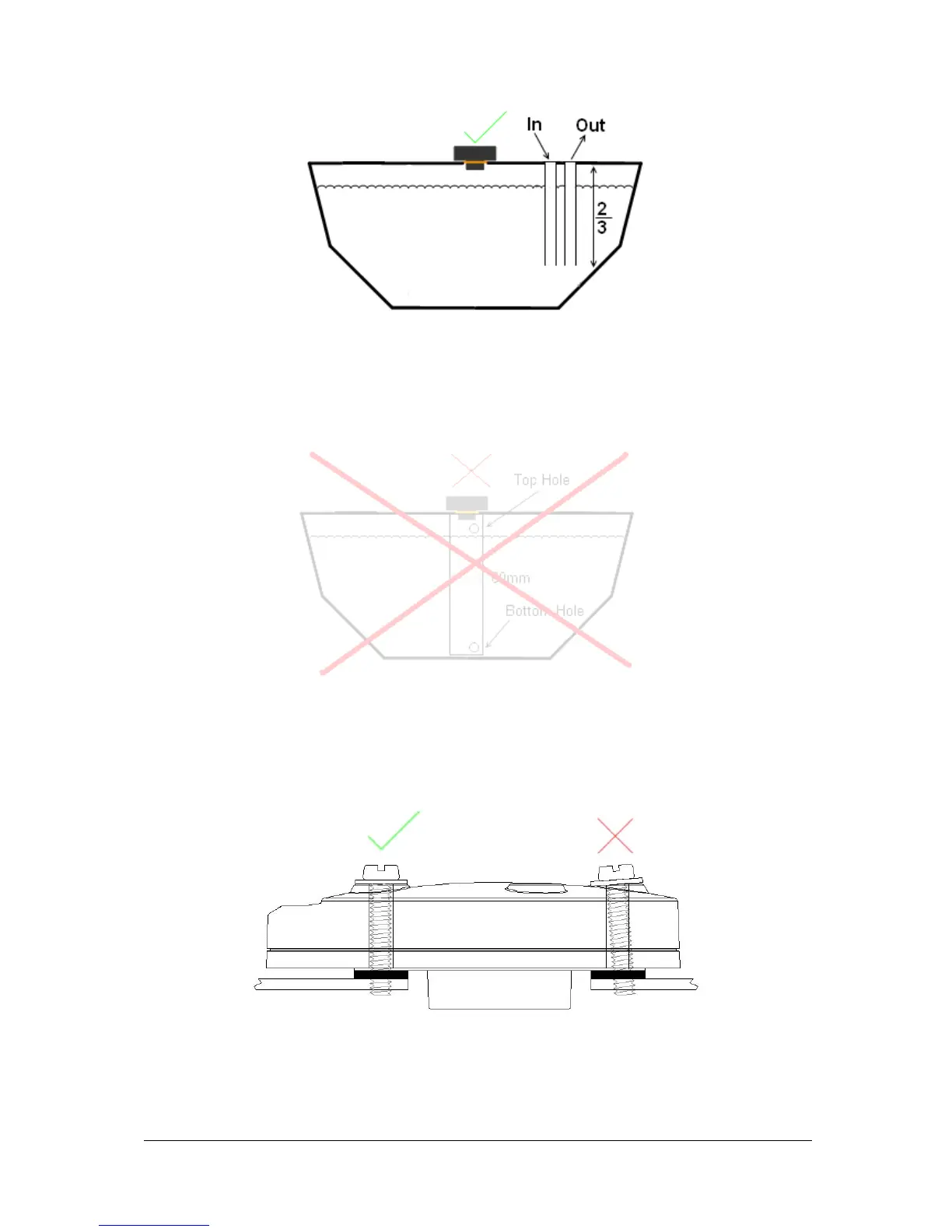

Case 6
Inlet and Outlet piping must go in at least
⅔rds of the way in to the tank on grey and black
water tanks to stop water turbulence when filling.
Case 7
Do not fit the TS1 with a tube.
Case 8
Ensure bolts and mounting holes are aligned properly to keep plastic body isolated
acoustically from tank. Do not over tighten the screws.
