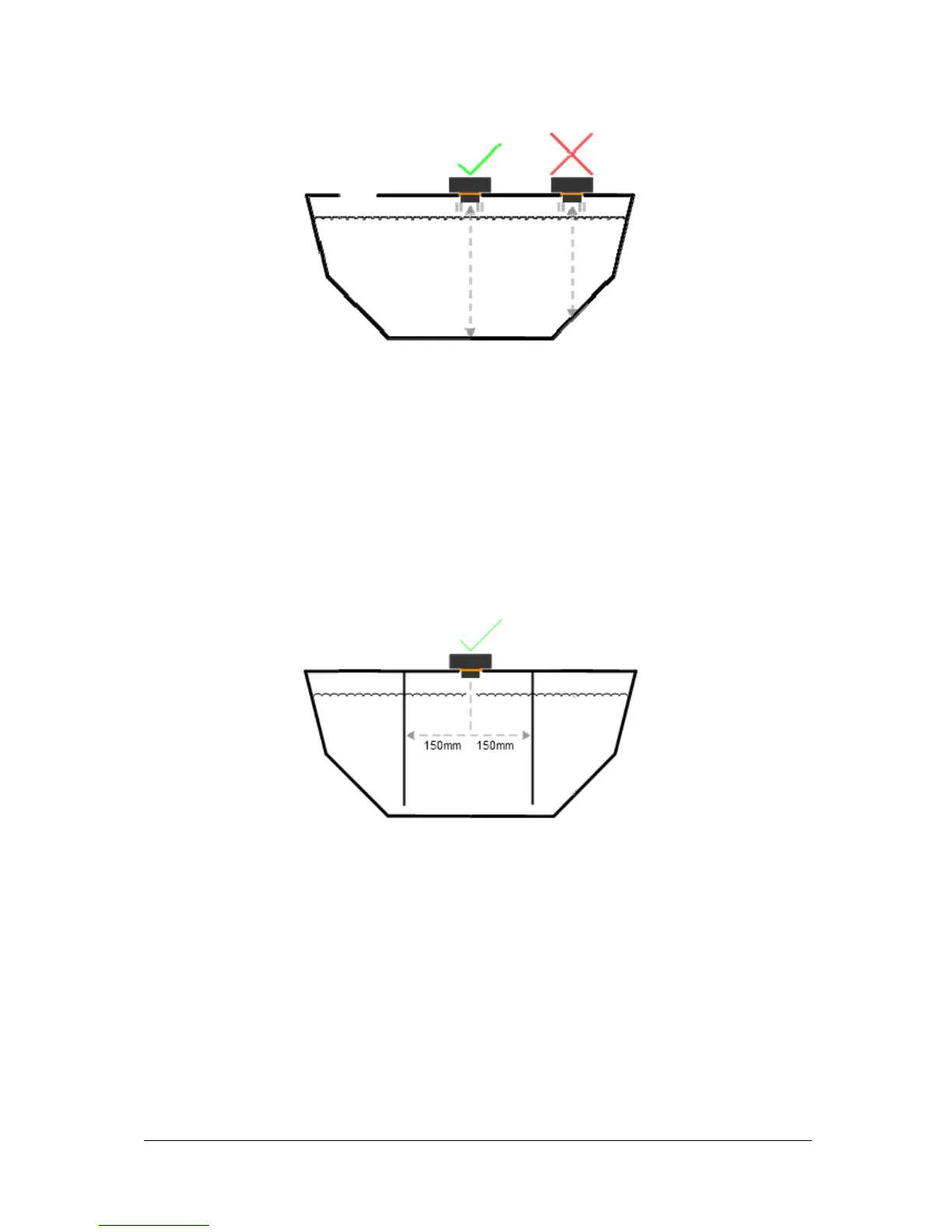

Case 1
TS1 must be mounted at the deepest tank point!
It is recommended the sender is mounted in the middle of the tank, this is particularly
important on low or no baffled tanks that are mounted in moving vehicles or vessels. This
allows the TS1 to average waves of fluid to the correct level when the depth is varying due to
wave slop.
Case 2
TS1 must be mounted at least 150mm from a vertical tank baffle, tank walls and piping.
