200
ROMÂNĂ
- desfaceţicele2şuruburi
B
- deplasaţiînaintecarcasa
C
- deplasaţicarcasa
C
însus,eliberând-odincârligelesuperioare
Modele 11-13 Modele 17
B
C
C
B

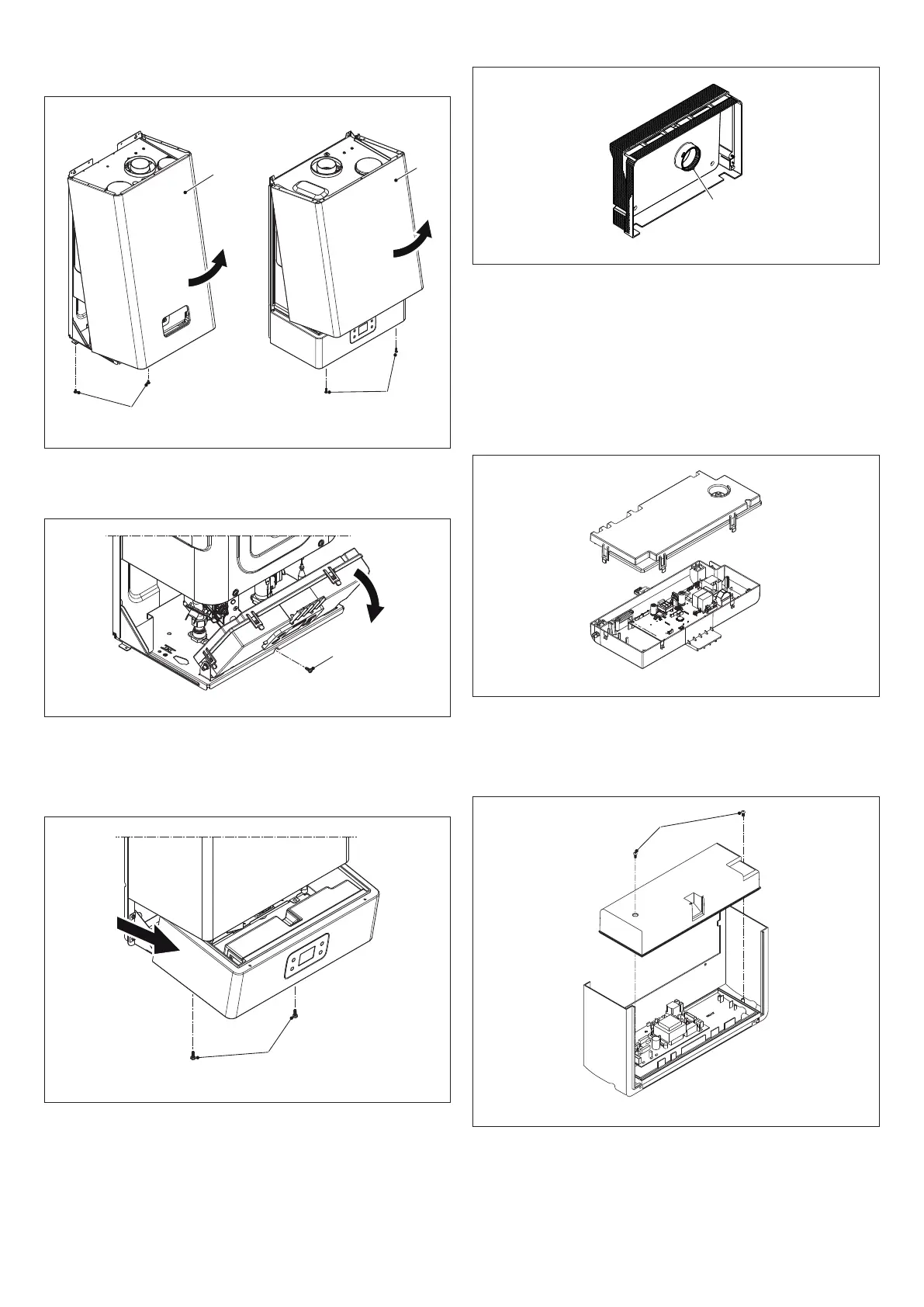

Fig. 44
Modele 11-13
Pentruaaveaacceslapanouldecomandă,scoateţişuruburiledexare
D
şirotiţi-l
D
Fig. 45
Modele 17
Pentruadeschidepanouldecomandă,procedaţidupăcumurmează:
- scoateţişuruburile
C
- glisaţi panoul de comandă spre exterior şi rotiţi-l până în poziţia de
oprire
D
Fig. 46
Lanaluloperaţiilordescrisemaisus,montaţilaloctoatecomponentele,
acţionândînsensinvers.
b
Garnitura
F
trebuiesăseaeîntotdeaunaînlocaşulsăuiniţial.
F
Fig. 47
6.3 Accesul la placa electronică şi de modulare
b
Înaintedeainterveniasupraboilerului,decuplaţialimentareaelec-
trică
delaîntrerupătorulomnipolardepeliniaelectricădealimen-
tare.
Modele 1
1-13
- Pentruaaveaacceslaechipamenteleelectronice,scoateţicarcasaşi
rotiţipanouldecomandă
- desfaceţicapaculşiveţiaveaacceslaplacă.
Fig. 48
Modele 17
- Pentruaaveaacceslaechipamenteleelectronice,scoateţicarcasaşi
extrageţipanouldecomandă
- scoateţicele2şuruburi
G
- scoateţicapaculşiveţiaveaacceslaplacă.
G
Fig. 49
