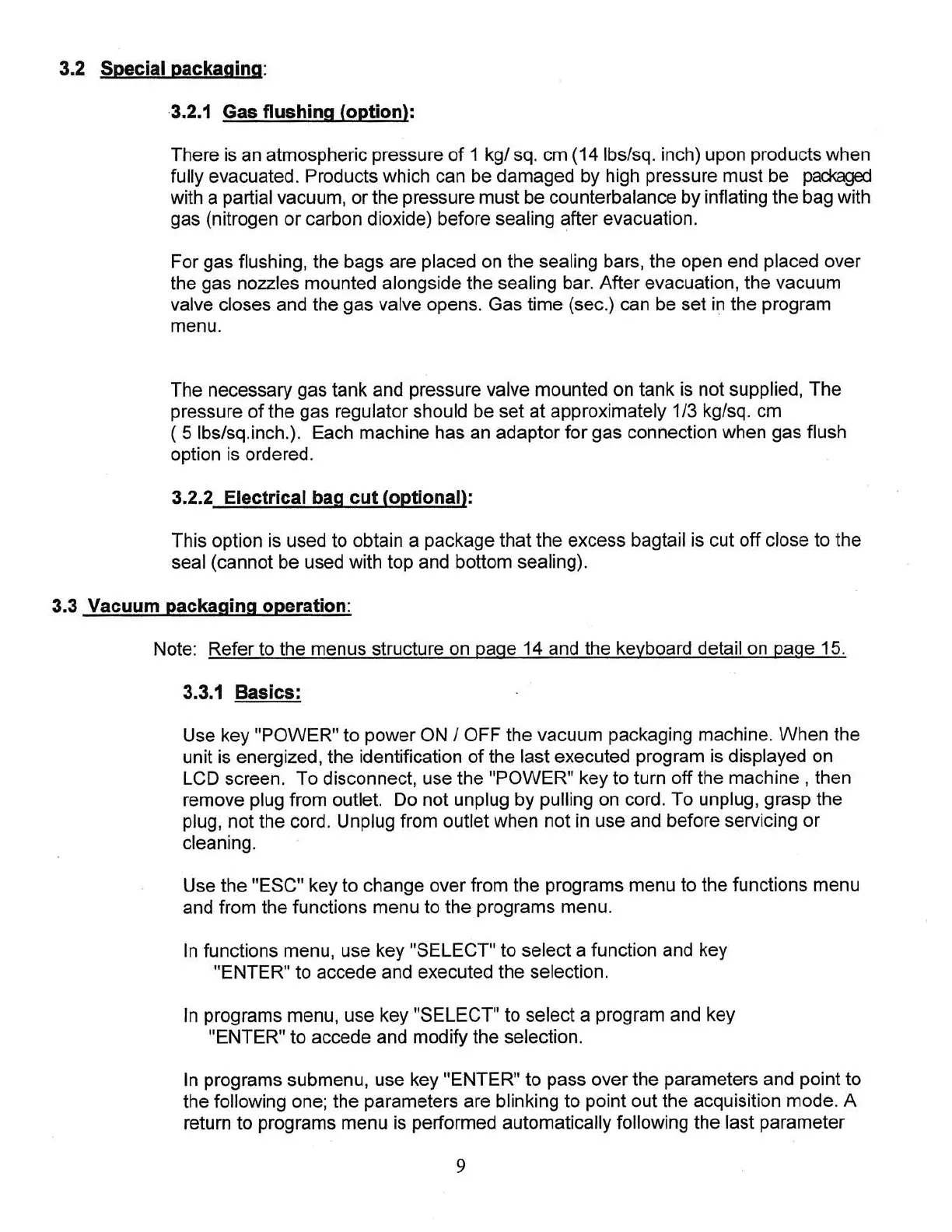

3.2 Special packaging:
·3.2.1 Gas flushing (option):
There is an atmospheric pressure
of
1 kg/ sq. cm (14 lbs/sq. inch) upon products when
fully evacuated. Products which can be damaged
by
high pressure must be
packaged
with a partial vacuum, or the pressure must be counterbalance
by
inflating the bag with
gas (nitrogen or carbon dioxide) before sealing after evacuation.
For gas flushing, the bags are placed on the sealing bars, the open end placed over
the gas nozzles mounted alongside the sealing bar. After evacuation, the vacuum
valve closes and the gas valve opens. Gas time (sec.) can be set in the program
menu.
The necessary gas tank and pressure valve mounted on tank is not supplied, The
pressure
of
the gas regulator should be set
at
approximately 1 /3 kg/sq. cm
( 5 lbs/sq.inch.). Each machine has an adaptor
for
gas connection when gas flush
option is ordered.
3.2.2 Electrical bag cut (optional):
This option is used to obtain a package that
the
excess bagtail is cut
off
close to the
seal (cannot be used with top and bottom sealing).
3.3 Vacuum packaging operation:
Note: Refer to the menus structure on page 14 and the keyboard detail on page 15.
3.
3.1
Basics:
Use key "POWER" to power ON / OFF the vacuum packaging machine. When the
unit is energized, the identification
of
the last executed program is displayed on
LCD screen.
To
disconnect, use the "POWER" key to turn
off
the
machine,
then
remove plug from outlet. Do not unplug
by
pulling on cord.
To
unplug, grasp
the
plug, not the cord. Unplug from outlet when not in use and before servicing
or
cleaning.
Use the "ESC" key to change over from the programs menu to the functions menu
and from the functions menu to
the
programs menu.
In functions menu, use key "SELECT" to select a function and key
"ENTER" to accede and executed the selection.
In programs menu, use key "SELECT" to select a program and key
"ENTER"
to
accede and modify the selection.
In programs submenu, use key "ENTER" to pass over the parameters and point
to
the following one; the parameters are blinking to point out the acquisition mode. A
return to programs menu is performed automatically following
the
last parameter
9
