BERNINA International AG · Seestrasse 161 · CH-8266 Steckborn · Switzerland 12
Chapter 4 – Replacing assemblies / parts
4.1 Removing and replacing covers.
(X and Y-Carriage covers)
Removing_covers
Replacing_covers

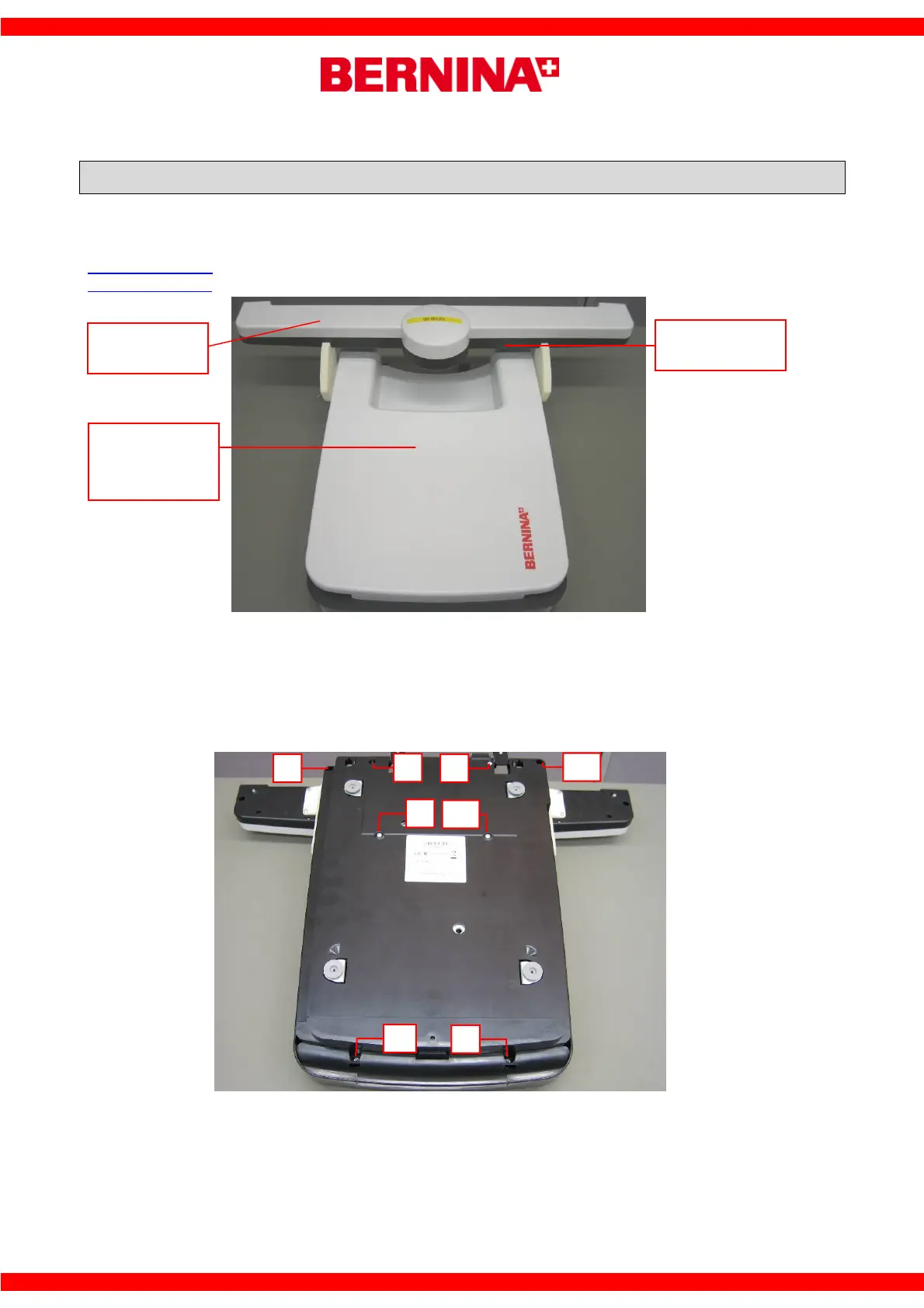

Removing the upper X-Carriage cover:
• Place the Y-Carriage in the position shown.
• Remove the 2 screws a + b (T10 M3x8).
• Remove the 6 screws c (T20 M4x15).
• Turn the module over and remove the cover.
c
c
c
c
a
b
c
c
Upper Y-Arm
cover
Upper X-
Carriage
cover
Lower Y-Arm
cover
