Bernina Bernette 340 deco - Embroidery Computer Overview; Name of Parts

Embroidery Computer Overview4

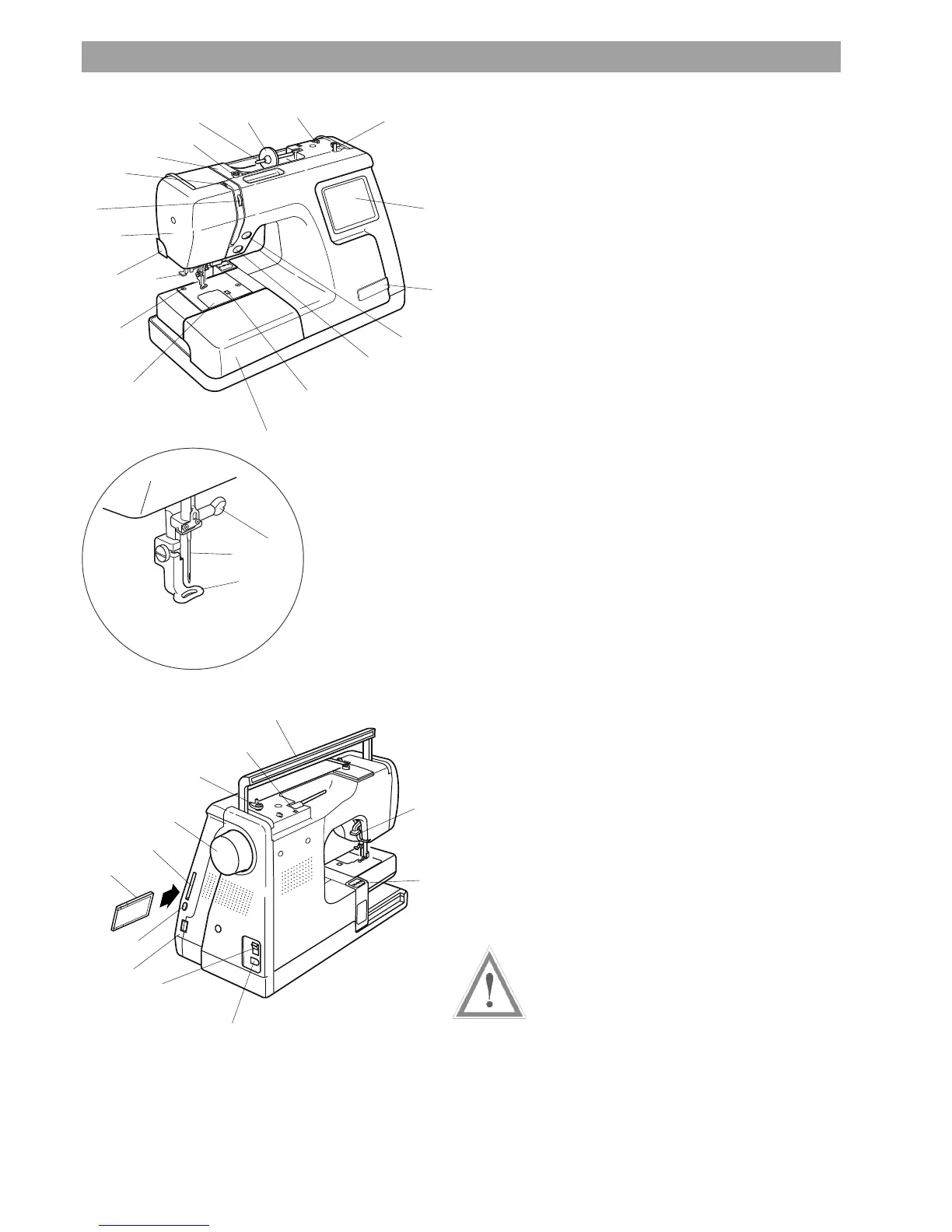

Name of Parts
1. LCD touch panel
2. Bobbin winder spindle
3. Bobbin thread cutter
4. Spool holder (large)
5. Spool pin
6. Bobbin winding thread guide
7. Thread guide
8. Thread take-up lever
9. Thread tension dial
10. Face plate
11. Thread cutter
12. Needle threader
13. Needle plate
14. Hook cover plate
15. Extension table (accessory box)
16. Hook cover plate release button
17. Start/Stop button
18. Thread Cutter button
19. Pocket for scissors
20. Needle clamp screw
21. Needle
22. Embroidery foot
23. Carrying handle
24. Hole for extra spool pin
25. Bobbin winder stopper
26. Handwheel
27. Design Card slot
28. Design Card (optional accessory)
29. Card eject button
30. USB Stick socket
31. Power switch
32. Machine socket
33. Carriage (for embroidery)
34. Presser foot lifter
Caution:
• Alwaysprovidesufficientclearancefortheembroiderycarriage
behind your machine before starting the machine.
• Donotforcetomovethecarriagebyhand.
• Returnthecarriagetotheidlepositionbeforeturningthepower
off. Use the keys Utility and Return Carriage as described on
page 25.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
18
20
22
21
34
23
24
25
26
27
28
29
31
32
33
30
