REMOVING THE OVEN DOOR
The oven door can easily be removed as follows:

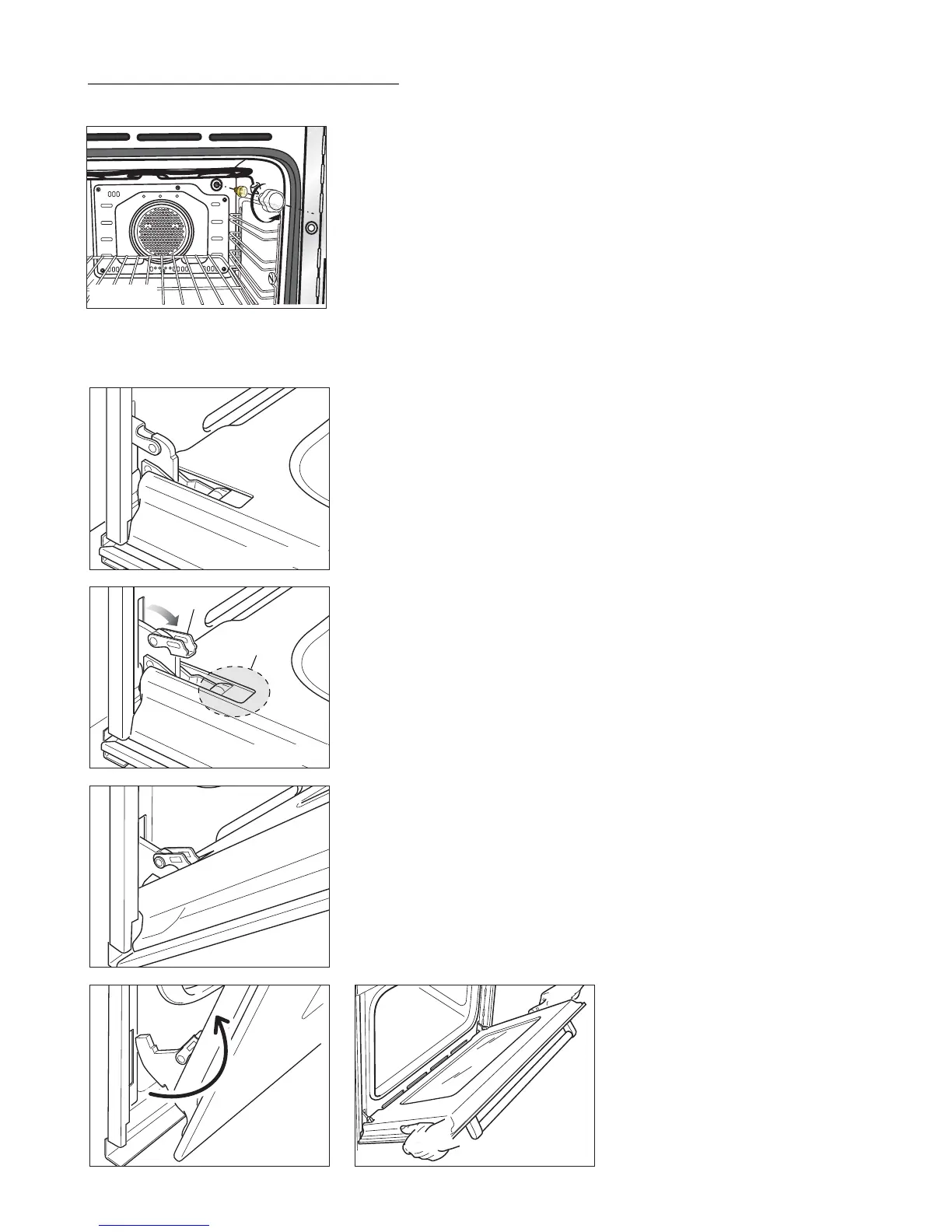

– Open the door to the full extent (fig. 4.4a).
– Open the lever “A” completely on the left and right hinges (fig. 4.4b).
– Hold the door as shown in fig. 4.4.
– Gently close the door (fig. 4.4c) until left and right hinge levers “A” are hooked to part
“B” of the door (fig. 4.4b)
– Withdraw the hinge hooks from their location following arrow “C” (fig. 4.4d).
– Rest the door on a soft surface.
– To replace the door, repeat the above steps in reverse order.
REPLACING THE OVEN LIGHT
Before any maintenance is started involving electrical parts of the appliance, it must be
disconnected from the power supply.
– Let the oven cavity and the heating elements cool down;
– Switch off the electrical supply;
– Unscrew the protective cover (fig. 4.3);
– Unscrew and replace the bulb with a new one suitable for high temperatures (570°F)
having the following specifications: 220/240V 50/60Hz, 15W, E14
– Refit the protective cover
NOTE: Oven bulb replacement is not covered by your guarantee
1
2
Fig. 4.3

