3. INSTALLATION INSTRUCTIONS

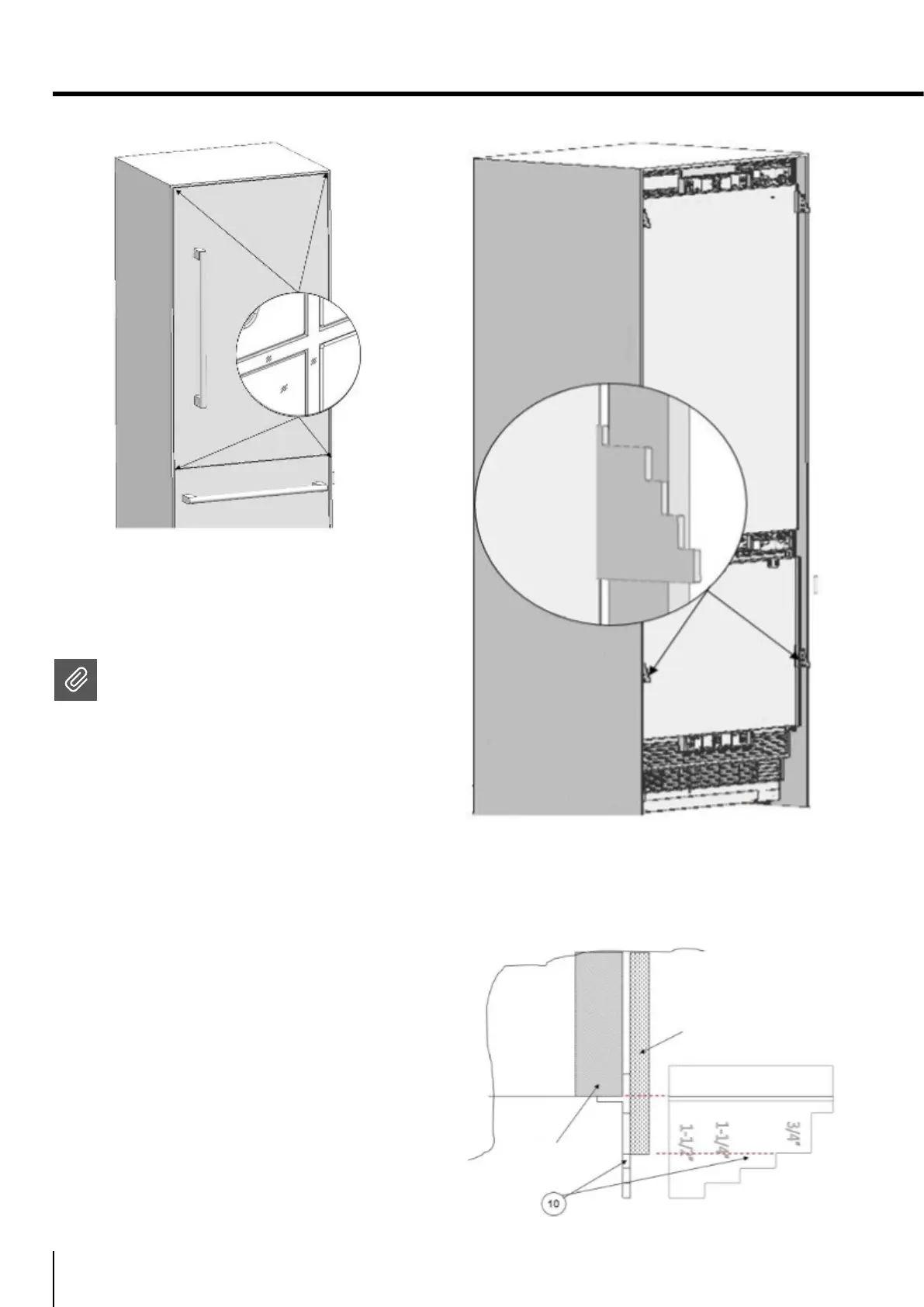

• For panel-ready units, the refrigerator should be
installed at a depth that takes into consideration
the custom overlay panel thickness, so as to
ensure a flush installation, if desired.
NOTE:
It is important to align the upper edge of
the freezer drawer when aligning the unit,
as its height and position are fixed. All of
the other panels can be adjusted using
the adjustment mechanisms built into the
mounting hardware. As shown below, an
installation depth template tool is provided
for your convenience.
• The position of the level adjustment part (#10)
must be adjusted based on the thickness of the
door. It can adjust the level for 4 dierent door
thicknesses.
Cabinet side panel
Refrigerator
3/4"
15/16"
1-1/4"
1-1/2"
15/16"
