Beta RR 125 series User Manual

8
1

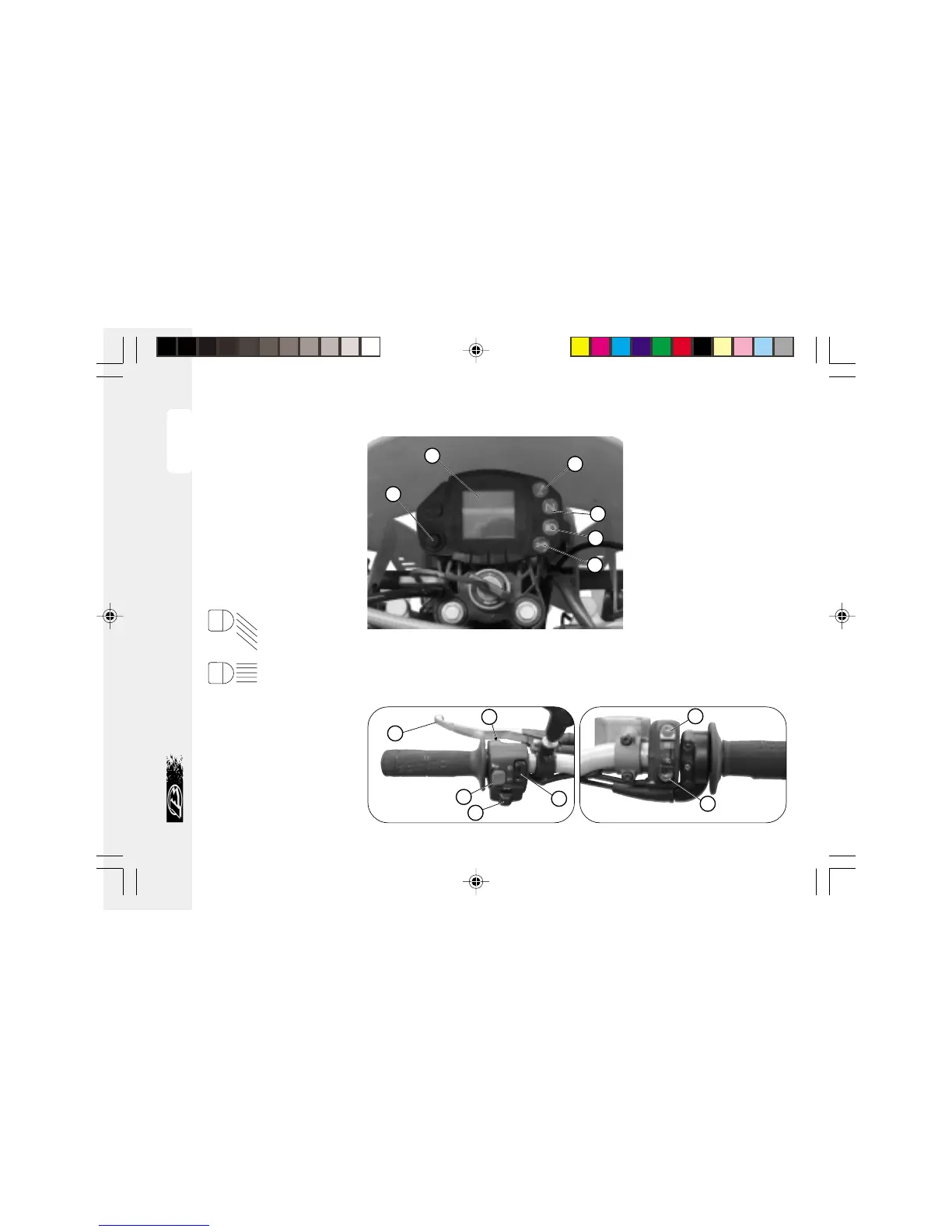

GENERAL INFORMATION
CONOSCENZA DEL VEICOLO
COMANDI HAND DRIVE
1 LCD
2 Tasto MODE
3 Spia indicatori direzione
4 Spia accensione luci
abbaglianti
5 Spia indicatore folle
6 Spia cavalletto abbas-
sato
7 Leva comando frizione
8 Pulsante avvisatore acu-
stico
9 Commutatore luci
10 Pulsante abbaglianti
11 Pulsante indicatori di di-
rezione
12 Pulsante accensione
13 Pulsante stop motore
1 LCD display
2 MODE button
3 Indicator warning light
4 High beam warning light
5 Neutral indicator
6 Stand-down warning
light
7 Clutch lever
8 Horn button
9 Dip switch
10 High beam switch
11 Indicator switch
12 Start button
13 Engine stop button
= luci anabbaglianti
=
low light
2
1
6
5
4
3
8
9
7
= luci abbaglianti
=
high light
10
11
12
13

Beta RR 125 series Specifications

General

Displacement	124.8 cc
Cooling System	Liquid cooled
Compression Ratio	12.5:1
Fuel System	Electronic fuel injection
Ignition	Electronic
Transmission	6-speed
Front Tire	90/90-21
Lubrication	Wet sump
Clutch	Wet multi-disc
Final Drive	Chain
Front Suspension	41 mm upside-down fork
Rear Suspension	Monoshock
Front Brake	260 mm disc
Rear Brake	220 mm disc
