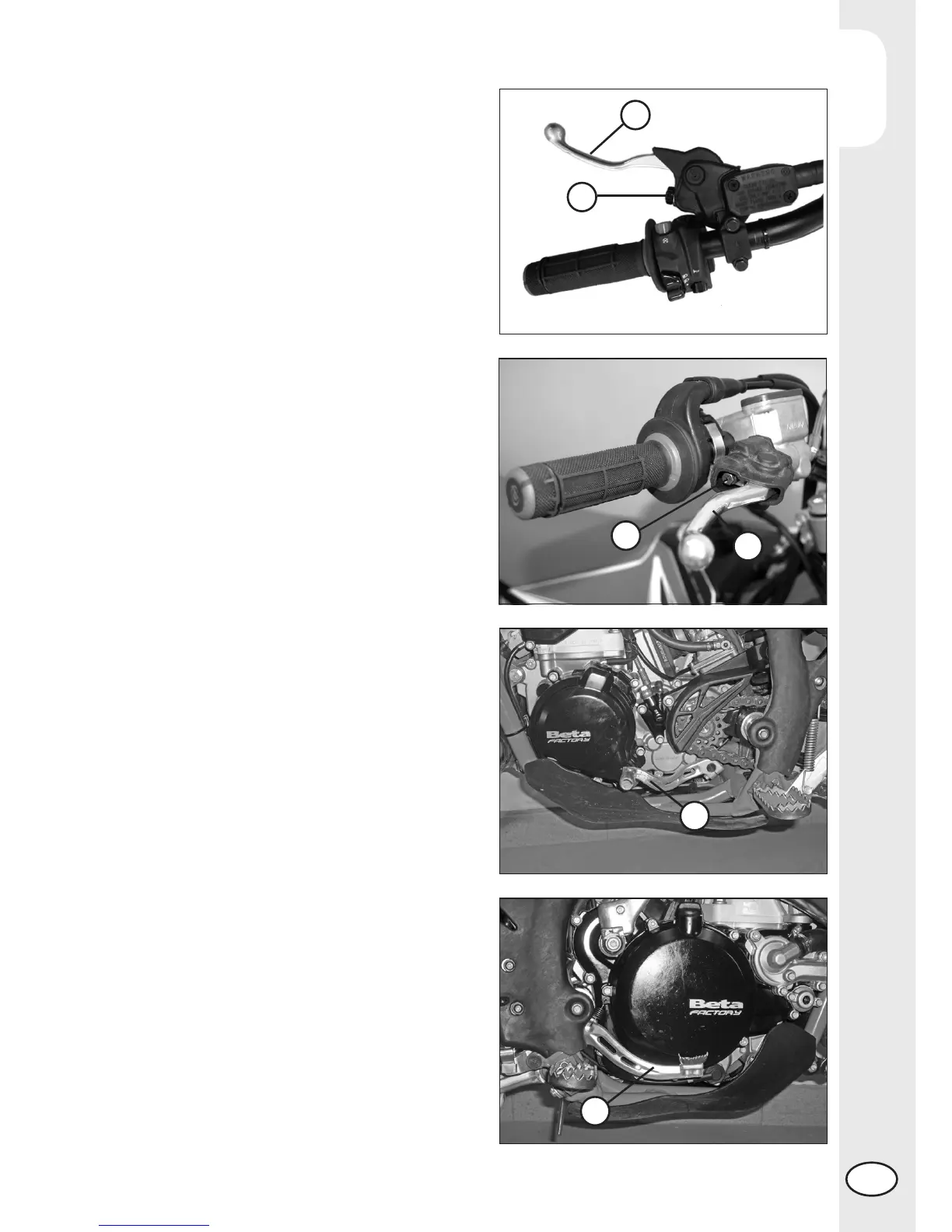

CONTROLS
CLUTCH LEVER
Clutch lever 1 is fitted to the left-hand side
of the handlebars. Screw A can be used
to alter the home position of the lever (see
Adjustments).
FRONT BRAKE LEVER
Front brake lever 2 is fitted to the right-hand
side of the handlebars. Screw B can be
used to adjust the home position of the
lever (see Adjustments).
GEARCHANGE LEVER
Gearchange lever 3 is fitted to the left side
of the engine.
The positions corresponding to the different
gears are shown in the figure.
The neutral position is between the 1
st
and
2
nd
gears.
BRAKE PEDAL
Brake pedal 4 is located in front of the
right-hand footrest.
The position of the pedal can be adjusted
to suit the requirements of the driver (see
Adjustments).
A
1
1
2
3
4
5
6
3
4
2
B
