3
CHECKS AND MAINTENANCE
41
GB
FORK OIL
Right/left-hand rod
The procedure for changing the oil in
the forks is provided only for information.
We recommend having the operation
performed by a BETAMOTOR authorized
workshop.

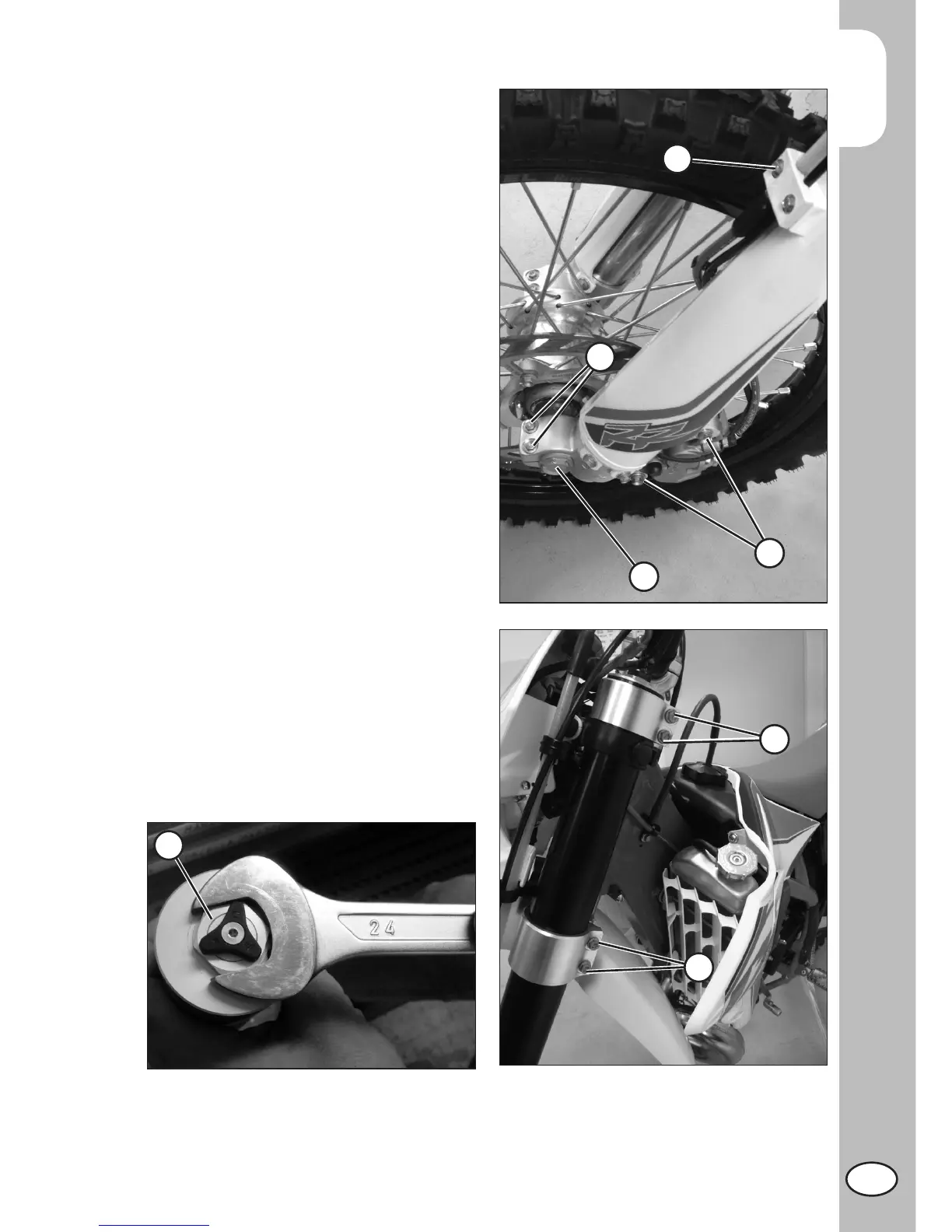

• Rest the motor on a central stand, lift it
making sure that it is stable.
• Remove the cable gland U-bolt A
• Remove the screws B that fix the brake
caliper to the left leg and remove the
brake caliper.
• Remove cap C, loosen the screws D,
slide the wheel pin out and remove the
front wheel.
• Loosen the screws E and F that block the
legs of the of the fork to the plate and
slide the fork legs out.
• Place the legs vertically with cap 1 facing
upwards. Loosen the upper cap 1.
C
A
B
D
F
E
1
