CHANGING THE GEAR AND CLUTCH
OIL

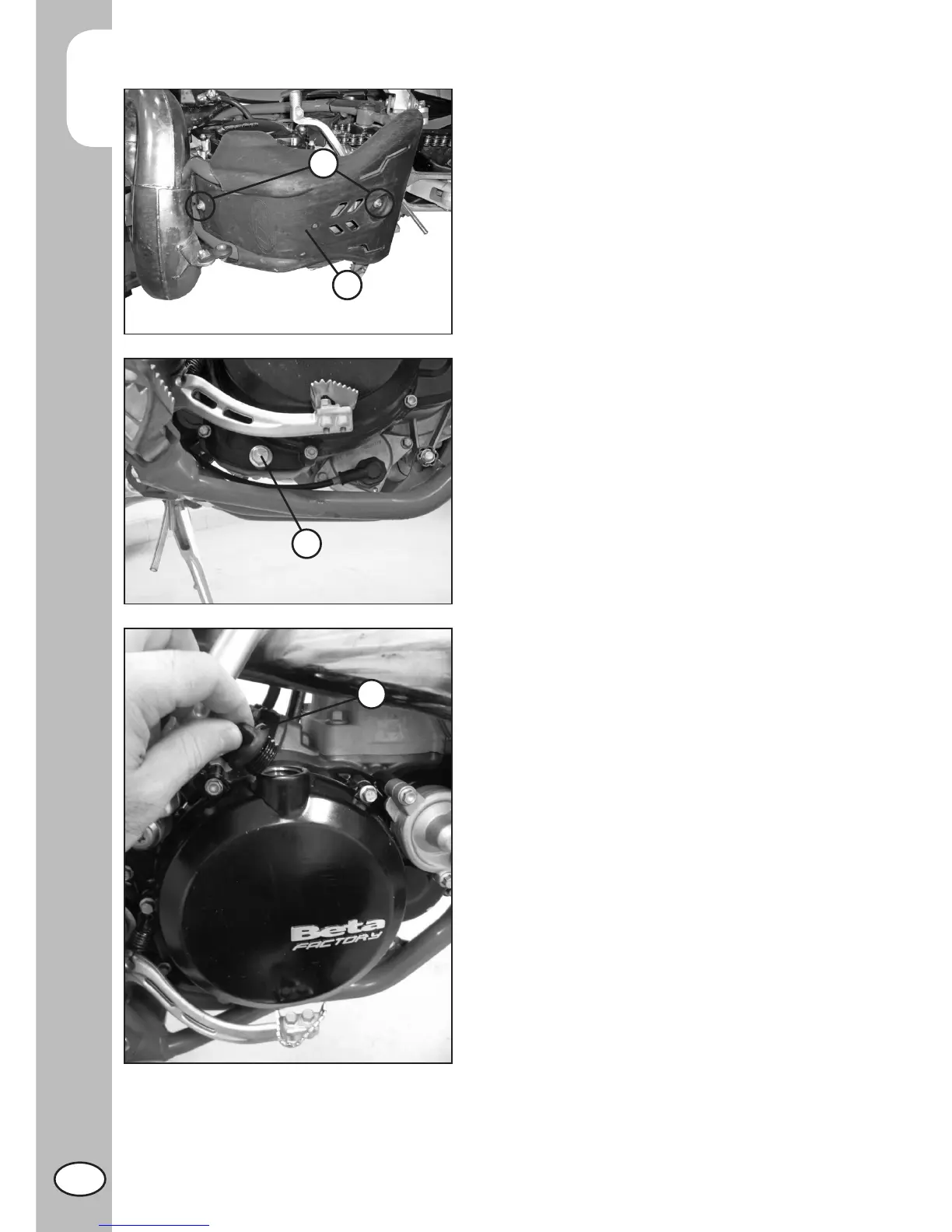

Before performing this operation, remove
the lower bumper 1 after unscrewing the
two screws 2 as shown in the picture.
The oil must be changed when the engine
is at operating temperature.
Park the motorbike on a flat surface, re-
move the drain plug 3 and collect the oil
in a vessel.
Thoroughly clean the screw and sealing
surface, put in screw 3 with the seal ring
and tighten at 20 Nm.
Remove the screw 4 closure from the co-
ver and introduce 850 ml of transmission
shift oil PANOLIN OFF ROAD 4T SYNTH
10W/40.
Under conditions with high engine tem-
peratures and intense clutch use (deep
sand and mud) it is recommended to use
an increased clutch/gearbox oil quantity
of 1000 ml.
Attach again the lower bump stop 1 and
attach it by the two screws 2. Tighten at
10Nm.
WARNING:
Used oil contains hazardous to the en-
vironment. For the replacement must be
prepared for disposal in compliance with
the law.
3
1
2
4
