Beta RR 2T 2013 - Wiring Diagram

1
GENERAL INFORMATION
25
GB

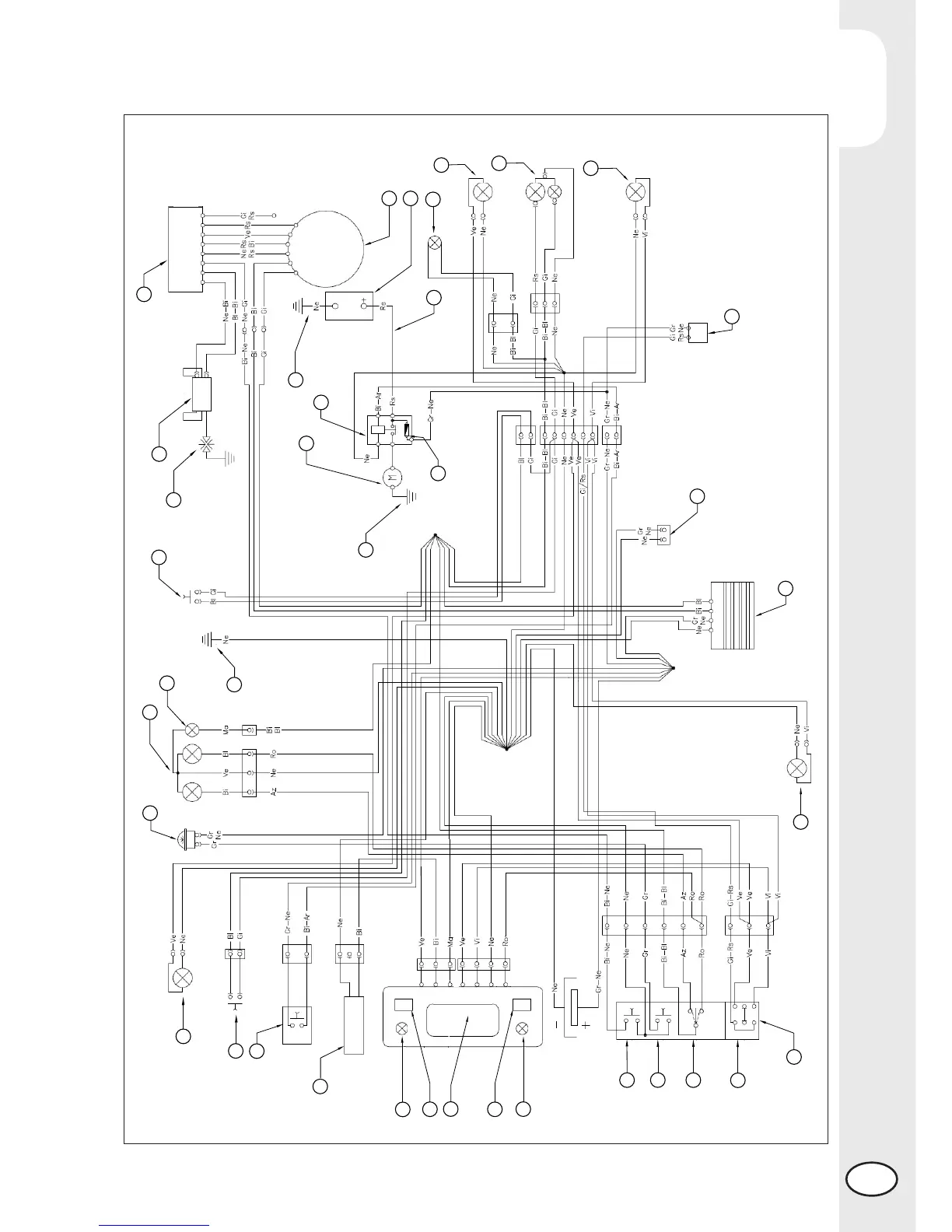

WIRING DIAGRAM RR 2T
RR 250 RR 300
Primary drive 28/70 28/70
Gear ratio 1
st
gear 12/31 12/31
Gear ratio 2
nd
gear 15/28 15/28
Gear ratio 3
rd
gear 19/28 19/28
Gear ratio 4
th
gear 20/24 20/24
Gear ratio 5
th
gear 27/27 27/27
Gear ratio 6
th
gear 28/24 28/24
Final drive chain
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26 27
28
29
30
31
32
33
34
35
36
37
38
