REPLACEMENTS
66
GB
A
B
REAR

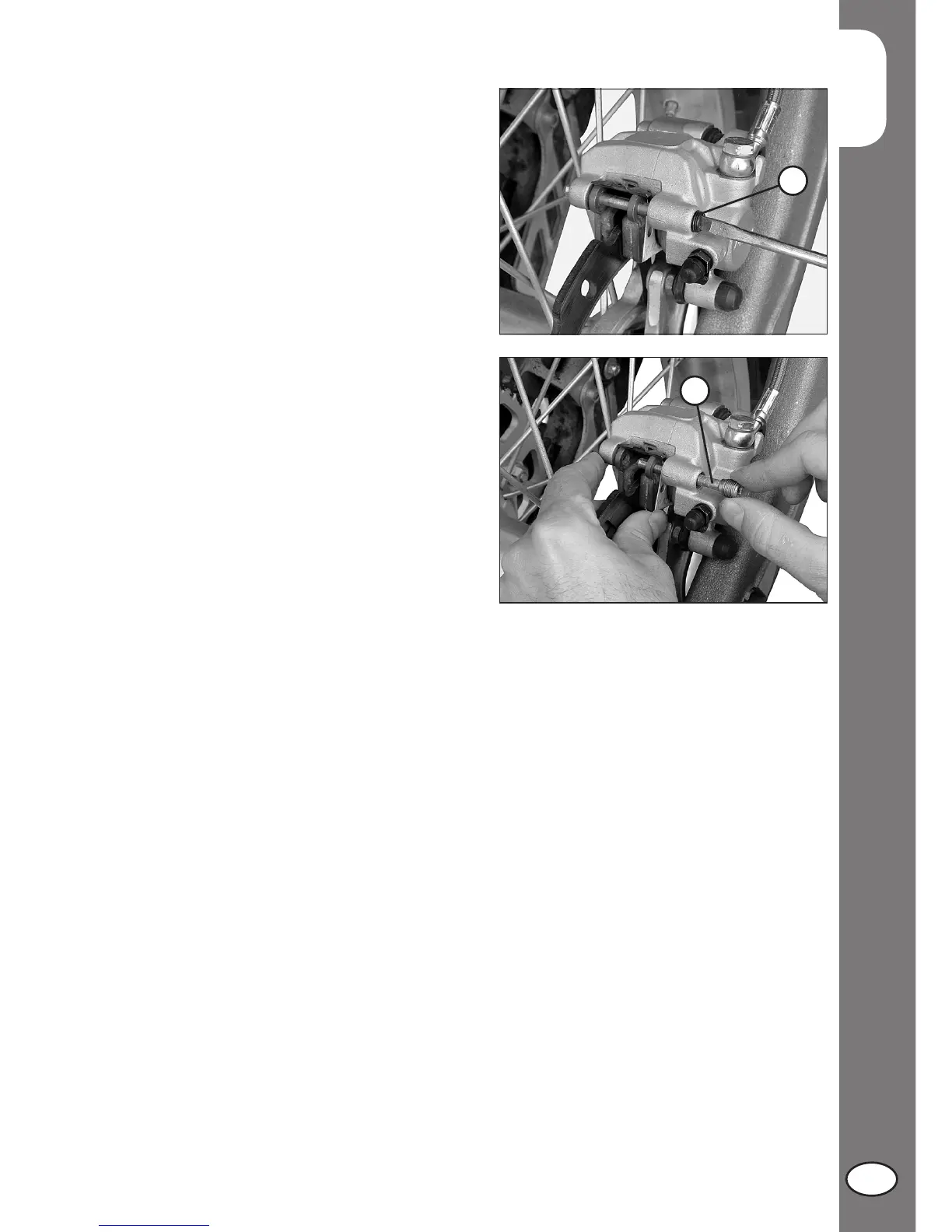

Follow these steps to replace the pads:
•Push the brake caliper towards the disc
so that the pistons reach their home
positions.
•Unscrew dowel A.
•Pull out pin B, while supporting the two
pads as shown in the figure.
•Remove the brake pads taking care not
to drop the leaf spring located above
the two pads.
•To reassemble, follow the reverse proce-
dure. When fitting the pads, ensure that
the leaf spring is properly in place.
WARNING
The brake disc must always be kept free
from oil and grease. An oily or greasy disc
strongly reduces the braking action.
After work has been carried out on the
braking system, pull the brake lever to
bring the pads into contact with the disc.
This will allow the correct pressure point to
be restored, thus ensuring proper operation
of the braking system.
